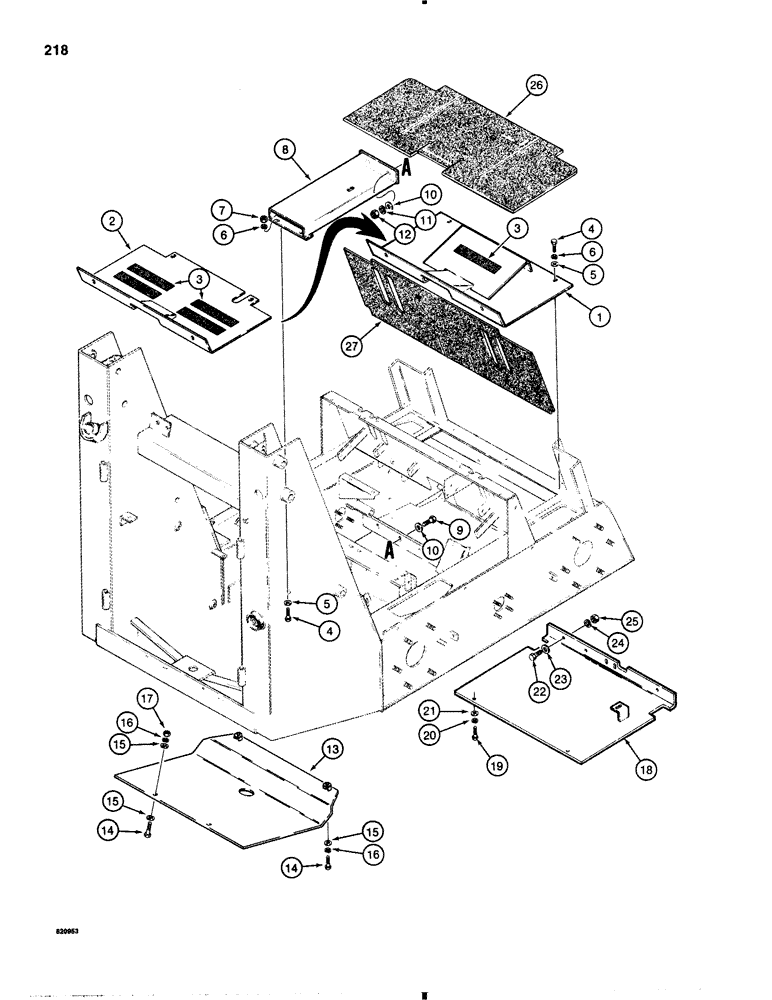

Запчасти Case 1845B (218) - FLOOR PLATES, FLOORMATS, AND ENGINE GUARDS (09) - CHASSIS/ATTACHMENTS

1

D70819

PLATE

floor, models without auxiliary hydraulics

1шт.

2

D70294

PLATE

floor, models with auxiliary hydraulics

1шт.

3

D55216

PAD,2" x 9"

PAD nonskid

1-4шт.

4

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

5

195-525

WASHER,3/8", SAE

flat, 3/8", plated

8шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

7

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

8

D67105

GUARD pump, not used with D69987 guard, item 18

2шт.

9

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

10

195-533

WASHER,1/2", SAE

flat, 1/2", plated

8шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

12

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

13

D82699

GUARD

rear

1шт.

REF. 13 THE TWO SQUARE NUT PART NUMBER IS 25-226 SUBS TO 224-2206 3/8 - 16UNC SQUARE

1шт.

14

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

15

195-525

WASHER,3/8", SAE

flat, 3/8", plated

6шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

18

D69987

PAN

GUARD engine, not used when D67105 pump guards item 8 are used

1шт.

19

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

21

195-525

WASHER,3/8", SAE

flat, 3/8", plated

2шт.

22

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

5шт.

23

195-533

WASHER,1/2", SAE

flat, 1/2", plated

5шт.

24

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

5шт.

25

129-105

NUT,Hex, 1/2" - 13, Gr 5

5шт.

26

D73164

FLOOR MAT

FLOORMAT front, noise control models

1шт.

27

D87365

FLOOR MAT

FLOORMAT seat support, includes decals, noise control models

1шт.
