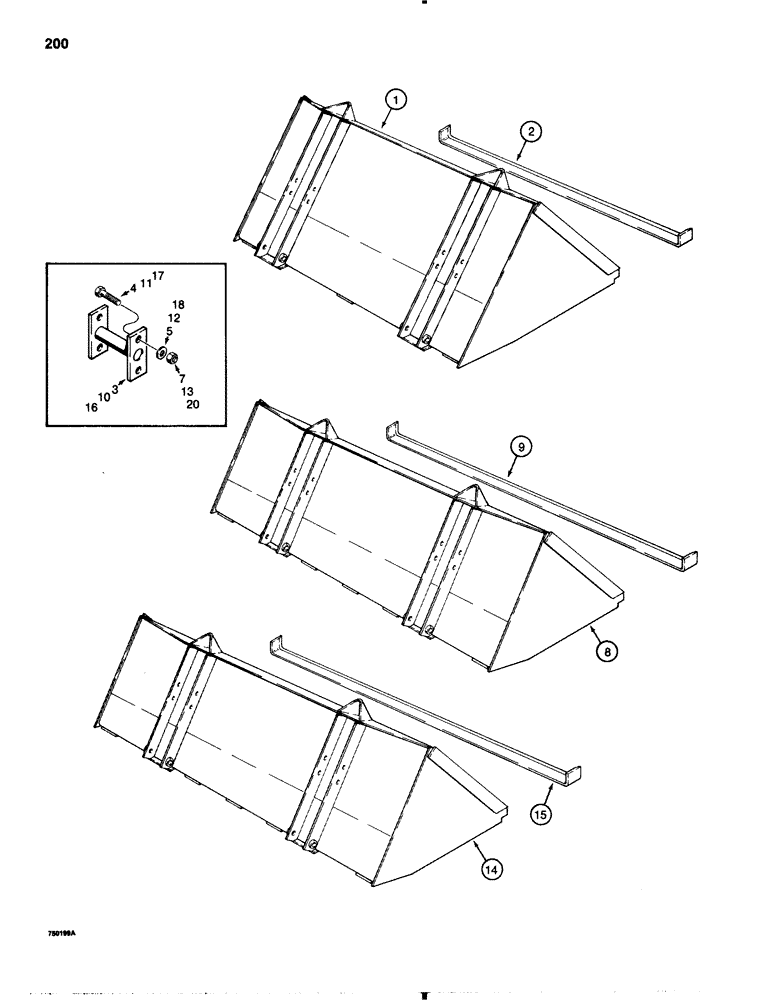

Запчасти Case 1845B (200) - SPECIAL PURPOSE BUCKETS, FERTILIZER AND GRAIN BUCKET, STOCKYARD BUCKET, SNOW AND LITTER BUCKET (09) - CHASSIS/ATTACHMENTS

D17935

BUCKET, 63", 1600 mm wide, machinery item, see Figure: 2 for ordering, fertilizer and grain bucket, Inc: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET fertilizer and grain

1шт.

2

D63750

EDGE, CUTTING

CUTTING EDGE bucket, fertilizer and grain bucket

1шт.

3

D71787

PIN

tool tach, fertilizer and grain bucket

2шт.

4

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Fertilizer and grain bucket Hex, 5/8"-11 x 1 1/2", G5, Full Thd

8шт.

5

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER special, fertilizer and grain bucket

8шт.

6

RESERVED, fertilizer and grain bucket

1шт.

7

129-107

NUT,5/8"-11, G5

Fertilizer and grain bucket 5/8"-11, G5

8шт.

D17933

BUCKET, 80", 2032 mm wide, machinery item, see Figure: 2 for ordering, stockyard bucket, Inc: Ref. 8 - 13

1шт.

8

NSS

NOT SOLD SEPARAT

BUCKET stockyard

1шт.

9

D67972

EDGE, CUTTING

CUTTING EDGE bucket, stockyard bucket

1шт.

10

D71787

PIN

tool tach, stockyard bucket

2шт.

11

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Stockyard bucket Hex, 5/8"-11 x 1 1/2", G5, Full Thd

8шт.

12

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER special, stockyard bucket

8шт.

13

129-107

NUT,5/8"-11, G5

Stockyard bucket 5/8"-11, G5

8шт.

D17934

BUCKET, 80", 2032 mm wide, machinery item, see Figure: 2 for ordering, snow and litter bucket, Inc: Ref. 14 - 20

1шт.

14

NSS

NOT SOLD SEPARAT

BUCKET snow and litte

1шт.

15

D67972

EDGE, CUTTING

CUTTING EDGE bucket, snow and litter bucket

1шт.

16

D71787

PIN

tool tach, snow and litter bucket

2шт.

17

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Snow and litter bucket Hex, 5/8"-11 x 1 1/2", G5, Full Thd

8шт.

18

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER special, snow and litter bucket

8шт.

19

RESERVED, snow and litter bucket

1шт.

20

129-107

NUT,5/8"-11, G5

Snow and litter bucket 5/8"-11, G5

8шт.
