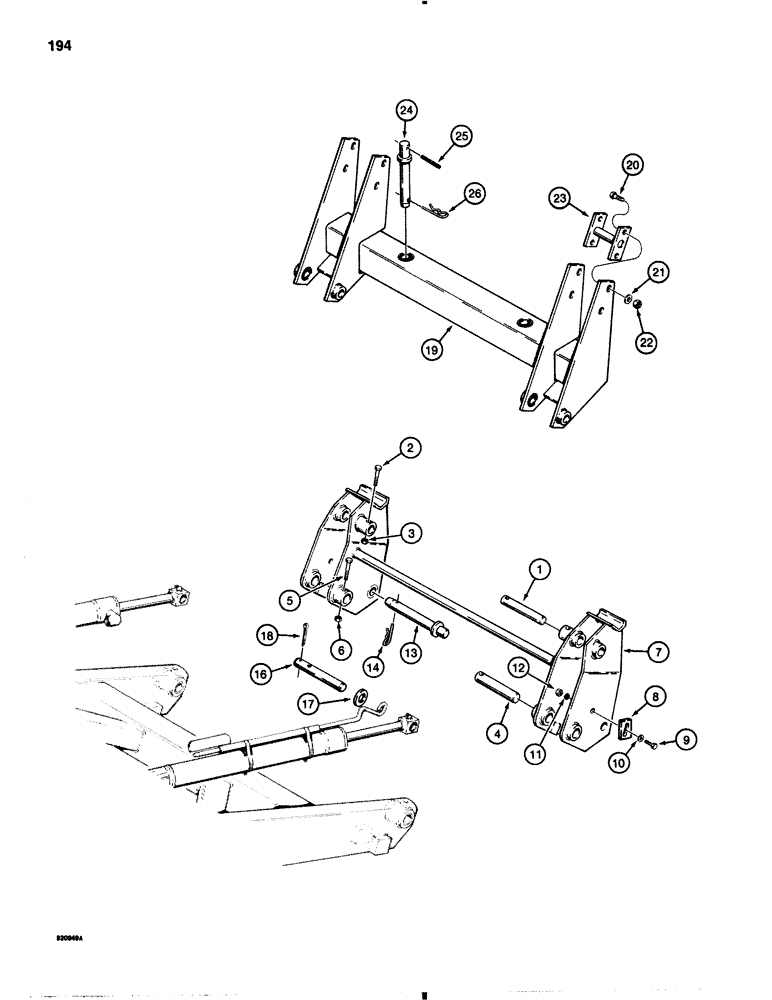

Запчасти Case 1845B (194) - LOADER ATTACHMENT BAR (09) - CHASSIS/ATTACHMENTS

1

D63571

PIN,25.4mm OD x 155.45mm L

models without bucket level sight gauge

2шт.

2

26-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

hex head, 3/8" - 16 NC x 2-1/4", grade 8

2шт.

3

131-666

LOCK NUT,3/8"-16, GB

NUT hex, self-locking, 3/8" - 16 NC, plated

2шт.

4

D63570

PIN,31.75mm OD x 155.45mm L

tool tach to loader arm

2шт.

5

26-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

2шт.

6

131-666

LOCK NUT,3/8"-16, GB

NUT hex, self-locking, 3/8" - 16 NC, plated

2шт.

7

D64689

TOOL

TACH loader arm

1шт.

8

T40044

WEDGE

BLOCK wedge

2шт.

9

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

10

195-525

WASHER,3/8", SAE

flat, 3/8", plated

2шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

13

D132172

PIN

tool, Serial Range: tach-bucket

2шт.

14

136-162

HAIR PIN COTTER,Int, 1/2" x .250"

HAIR PIN tool tach, pin retaining

2шт.

15

RESERVED

1шт.

16

D68784

PIN

models with bucket level sight gauge

1шт.

17

195-553

WASHER,1", SAE

flat, 1", plated

1шт.

18

132-342

COTTER PIN,5/32" x 1 3/4"

PIN, SPLIT (COTTER), 5/32" x 1 3/4"

1шт.

19

D76374

ADAPTER

BAR attachment

1шт.

20

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

8шт.

21

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER special

8шт.

22

129-107

NUT,5/8"-11, G5

8шт.

23

D71787

PIN

attachment bar

2шт.

24

T41081

PIN

lock, Inc: Ref. 25

2шт.

25

138-308

LOCK PIN,1/4" x 3", Slotted

Pin, 1/4" x 3", Slotted

2шт.

26

T40222

SPLIT PIN/SAFETY PIN

HAIR PIN special

2шт.

H673004 Tach. Wmt.

1шт.

H435299 Pin

1шт.
