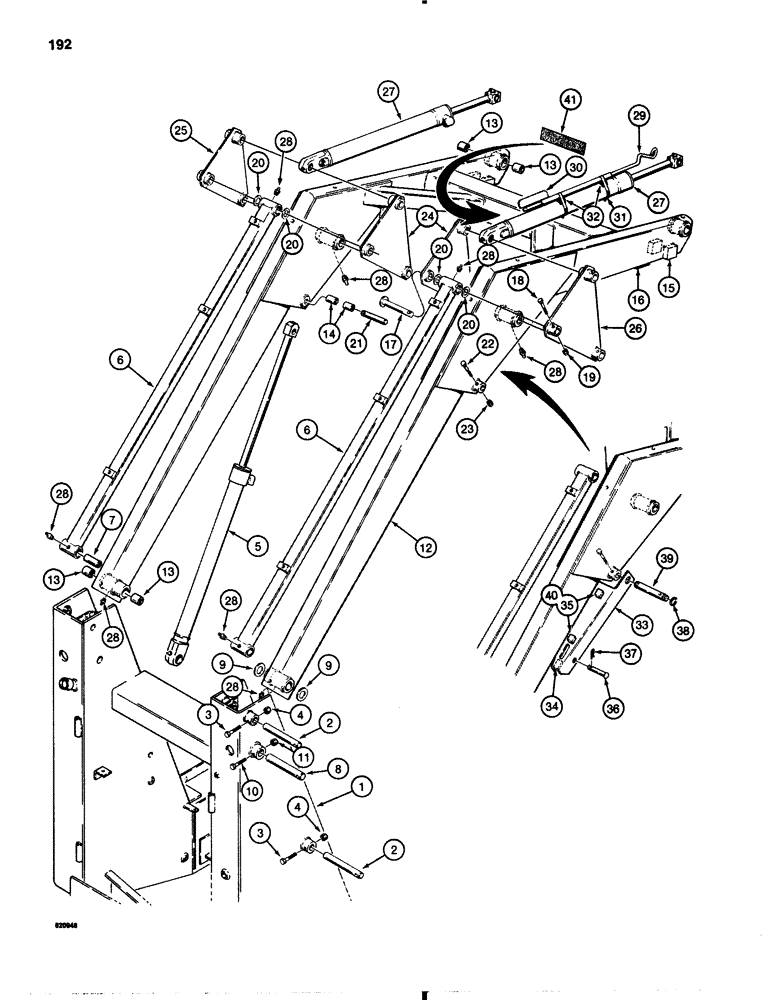

Запчасти Case 1845B (192) - LOADER LIFT FRAME (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

FRAME upright

1шт.

2

D63894

PIN

retaining

4шт.

3

26-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

hex head, 3/8" - 16 NC x 2-1/4", grade 8

4шт.

4

131-666

LOCK NUT,3/8"-16, GB

NUT hex, self-locking, 3/8" - 16 NC, plated

4шт.

5

REF

INSTRUCTION

CYLINDER loader lift, parts list Fig. 178

2шт.

6

D63689

ARM

self-leveling, replaces arm without tapped blocks on some machines, Inc: Ref. 7

2шт.

7

D51608

BUSHING,25.63mm ID x 34.92mm OD x 25.4mm L

arm ends

2шт.

8

D63895

PIN

lift, Serial Range: arm-upright

2шт.

9

195-2121

WASHER,1 5/16" x 2" x .065"

flat

1шт.

10

26-648

BOLT,Hex, 3/8" - 16 x 3", Gr 8

- hex head, 3/8" - 16 NC x 3", grade 8

2шт.

11

131-666

LOCK NUT,3/8"-16, GB

NUT hex, self-locking, 3/8" - 16 NC, plated

2шт.

12

D90319

ARM, LIFT

ARM lift, Inc: Ref. 13 - 15

1шт.

13

D33827

BUSHING,31.98mm ID x 41.27mm OD x 31.8mm L

1-1/4", 32 mm ID

8шт.

14

D51608

BUSHING,25.63mm ID x 34.92mm OD x 25.4mm L

1", 25 mm ID

4шт.

15

D63633

BLOCK

stop, welds to upper lift arm

4шт.

16

T41308

SPACER lift arm, welds to upper lift arm

1шт.

17

D68829

PIN

retaining

6шт.

18

26-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

hex head, 3/8" - 16 NC x 2-1/4", grade 8

6шт.

19

131-666

LOCK NUT,3/8"-16, GB

NUT hex, self-locking, 3/8" - 16 NC, plated

6шт.

20

195-2105

WASHER,1 1/16" x 1 3/4" x .065"

flat, special

1шт.

21

D67387

PIN

retaining, arm to lift cylinder

2шт.

22

26-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

hex head, 3/8" - 16 NC x 2-1/4", grade 8

2шт.

23

131-666

LOCK NUT,3/8"-16, GB

NUT hex, self-locking, 3/8" - 16 NC, plated

2шт.

24

D63639

PLATE

self-leveling, inner, service with D121049 plate which includes D120889 warning decal

2шт.

25

D63638

PLATE

self-leveling, left-hand outer

1шт.

26

D63783

PLATE

self-leveling, right-hand outer

1шт.

27

REF

INSTRUCTION

CYLINDER loader bucket, parts list Figure: 180

2шт.

28

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING straight, 1/8" NPT

8шт.

29

D68783

ROD

indicator

1шт.

30

D68782

ELECTRICAL GAUGE

GAUGE sight, bucket

1шт.

31

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP worm screw type

2шт.

32

D38648

BLOCK

SUPPORT rod, rubber

2шт.

33

D87884

STAY

STRUT lift arm support

1шт.

34

D89804

STRIP

rubber, strut

1шт.

35

D79692

PAD

strut, lift arm

2шт.

36

D79998

PIN

strut, lift arm

1шт.

37

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080", Strut

1шт.

38

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

RETAINING RING pin

2шт.

39

D87883

PIN

retaining, lift cylinder and strut

1шт.

40

345-44

ADHESIVE

spray, for attaching rubber pads to metal surfaces, not shown

1шт.

41

D55216

PAD,2" x 9"

PAD nonskid, loader frame

1шт.
