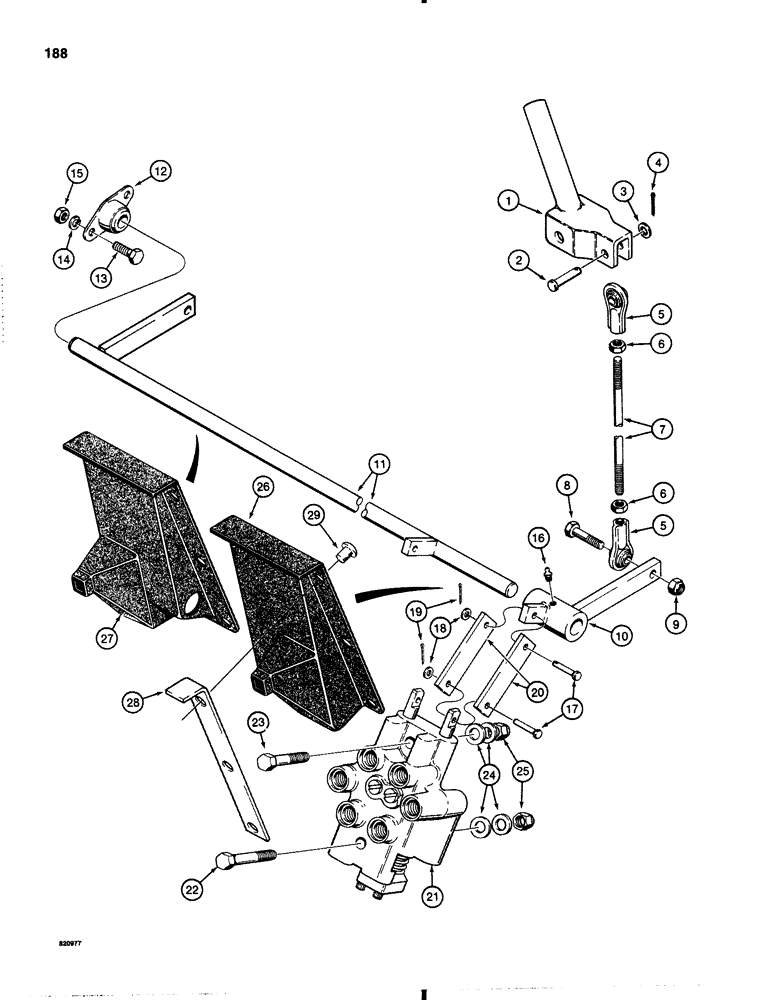

Запчасти Case 1845B (188) - LOADER CONTROLS (08) - HYDRAULICS

1

D94361

HANDLE

left-hand control, not shown

1шт.

1

D94360

HANDLE

right-hand control, without horn

1шт.

1

D94175

HANDLE

right-hand control, with horn, not shown

1шт.

See Figure 108 if horn is used.

1шт.

2

141-12

CLEVIS PIN,3/8" x 1 5/16"

3/8"

2шт.

3

195-2028

WASHER,.391" x 5/8" x .065"

flat, 3/8", special

2шт.

4

132-331

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

2шт.

5

D59922

BALL JOINT

female, 3/8"

4шт.

6

129-123

NUT,3/8"-24, G5

4шт.

7

D64194

ROD

control

2шт.

8

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

9

131-1105

LOCK NUT,5/8"-11, GB

NUT hex, self-locking, 3/8" - 16 NC, plated

2шт.

10

D68785

CRANK

BELLCRANK loader control

1шт.

11

D73083

SHAFT

loader control

1шт.

12

L48412

FLANGED BEARING

BEARING flange

2шт.

13

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING straight, 1/8" NPT

1шт.

17

D50559

CLEVIS,9.53mm OD x 28.32mm L

PIN valve link

4шт.

18

195-518

WASHER,1/4", SAE

flat, 1/4", plated

4шт.

19

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

4шт.

20

D59934

LINK

, Serial Range: valve-bellcrank

4шт.

21

REF

INSTRUCTION

CONTROL VALVE loader, two spool, parts list Figure: 168

1шт.

22

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

1шт.

23

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

24

195-521

WASHER,5/16", SAE

flat, 5/16", plated, Used as a spacer

4шт.

25

131-665

LOCK NUT,5/16"-18, GB

NUT hex, self-locking, 5/16" - 18 NC, plated

2шт.

26

D75764

BOOT

COVER control lever, right-hand, used on models with noise control

1шт.

27

D75765

BOOT

COVER control lever, left-hand, used on models with noise control

1шт.

28

D76869

STRIP

cover mounting, used with items 26 and 27

4шт.

29

151-538

RIVET,Pop, 3/16" x .575"

POP RIVET, 3/16", used with items 26 and 27

12шт.
