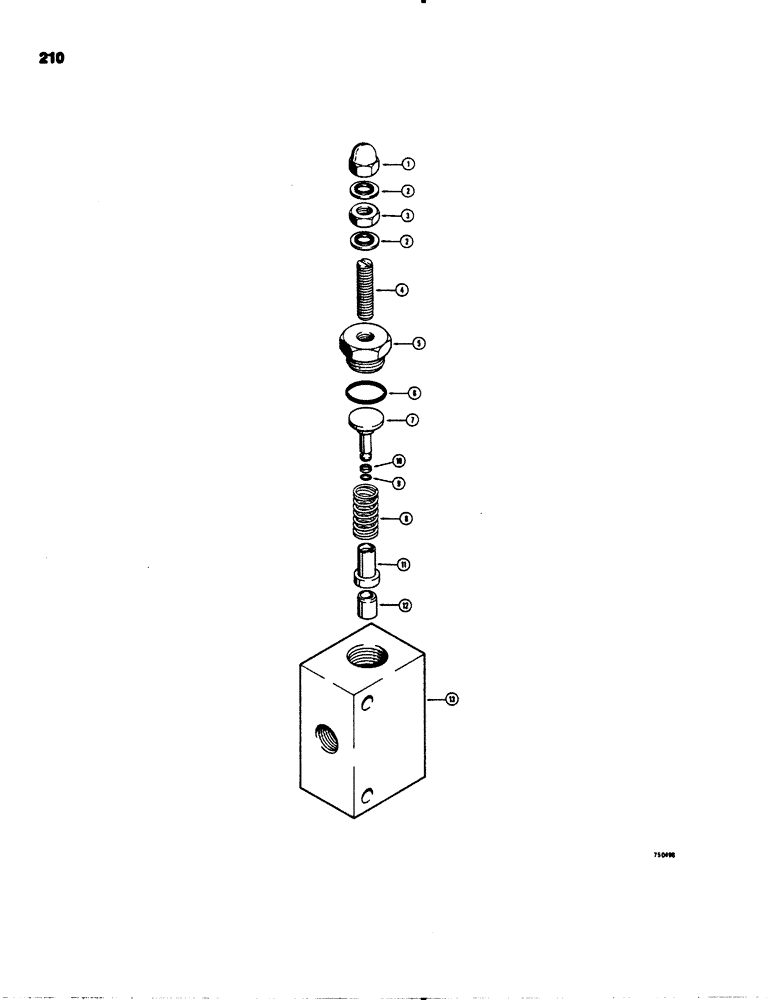

Запчасти Case 1845 (210) - D64493 RELIEF VALVE (35) - HYDRAULIC SYSTEMS

D64493

VALVE

RELIEF VALVE Includes Ref. 1-13

1шт.

1

129-514

CROWN NUT,Low, 5/16" - 24

acorn, 5/16" - 24 NF

1шт.

2

D26270

WASHER, SEALING

WASHER seal

2шт.

3

25-155

JAM NUT,Jam, 5/16"-24, G5

hex lock, 5/16" - 24 NF

2шт.

4

176-292

SCREW,Sl Hdls, 5/16" - 24 x 1 1/4", Flat Pt

SET 5/16" - 24 NF x 1/4"

1шт.

5

D66437

CAP

PLUG special, Includes Ref. 6

1шт.

7

D37073

GUIDE

spring

1шт.

8

D37148

SPRING

plunger

1шт.

9

D40356

O-RING

1шт.

10

D40357

RING

teflon

1шт.

11

D37074

PLUNGER

valve

1шт.

12

D37075

SEAT

plunger

1шт.

13

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
