Запчасти Case 1845 (190) - PARKING LATCH, LATE PRODUCTION - SHAFT AND BRACKET (33) - BRAKES & CONTROLS

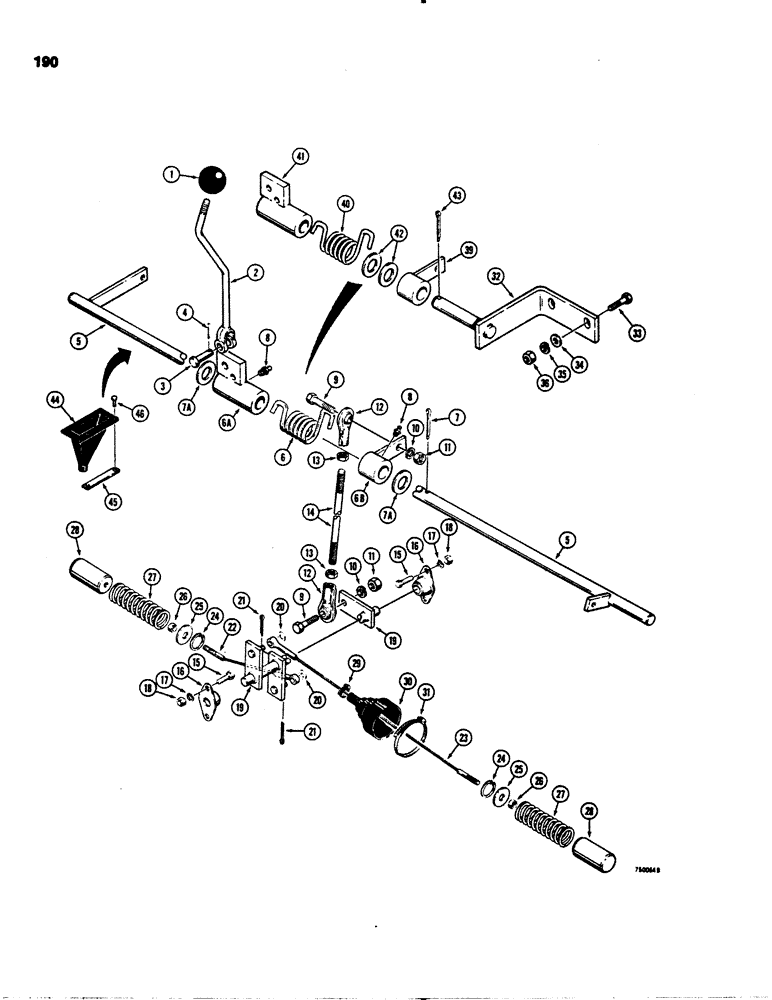

Схема запчастей Case 1845 - (190) - PARKING LATCH, LATE PRODUCTION - SHAFT AND BRACKET (33) - BRAKES & CONTROLS
35
25
23
7
18
31
28
26
7a
11
16
6a
20
43
1
4
5
9
16
7a
46
20
24
34
5
41
8
22
39
14
2
42
6b
17
12
30
17
27
28
15
29
33
25
36
10
9
10
40
21
44
19
45
21
26
15
13
12
24
6
11
8
18
27
3
32
13
19

Артикул

Название

Примечание

Количество

1

D60437

KNOB

parking lever

1шт.

2

D64233

LEVER

parking

1шт.

3

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

4

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

5

D72062

SHAFT ASSY.

SHAFT ASSEMBLY, control, early production, see Figure 228 for mounting, Includes Ref. 6-7A

1шт.

6

NSS

NOT SOLD SEPARAT

SPRING lever

1шт.

6a

NSS

NOT SOLD SEPARAT

LEVER control shaft

1шт.

6b

NSS

NOT SOLD SEPARAT

LEVER control shaft

1шт.

7

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

7a

NSS

NOT SOLD SEPARAT

WASHER

2шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING straight, 1/8" NPT

1шт.

9

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

25-106

NUT,3/8"-16, G5

hex, 3/8" - 16 NC

2шт.

12

D59922

BALL JOINT

female, 3/8"

2шт.

13

25-116

NUT,Hex, 3/8"-24, G5

hex, 3/8" - 24 NF

2шт.

14

D70247

ROD

brake, used with D72062 shaft

1шт.

14

D72976

ROD

brake, used with D72975 shaft and bracket

1шт.

15

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

16

D63966

FLANGED BEARING,0.508" ID x 1.12" OD x 0.56"

BEARING flange style

2шт.

17

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

18

25-104

NUT,1/4"-20, G5

4шт.

19

D64231

DIPPER

BELLCRANK

1шт.

20

195-18

WASHER,1/4"

plain, 1/4"

2шт.

21

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

22

D64143

CABLE

brake, left hand

1шт.

23

D64142

CABLE

brake, right hand

1шт.

24

A37550

SNAP RING,1.00", Int, #100

Ring, Snap, 1.00", Int, #100

2шт.

25

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

26

25-144

JAM NUT,Jam, 1/4"-20, G5

hex, lock, 1/4" - 20 NC

2шт.

27

D64141

SPRING

brake

2шт.

28

D64228

PIN,25.45mm OD x 53.34mm L

brake

2шт.

29

214-335

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP worm screw type

2шт.

30

D70018

BOOT

rubber

2шт.

31

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

32

D72975

BRACKET

SHAFT AND BRACKET control, late production - shaft and bracket

1шт.

33

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Late production - shaft and bracket Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

34

95-6

WASHER,3/8"

- flat, , late production - shaft and bracket 3/8"

2шт.

35

92-6

LOCK WASHER,3/8"

late production - shaft and bracket 3/8"

2шт.

36

25-106

NUT,3/8"-16, G5

hex, 3/8" - 16 NC, late production - shaft and bracket

2шт.

37

RESERVED, late production - shaft and bracket

1шт.

38

RESERVED, late production - shaft and bracket

1шт.

39

D70242

LEVER

control, late production - shaft and bracket

1шт.

40

D71942

SPRING

lever, late production - shaft and bracket

1шт.

41

D72026

LEVER

control, late production - shaft and bracket

1шт.

42

195-2087

WASHER,0.81" ID x 1.12" OD x 0.15" Thk

flat, spacer, late production - shaft and bracket

2шт.

43

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), , Late production - shaft and bracket 1/8" x 1"

1шт.

44

D75731

BOOT

COVER parking latch, noise reduction, late production - shaft and bracket

1шт.

45

D76875

LOCKING TAB

TAB cover mounting, late production - shaft and bracket

2шт.

46

151-538

RIVET,Pop, 3/16" x .575"

POP RIVET 3/16", late production - shaft and bracket

4шт.

Выбрано товаров: 50
