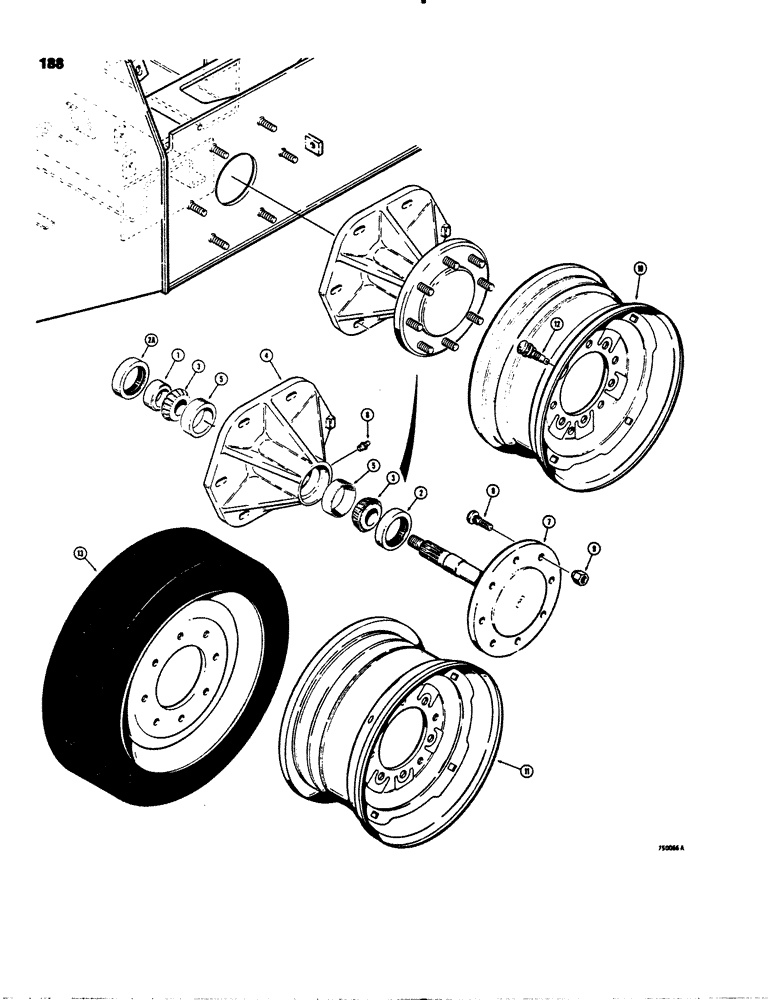

Запчасти Case 1845 (188) - AXLES AND WHEELS (14) - MAIN GEARBOX & DRIVE

1

D64018

SPACER,50.85mm ID x 63.58mm OD x 18.11mm L

axle

4шт.

2

D63674

SEAL,63.5mm ID x 89.15mm OD x 11.13mm Thk

grease, outer

4шт.

2a

R24000

SEAL

grease, inner

4шт.

3

D63653

ROLLER BEARING,2.0005" ID

CONE bearing

8шт.

D63672

HUB

ASSEMBLY, axle, Includes Ref. 4-6

4шт.

Part number D63672 subs to 222930A1 hub assembly, axle, the assembly includes 1 axle hub, 2 cup bearings, and 1 grease fitting. PA-TSG 9-1-99

1шт.

4

NSS

NOT SOLD SEPARAT

HUB axle

1шт.

5

R32216

BEARING CUP,82 mm OD x 17 mm

CUP bearing

2шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING straight, 1/8" NPT

1шт.

D67818

AXLE

ASSEMBLY, Includes 1 axle and 8 wheel bolt studs. PA-TSG 9-1-99, Includes Ref. 7-8

4шт.

7

NSS

NOT SOLD SEPARAT

AXLE

1шт.

8

D72157

WHEEL BOLT

BOLT press in, 9/16" - 18 NF

8шт.

9

G49041

WHEEL NUT

hex, 9/16" - 18 NF

32шт.

10

D67871

WHEEL

RIM wheel, for 7.50 x 16" tire

4шт.

11

D67136

WHEEL

RIM wheel, for 12.00 x 16.5" tire

4шт.

12

D48692

VALVE

ASSEMBLY, stem

4шт.

13

MACHITEM

WHEEL 6.50" x 16" Duro cushion, solid rubber

4шт.

14

REF

INSTRUCTION

CHAIN tire, not illustrated

4шт.

B93175 Wheel Bearing Kit consists of one piece Ref. 2, D63674 seal, one piece Ref. 2A, R24000 seal, two pieces Ref. 3, D63653 cone and two Pieces Ref. 5, R32216 cup, one kit per side, 3/3/99 BW CAM

1шт.

Frame bolt studs, part number E16592, stud is 1/2-20 NF x 1 7/8".

1шт.
