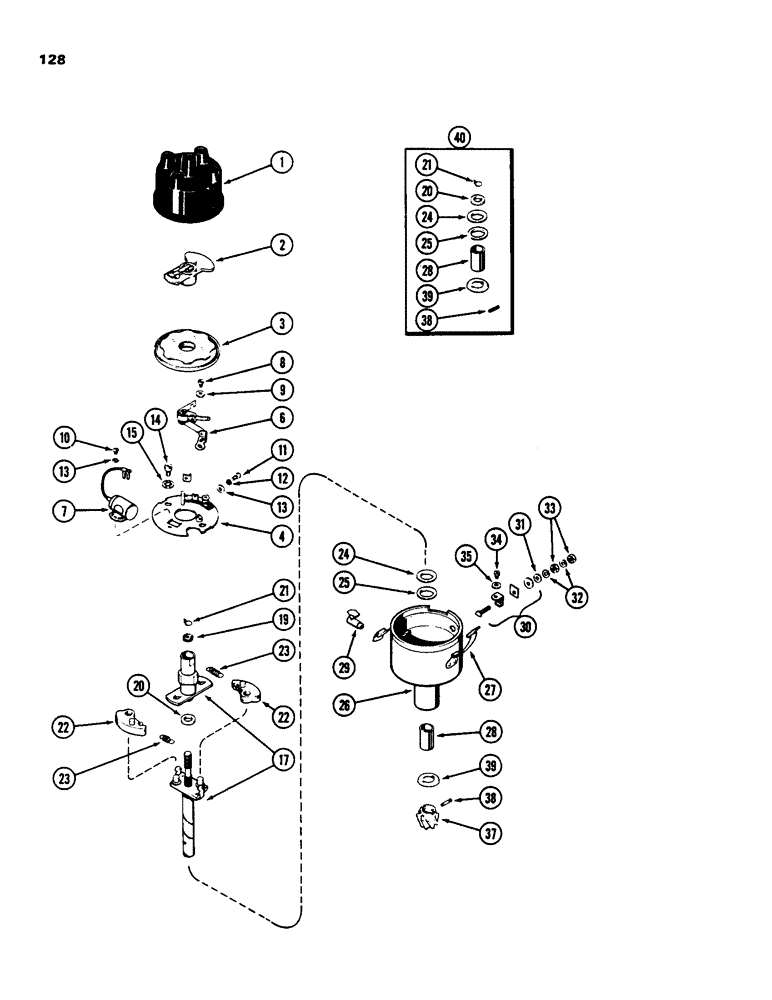

Запчасти Case 1845 (128) - A38970 DISTRIBUTOR, (159) SPARK IGNITION ENGINE (10) - ENGINE

A38970

DISTRIBUTOR

ASSEMBLY, Prestolite #IAD-6003-2K, Includes Ref. 1-35 and P/N A40323

1шт.

1

A8368

CAP

ASSEMBLY, with carbon brush and spring

1шт.

2

A8369

ROTOR

ASSEMBLY, contact

1шт.

3

A25194

PLATE

COVER ASSEMBLY, breaker plate, with dust seal

1шт.

4

A25196

PLATE

ASSEMBLY, breaker, Includes P/N A40929 and Ref. 7-13

1шт.

A40929

KIT

POINT AND CONDENSER SET, Includes Ref. 6

1шт.

6

NSS

NOT SOLD SEPARAT

POINT SET

1шт.

7

NSS

NOT SOLD SEPARAT

CONDENSER

1шт.

8

177-72

SCREW points, fillister head, #8-32 x 3/16"

1шт.

9

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

10

177-56

SCREW condenser, fillister head, #6-32 x 3/16"

1шт.

11

171-216

SCREW,Sl Flat Hd, #6 - 32 x 5/16"

clamp, flat head, #6-32 x 5/16"

1шт.

12

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

1шт.

13

195-6

WASHER,#6

5/32" x 5/16" x 1/32", 3.97 mm x 7.94 mm x 0.94 mm

2шт.

14

177-94

SCREW,Sl Fil Hd, #10 - 32 x 5/16"

breaker plate, fillister head, #10-32 x 5/16"

2шт.

15

193-26

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

2шт.

17

A42817

CAMSHAFT

ASSEMBLY, Includes P/N A42818 and Ref. 21-23

1шт.

A42818

KIT

WICK KIT oiler, Includes Ref. 19-20

1шт.

19

NSS

NOT SOLD SEPARAT

WICK oiler

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER cam spacer, see Ref. 40

1шт.

Part of bearing kit A47694

1шт.

21

A25180

RING, SNAP

RING oil wick and cam retaining

1шт.

Part of bearing kit A47694

1шт.

22

A25198

WEIGHT

governor

2шт.

23

A25208

SET

SPRING SET governor weight, set of 2

1шт.

24

A24752

WASHER

thrust, inner, see Ref. 40

1шт.

Part of bearing kit A47694

1шт.

25

124753

WASHER thrust, outer, see Ref. 40

1шт.

Part of bearing kit A47694

1шт.

26

NSS

NOT SOLD SEPARAT

BASE distributor body

1шт.

27

A42815

PACKAGE

CLAMP ASSEMBLY, package of 2

1шт.

28

NSS

NOT SOLD SEPARAT

BEARING body, order Ref. 40

1шт.

Part of bearing kit A47694

1шт.

29

A24887

OILER camshaft bearing

1шт.

30

A45242

BUSHING

TERMINAL STUD KIT

1шт.

31

195-5

WASHER

terminal stud, #10 flat

1шт.

32

92-3

LOCK WASHER,#10

WASHER, LOCK, , Terminal stud #10

2шт.

33

129-27

NUT,Hex, #10 - 32

terminal stud, hex #10-32

2шт.

34

174-56

SCREW connector, round head, #6-32 x 3/16"

1шт.

35

87276

LOCK WASHER,3.58mm ID x 6.35mm OD x 0.79mm Thk

#6

1шт.

A40323

GEAR

KIT distributor drive, Includes Ref. 37-39

1шт.

37

NSS

NOT SOLD SEPARAT

GEAR drive

1шт.

38

138-56

LOCK PIN,1/8" x 11/16", Slotted

PIN, , Gear to shaft 1/8" x 11/16", Slotted

1шт.

Part of bearing kit A47694

1шт.

39

A25200

WASHER

thrust, drive gear, see Ref. 40

1шт.

Part of bearing kit A47694

1шт.

40

A47694

BEARING

KIT Includes Refs.20, 21, 24, 25, 28, 38 and 39

1шт.
