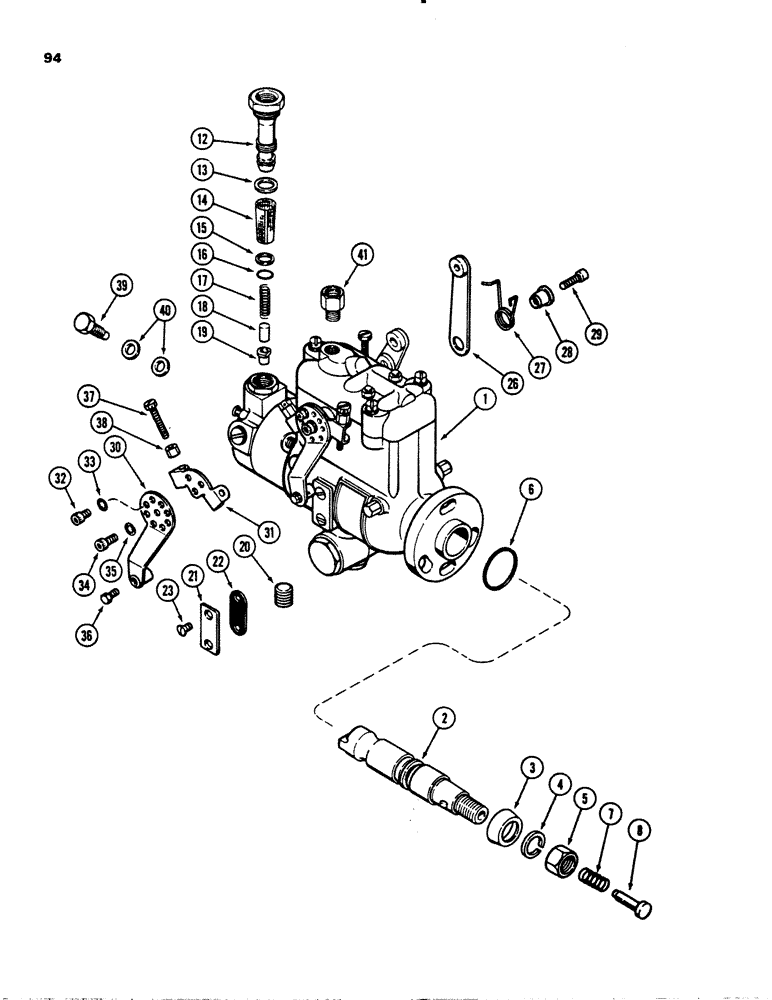

Запчасти Case 1845 (094) - A135874 INJECTION PUMP, (188) DIESEL ENGINE (10) - ENGINE

1

A135874

PUMP

ASSEMBLY, fuel injection, H.M.S. No. DBGFCC431-54AJ, Includes Ref. 2-40

1шт.

2

A44710

SHAFT

ASSEMBLY, drive, with pin

1шт.

3

R14711

SEAL

drive shaft

1-2шт.

4

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

5

25-119

NUT,9/16"-18, G5

jam, 9/16" NF hex

1шт.

6

74244

SEAL,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

SEAL pilot tube

1шт.

7

G48502

SPRING

thrust, pump shaft,1-3/16" free length, 30.16 mm

1шт.

8

A44653

PLUNGER

thrust spring

1шт.

12

A43869

SLEEVE

end plate

1шт.

13

51200280

SEAL

end plate sleeve

1шт.

14

A43870

FILTER, FUEL

FILTER element

1шт.

15

A43871

SEAL

element, 3/8" x 1/2" x 1/16", 9.52 mm x 12.7 mm x 1.59 mm

1шт.

16

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Sleeve

1шт.

17

A43867

SPRING

regulating, 21/32" free length, 16.67 mm

1шт.

18

73621

PISTON

regulating

1шт.

19

A43868

SEAL

regulating piston, rubber

1шт.

20

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

End plate Hex Soc, 1/4"-18 NPTF

1шт.

21

73452

COVER

timing window

1шт.

22

51200272

GASKET

timing window cover

1шт.

23

51200263

SCREW

timing window cover

2шт.

26

G45338

ARM

throttle

1шт.

27

G48505

SPRING

throttle arm

1шт.

28

G49621

RETAINER

throttle arm spring

1шт.

29

165-124

HEX SOC SCREW,Prev Torque, #10 - 32 x 3/4"

SCREW throttle arm

1шт.

30

G45337

ARM

shut off

1шт.

31

NSS

NOT SOLD SEPARAT

LEVER shut off

1шт.

32

165-1

SCREW,#8 x 1/4"

position, shut off arm

1шт.

33

193-91

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, , Position screw Int Tooth, #8

1шт.

34

165-30

HEX SOC SCREW,#10 - 32 x 3/8"

SCREW retaining, shut off arm

1шт.

35

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, , Retaining screw Int Tooth, #10

1шт.

36

163-7

SCREW,Sl Hex, #8 - 32 x 3/8"

pivot

1шт.

37

G49088

ADJUSTMENT SCREW,#10 - 32 x 1.781"

adjusting high idle, slotted head, #10-32 x 1-3/4"

2шт.

38

51200274

NUT

lock, high idle adjusting screw

2шт.

39

73613

SCREW

connector, injection tubes

4шт.

40

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER connector screw, 3/8" x 1/2" x 1/16", 9.52 mm x 12.7 mm x 1.59 mm

8шт.

41

A47066

COUPLING

CONNECTOR ASSEMBLY, return line

1шт.

Contains a glass check ball.

1шт.
