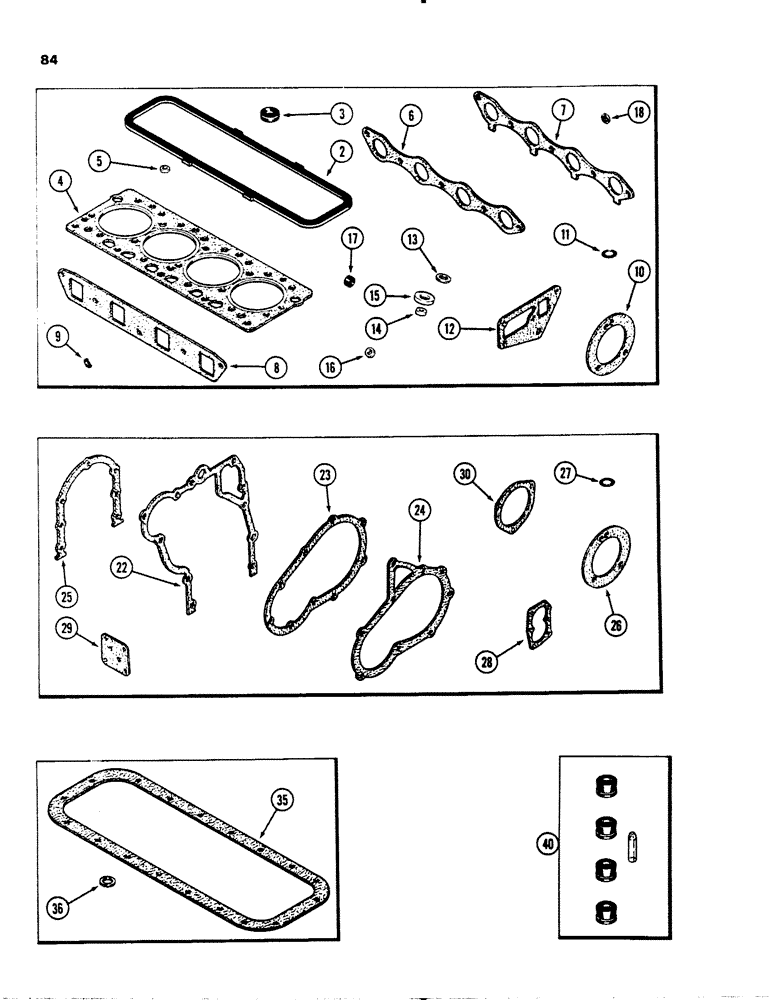

Запчасти Case 1845 (084) - ENGINE GASKET KITS, (188) DIESEL ENGINE, VALVE GRIND KIT, CYLINDER BLOCK KIT, OIL PAN KIT (10) - ENGINE

A155589

GASKET KIT

valve grind, Includes Ref. 2-18

1шт.

For complete engine overhaul, order 1-A43198 and 1-A44758

1шт.

2

A43030

GASKET,3.05mm Thk

valve cover

1шт.

3

A142098

GROMMET

valve cover studs, rubber

2шт.

4

A148745

CYLINDER HEAD GASKET

cylinder head

1шт.

5

G46851

SEAL

valve stem, rubber, see Ref. 40

8шт.

6

G46872

MANIFOLD GASKET

exhaust manifold, without turbocharger

1шт.

7

A155137

GASKET

exhaust manifold, with turbocharger, not used this application

1шт.

8

G46871

GASKET

intake manifold

1шт.

9

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

manifold studs, 3/8" x 9/16" x 3/32", 9.52 mm x 14.29 mm x 2.38 mm

3шт.

10

A38083

GASKET

water pump

1шт.

11

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

water pump body, 3/4" x 1" x 1/8", 19.05 mm x 25.4 mm x 3.17 mm

1шт.

12

A38084

GASKET,1.27mm Thk

timing gear cover, upper

1шт.

13

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER injection, Serial Range: lines-pump

8шт.

14

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

carbon stop, used with pencil injectors

4шт.

15

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

sealing, used with pencil injectors

4шт.

16

G49068

GASKET

injector nozzle seat, not used this application

4шт.

17

222-101

SLEEVE,3/16" Tube

for , 4.76 mm, not used this application 3/16" Tube

4шт.

17

222-103

SLEEVE,5/16" Tube

(7.94 mm) (Not used this application) 5/16" Tube

4шт.

18

A50694

DISC

WASHER sealing with rubber insert

3шт.

A43198

GASKET

KIT cylinder block, Includes Ref. 22-30

1шт.

For complete engine overhaul, order 1-A43198 and 1-A44758

1шт.

22

A51529

GASKET

timing gear cover, lower, cylidner block kit

1шт.

23

A39925

GASKET

injection pump drive gear cover, cylinder block kit

1шт.

24

G46859

GASKET

injection pump drive gear cover, not used this application, cylinder block kit

1шт.

25

A39188

GASKET

rear oil seal retainer, cylinder block kit

1шт.

26

A38083

GASKET

water pump, cylinder block kit

1шт.

27

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

water pump body, 3/4" x 1" x 1/8", 19.05 mm x 25.4 mm x 3.17 mm, cylinder block kit

1шт.

28

G46852

GASKET

oil pump cover, cylinder block kit

1шт.

29

G46854

GASKET

oil filter bracket, not used this application, cylinder block kit

1шт.

30

A30042

GASKET

power steering pump, not used this application, cylinder block kit

1шт.

A44758

GASKET

KIT oil pan, Replaces: A40712, Includes Ref. 35-36, cylinder block kit

1шт.

For complete engine overhaul, order 1-A43198 and 1-A44758

1шт.

35

NSS

NOT SOLD SEPARAT

GASKET oil pan kit

1шт.

36

A58608

GASKET

drain plug, nylon, oil pan kit

1шт.

36

A34827

GASKET

drain plug, copper, not used this application, oil pan kit

1шт.

40

M20611

SEAL KIT

SEAL KIT valve, Includes: 4 seals and installation sleeve, oil pan kit

1шт.
