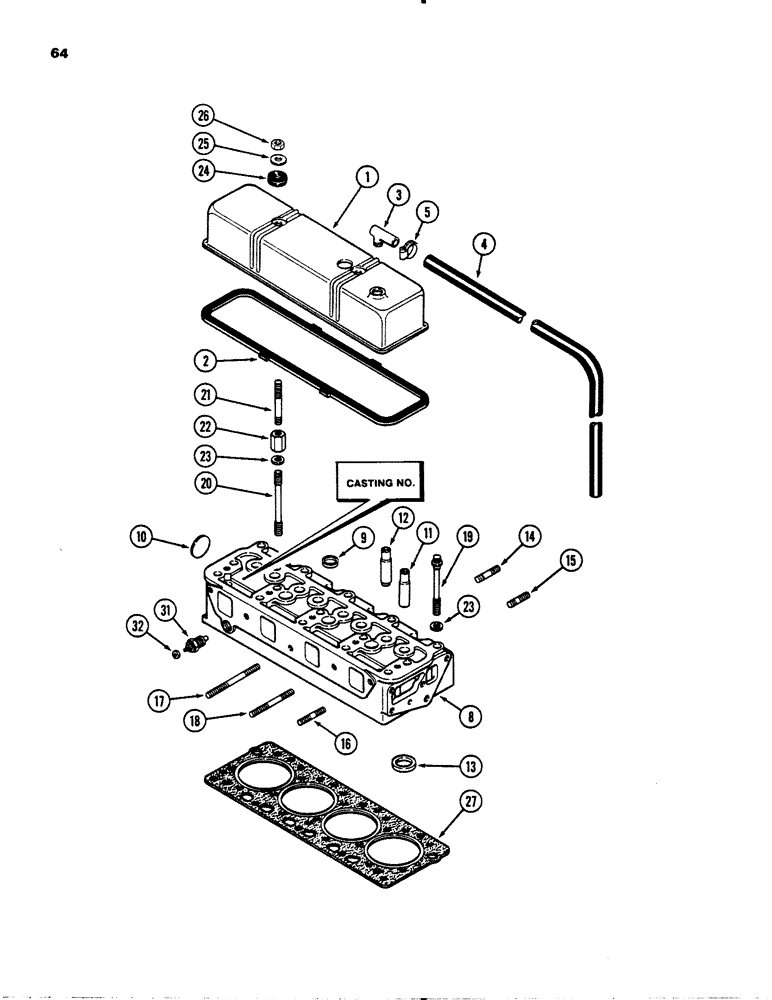

Запчасти Case 1845 (064) - CYLINDER HEAD AND COVER, (188) DIESEL ENGINE (10) - ENGINE

1

A36815

COVER

cylinder head

1шт.

2

A43030

GASKET,3.05mm Thk

cover to cylinder head

1шт.

3

A9155

90 ELBOW

breather

1шт.

4

A39570

HOSE

breather hose

1шт.

5

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP breather hose, 9/16" to 1-1/16", 14.29 mm to 26.99 mm

1шт.

8

A166029

HEAD (CYLINDER)

HEAD ASSEMBLY, cylinder, with drilled push rod holes, casting No. A155925

1шт.

8

A153261

CYLINDER BLOCK

HEAD ASSEMBLY, cylinder, with cast push rod holes, casting No. A150384, Includes Ref. 9-18

1шт.

9

41-1016

PLUG,Cup, 1"

top, 1" cup type, 25.4 mm

3шт.

10

41-1028

PLUG,Cup, 1 3/4"

rear, 1-3/4" cup type, 44.45 mm

1шт.

11

G2069

GUIDE

exhaust valve

4шт.

12

G2068

GUIDE

intake valve

4шт.

13

G47078

INSERT exhaust valve seat

4шт.

Ref #13 - Replaced by A39268, 03/20/96

1шт.

14

A39129

STUD

exhaust manifold, clamps, 3/8" NC x 2-1/16"

3шт.

15

A29431

STUD

exhaust manifold, ends, 3/8" NC x 1-3/4"

2шт.

16

A140924

STUD

intake manifold, ends, 3/8" NC x 2-7/16"

2шт.

17

A51499

STUD

intake manifold, intermediate, 3/8" NC x 4-5/16", order A153248

2шт.

18

A51500

STUD

intake manifold, center, 3/8" NC x 5-5/16"

1шт.

19

A39047

12 PT SCREW

BOLT cylinder head, 12 point head, 1/2" x 3-1/2" NC

4шт.

19

A39048

12 PT SCREW

BOLT cylinder head, 12 point head, 1/2" x 5-1/8" NC

11шт.

19

A39049

12 PT SCREW

BOLT cylinder head, 12 point head, 1/2" x 5-5/8" NC

2шт.

20

A36902

STUD

cylinder head, lower, 1/2" NC x 5-5/8"

2шт.

21

A51271

STUD

cylinder head cover, 3/8" NC x 3-3/4"

2шт.

22

A51114

NUT

head studs, 1/2" NC and 3/8" NC

2шт.

23

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

1/2" x 7/8" x 1/8", 1.7 mm x 22.22 mm x 3.17 mm

19шт.

24

A142098

GROMMET

cover, Replaces: G46867

2шт.

25

195-137

WASHER,13/32" x 1 1/8" x .180"

cover nut, 3/8" x 1-1/8" x 1/8", 9.52 mm x 28.57 mm x 3.17 mm

2шт.

26

25-106

NUT,3/8"-16, G5

3/8" NC hex

2шт.

27

REF

INSTRUCTION

GASKET cylinder head, see Figure 84

1шт.

31

A21462

SENDER UNIT

UNIT sending, engine temperature

1шт.

32

193-1000

NUT,Keps, w/LW,#10-32

#10 NF hex

1шт.
