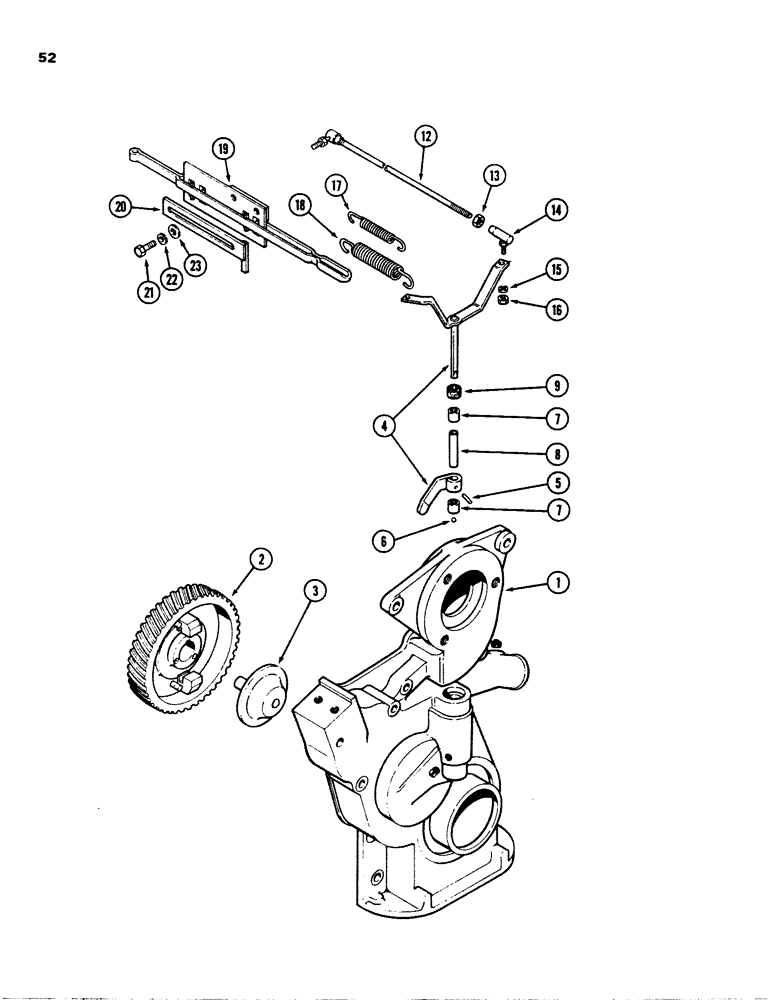

Запчасти Case 1845 (052) - GOVERNOR AND LINKAGE, (159) SPARK IGNITION ENGINE (10) - ENGINE

1

REF

INSTRUCTION

COVER ASSEMBLY, timing gear, see Figure 30

1шт.

2

G37066

GEAR

ASSEMBLY, camshaft, with governor weights

1шт.

3

A29957

SHAFT

ASSEMBLY, governor

1шт.

4

A51754

LEVER

SHAFT AND LEVER ASSEMBLY, governor control, Includes Ref. 5

1шт.

5

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

6

211-5

BALL,3/16" Dia

thrust, governor shaft, meter, 4.76 mm 3/16" Dia

1шт.

7

A35822

NEEDLE BEARING,Needle, 9.52mm ID x 14.29mm OD x 12.7mm W

BEARING needle, governor shaft

2шт.

8

A30012

SPACER

trust, governor shaft

1шт.

9

A30011

SEAL

dust, felt, 3/8" x 13/16" x 3/8", 9.52 mm x 20.64 mm x 9.52 mm

1шт.

12

G45310

ROD ASSY.

ROD ASSEMBLY, governor to carburetor, Includes Ref. 13 and 14

1шт.

13

25-114

NUT,1/4"-28, G5

1/4" NF hex

1шт.

14

A10329

BALL JOINT,1/4" - 28 x 1"

rod end

1шт.

15

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

16

25-114

NUT,1/4"-28, G5

1/4" NF hex

2шт.

17

A30711

SPRING

governor speed, inner, 43/64" OD, 17.07 mm

1шт.

18

G47064

SPRING

governor speed, outer, 13/16" OD, 20.64 mm

1шт.

19

G45793

ROD

ASSEMBLY, governor control

1шт.

20

G45792

STOP

GUIDE control rod

1шт.

21

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Guide Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

22

92-5

LOCK WASHER,5/16"

2шт.

23

95-5

WASHER,3/8" x 7/8" x .083"

5/16" x 11/16" x 1/16", 7.94 mm x 17.46 mm x 1.59 mm

2шт.
