Запчасти Case 1845 (042) - CYLINDER BLOCK, (159) SPARK IGNITION ENGINE, FUEL PUMP (10) - ENGINE

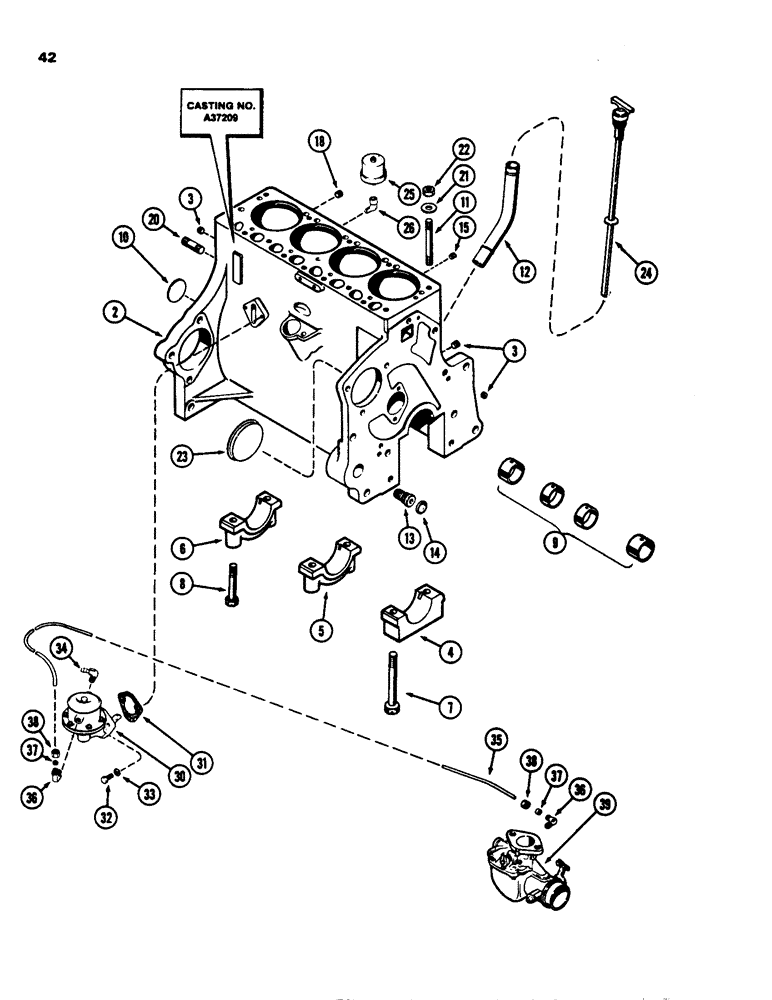

Схема запчастей Case 1845 - (042) - CYLINDER BLOCK, (159) SPARK IGNITION ENGINE, FUEL PUMP (10) - ENGINE
11
3
25
32
9
38
30
22
20
15
5
8
31
39
14
34
18
36
26
33
21
38
23
37
24
2
12
13
37
7
6
10
4
35
36
3

Артикул

Название

Примечание

Количество

A41599

SKELETON ENGINE

BLOCK ASSEMBLY, short, Includes: stripped block, crankshaft and bearings, connecting rods and bearings, piston assembly, camshaft and bushings, oil pump and timing gears

1шт.

2

A46347

SKELETON ENGINE

BLOCK ASSEMBLY, stripped, casting No. A37209, Includes Ref. 3-14

1шт.

3

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

PLUG, , Oil gallery Hex Soc, 1/4"-18 NPTF

3шт.

4

G2035

CAP

CAP main bering, front

1шт.

5

G2036

CAP

SPARE PART CAP main bearing, center

1шт.

6

G2037

CAP

CAP main bearing, rear

1шт.

7

G49059

BOLT

BOLT bearing cap, front, 1/2" x 4-3/4" NC hex

2шт.

8

G49037

BOLT

BOLT bearing cap, rear and center, 1/2" x 3" NC hex

4шт.

9

A41225

KIT

BUSHING SET camshaft

1шт.

10

A39241

PLUG,Exp, 2.12" dia

PLUG camshaft hole

1шт.

11

A30057

STUD

STUD cylinder head, 1/2" NF x 2"

9шт.

11

A29436

STUD

STUD cylinder head, 1/2" NF x 5-7/8"

5шт.

12

A29381

TUBE oil filler and dipstick

1шт.

13

A153552

ADAPTER

ADAPTER oil filter

1шт.

14

41-1016

PLUG,Cup, 1"

PLUG adapter, 1" cup type, 25.4 mm

1шт.

15

221-850

PLUG,Hex Soc, 1/16"-27

PLUG countersunk head, 1/16" NPT

1шт.

18

221-662

PLUG,Hex Hd, 1/4"-18

PLUG drain, cylinder block, 1/4" PT, hex head

1шт.

20

A51412

STUD

STUD 5"8" NF x 1-3/4"

1шт.

21

G49404

WASHER

WASHER cylinder head studs, 1/2" x 7/8" x 1/16", (12.7 mm x 22.22 mm x 1.59 mm

14шт.

22

A30021

NUT

NUT cylinder head studs, 1/2" NF hex

14шт.

23

41-1052

PLUG,Cup, 3 1/4"

COVER timing gear hole, 3-1/4" cup type, 82.55 mm

1шт.

24

A136379

DIPSTICK

DIPSTICK ASSEMBLY, engine oil level

1шт.

25

A35031

SENDER UNIT

oil pressure sending

1шт.

26

221-401

ELBOW,45 Degree, 1/8"-27, NPT

ELBOW sending unit, 45 degree, 1/8" PT street

1шт.

30

G45778

PUMP

PUMP ASSEMBLY, fuel pump

1шт.

31

A65561

GASKET

GASKET fuel pump to block, fuel pump

1шт.

32

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, , Pump to block, fuel pump Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

33

92-5

LOCK WASHER,5/16"

LOCK WASHER, , fuel pump 5/16"

2шт.

34

217-291

FITTING,90 Degree Elbow, 5/16" Hose Barb x 1/8" Male NPTF

ELBOW fuel pump inlet, fuel pump

1шт.

35

A141054

TUBE

LINE fuel pump to caburetor, Replaces: G46289, fuel pump

1шт.

36

222-619

ELBOW,90 Degree, 1/2"-24 x 1/8" NPT, Comp

ELBOW ASSEMBLY, fuel line, Includes Ref. 37 and 38, fuel pump

2шт.

37

222-653

SLEEVE,5/16" Tube, Comp

SLEEVE for 5/16" tube, fuel pump

1шт.

38

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT for 5/16" tube, fuel pump

1шт.

39

REF

INSTRUCTION

CARBURETOR ASSEMBLY, see Figure 50, fuel pump

1шт.

Выбрано товаров: 34
