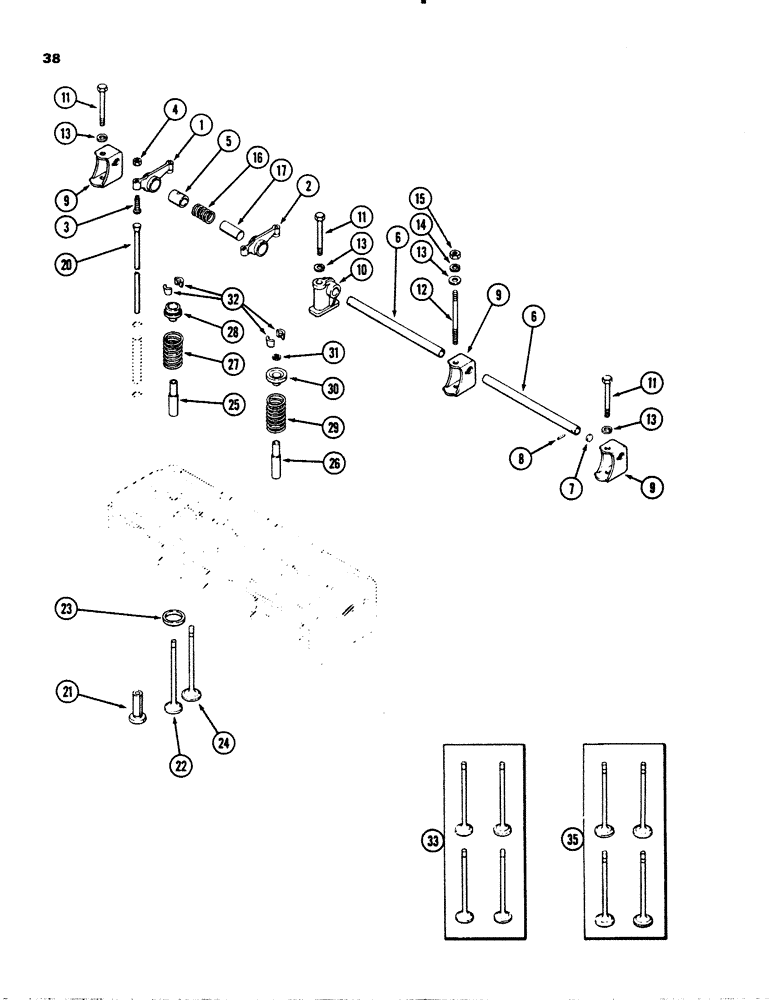

Запчасти Case 1845 (038) - VALVE MECHANISM, (159) SPARK IGNITION ENGINE (10) - ENGINE

1

G45234

ARM

ASSEMBLY, rocker, right hand, Includes Ref. 3-5

4шт.

2

G45235

ARM

ASSEMBLY, rocker, left hand, Includes Ref. 3-5

4шт.

3

A31056

ADJUSTMENT SCREW,5/16" - 24 x 1 11/32"

SCREW adjusting

1шт.

4

25-155

JAM NUT,Jam, 5/16"-24, G5

lock, adjusting screw, jam, 5/16" NF hex

1шт.

5

A31055

BUSHING

rocker arm

1шт.

6

A37197

SHAFT

ASSEMBLY, rocker arm

2шт.

7

A26796

PLUG

shaft

2шт.

8

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, , Cup 1/8" x 3/4", Slotted

2шт.

9

G46250

BRACKET

rocker arm shaft

4шт.

10

G2107

BRACKET

rocker arm shaft, center

1шт.

11

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

rocker arm bracket, 3/8" x 2-3/4" NC hex

3шт.

12

G49505

STUD

rocker arm bracket, 3/8" NC x 4-5/8"

2шт.

13

D41740

WASHER

3/8" x 1" x 1/8", 9.52 mm x 25.4 mm x 3.17 mm

5шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

25-106

NUT,3/8"-16, G5

3/8" NC hex

2шт.

16

A30007

SPRING

rocker arm shaft

2шт.

17

A30008

SPACER

rocker arm shaft

2шт.

20

G11086

ROD

push

8шт.

21

A30006

TAPPET

LIFTER push rod

8шт.

22

NSS

NOT SOLD SEPARAT

VALVE exhaust, order Ref. 33

4шт.

23

G2106

INSERT

exhaust valve seat

4шт.

24

NSS

NOT SOLD SEPARAT

VALVE intake, order Ref. 35

4шт.

25

A29954

GUIDE

exhaust valve, 2-11/16" long, 68.26 mm

4шт.

26

A29955

GUIDE

intake valve, 2-7/16" long, 61.91 mm

4шт.

27

G10004

SPRING

exhaust valve, 2-3/16" free length, 55.56 mm

4шт.

28

G10072

CAP

ROTATOR exhaust valve

4шт.

29

A30025

SPRING

intake valve, 2-3/8" free length, 60.32 mm

4шт.

30

G11717

RETAINER

intake valve

4шт.

31

G46851

SEAL

intake valve stem

4шт.

32

A30004

RETAINER

LOCK valve spring keepers

16шт.

33

G11962

VALVE, ENG EXHAUST,

VALVE KIT exhaust, set of 4

1шт.

35

G11961

VALVE

KIT intake, set of 4

1шт.
