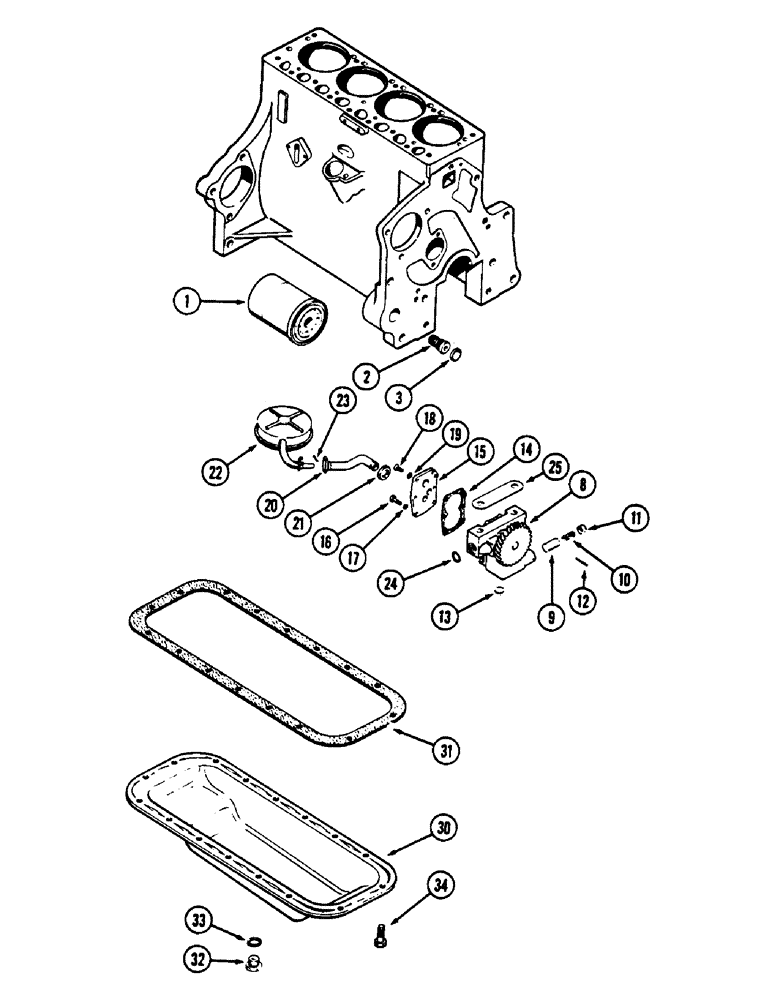

Запчасти Case 1845 (032) - OIL FILTER, (159) SPARK IGNITION ENG, PRIOR TO ENG SN. 4309700, OIL PUMP, OIL PAN (10) - ENGINE

1

A146696

ENGINE OIL FILTER

FILTER engine oil, Replaces A32189

1шт.

2

A153552

ADAPTER

, Serial Range: filter-block

1шт.

3

41-1016

PLUG,Cup, 1"

adapter, 1" cup type, 25.4 mm

1шт.

8

A38369

PUMP

ASSEMBLY, oil, Includes Ref. 9-19, oil pump

1шт.

9

A155144

VALVE, PRESSURE RELI

VALVE relief, oil pump

1шт.

10

G48513

VALVE SPRING

SPRING relief valve, oil pump

1шт.

11

A29260

RETAINER

relief spring, oil pump

1шт.

12

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), , Oil pump 1/8" x 1 1/4"

1шт.

13

A39321

PLUG,Cup, 7/16"

pump body, 1/2" cup type, 12.7 mm, oil pump

2шт.

14

G46852

GASKET

pump cover, oil pump

1шт.

15

NSS

NOT SOLD SEPARAT

COVER pump body, oil pump

1шт.

16

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

Cover, oil pump Hex, 1/4"-20 x 1 1/4", G5

1шт.

16

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Cover, oil pump Hex, 1/4"-20 x 3/4", G5, Full Thd

3шт.

17

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Oil pump 1/4"

4шт.

18

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

cover, flat head, 1/4" x 5/8", oil pump

2шт.

19

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, , Oil pump Ext Csk Tooth, 1/4"

2шт.

20

A39035

TUBE

PIPE ASSEMBLY, suction, order A155221 Kit, see Figure 68, oil pump

1шт.

21

223-207

LOCK NUT

NUT pipe to pump, oil pump

1шт.

22

A39036

FLOAT

ASSEMBLY, suction, order A155221 Kit, see Figure 68, oil pump

1шт.

23

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), , Oil pump 1/8" x 1 1/4"

1шт.

24

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

oil port, 3/4" x 15-16" x 3/32", 19.05 mm x 23.81mm x 2.38 mm, oil pump

1шт.

25

G11337

SHIM,.002" Thk

Pump to bearing cap (0.0508 mm), Oil pump .002" Thk

1шт.

25

G11338

SHIM,.005" Thk

Pump to bearing cap (0.1270 mm), Oil pump .005" Thk

1шт.

30

A36726

PAN

oil, oil pan

1шт.

31

NSS

NOT SOLD SEPARAT

GASKET oil pan, order A40710, Figure 48, oil pan

1шт.

32

A140222

PLUG

drain, Replaces: A14280, oil pan

1шт.

33

A58608

GASKET

drain plug, nylon, 3/4" x 1" x 1/16", 19.05 mm x 25.4 mm x 1.59 mm, oil pan

1шт.

34

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT ASSEMBLY, with washer, 5/16" x 3/4" NC hex, oil pan

16шт.
