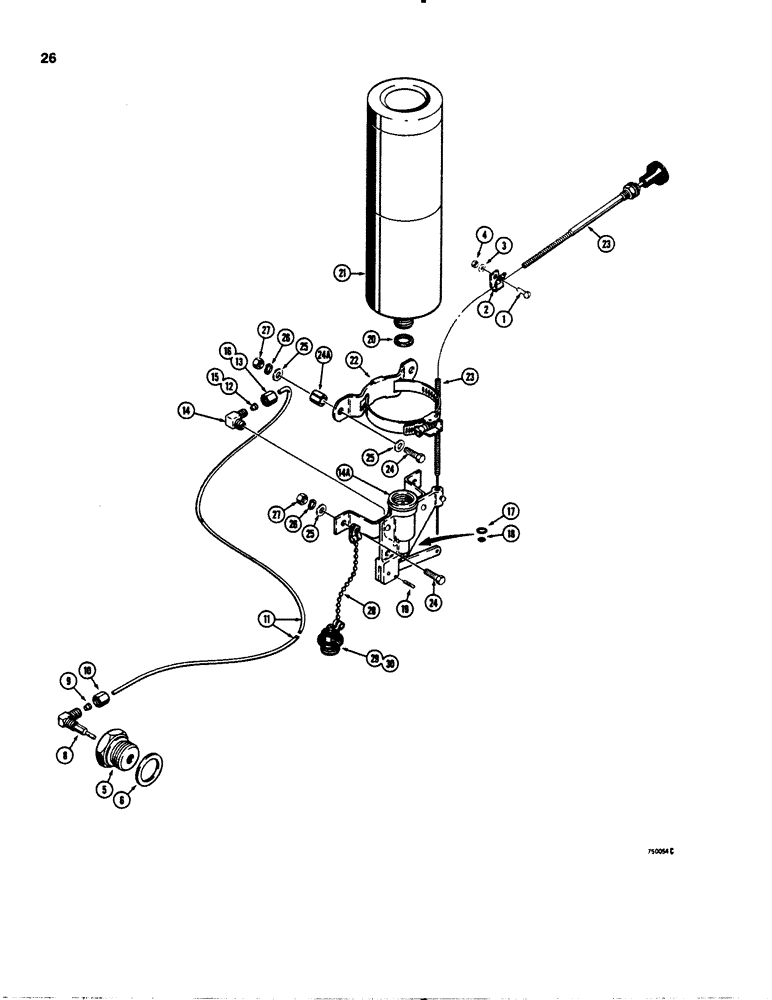

Запчасти Case 1845 (026) - COLD START AID (10) - ENGINE

1

173-205

X

SCREW slot head, plated, No. 10 - 24 NC x 5/8"

1шт.

2

T40341

CLAMP,1/4", 1/4" Bolt

cable

1шт.

3

195-513

WASHER,#10

flat, plated, No. 10

1шт.

4

129-17

NUT,Hex, #10 - 24

NUT hex, plated, No. 10 - 24 NC

1шт.

5

L10283

PLUG

manifold

1шт.

6

A20916

MANIFOLD GASKET

WASHER special

1шт.

7

RESERVED

1шт.

NSS

NOT SOLD SEPARAT

KIT cold start, Includes P/N D55946, Ref. 8-27

1шт.

D55946

JET

INJECTOR ASSEMBLY, cold start

1шт.

8

NSS

NOT SOLD SEPARAT

INJECTOR cold start

1шт.

9

222-650

SLEEVE,1/8" Tube, Comp

1шт.

10

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1шт.

D55947

TUBE

ASSEMBLY, valve to injector, Includes Ref. 11-13

1шт.

11

NSS

NOT SOLD SEPARAT

TUBE valve to injector, 60", 1524 mm long

1шт.

12

222-650

SLEEVE,1/8" Tube, Comp

1шт.

13

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1шт.

D55948

VALVE

ASSEMBLY, Includes Ref. 14-16

1шт.

14

D88742

ELBOW ASSEMBLY, valve

1шт.

14a

NSS

NOT SOLD SEPARAT

VALVE actuator

1шт.

15

222-650

SLEEVE,1/8" Tube, Comp

1шт.

16

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1шт.

NSS

NOT SOLD SEPARAT

KIT service, valve seal, Includes Ref. 17-20

1шт.

17

A51274

O-RING,0.145" ID x 0.285" OD

internal plunger, top

1шт.

18

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

internal plunger, bottom

1шт.

19

135-313

GROOVED PIN,3/32" x 1/2"

Pin, Grooved, , drive 3/32" x 1/2"

1шт.

20

D74422

GASKET

SEAL, Serial Range: cylinder-valve

1шт.

21

D55767

CYLINDER

cold start

1шт.

22

D55949

BRACKET

CLAMP cylinder

1шт.

23

D88741

CABLE

cold start control

1шт.

24

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

24

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Used on models without noise control only Hex, 1/4"-20 x 1", G5

4шт.

24a

D76208

SPACER

bolt, used on models with noise control only

4шт.

25

195-102

WASHER,1/4"

flat, plated, 1/4"

6шт.

26

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

27

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

29

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY, Includes Ref. 29 and 30

1шт.

29

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

30

182-125

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

No. 10 - 24 NC x 1/2"

1шт.

NSS

NOT SOLD SEPARAT

KIT cold start, complete, Includes Ref. 1 - 30 and instructions

1шт.
