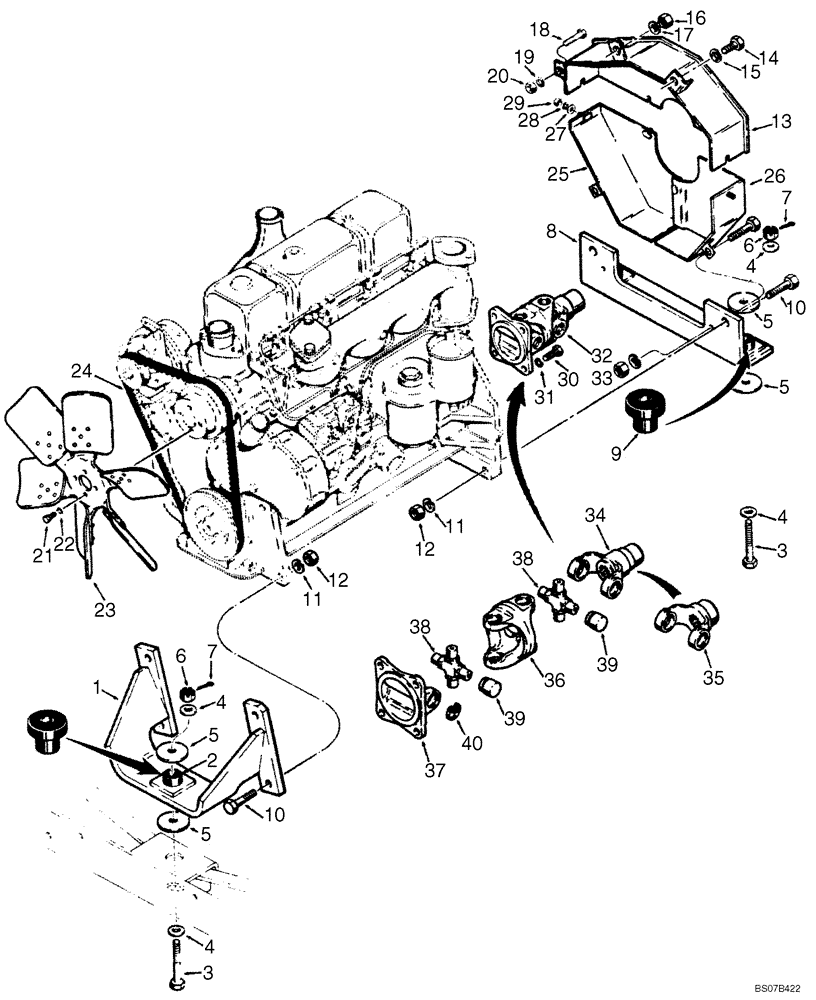

Запчасти Case 1845 (010) - ENGINE MOUNTING, FLYWHEEL GUARD, FAN AND FAN BELT (10) - ENGINE

1

D63931

MOUNTING PARTS

MOUNT engine, rear, Includes Ref. 2

1шт.

Replaced by A59516 Mount and D63930 Bracket, 03/20/96

1шт.

2

A59516

RUBBER MOUNTING,63.5mm OD x 50.8mm L

BUSHING rubber mount

1шт.

3

D64065

BOLT

hex head, 5/8"-18 NC x 3-1/2"

3шт.

4

195-41

WASHER,5/8"

- flat, 5/8"

6шт.

5

CASD35009

WASHER,16.67mm ID x 63.5mm OD

flat, hardened

6шт.

6

25-1310

SLOTTED NUT,5/8"-18, G5

NUT hex, slotted, 5/8"-18 NF

3шт.

7

132-71

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

3шт.

8

D63923

BRACKET

MOUNT engine, front, Includes Ref. 9

1шт.

9

A59516

RUBBER MOUNTING,63.5mm OD x 50.8mm L

BUSHING rubber mount

2шт.

10

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

6шт.

11

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

plain, heat treated

6шт.

12

129-107

NUT,5/8"-11, G5

6шт.

13

D64238

GUARD

flywheel

1шт.

14

13-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

1шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

16

129-127

NUT,5/8"-18, G5

1шт.

17

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

18

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

19

92-6

LOCK WASHER,3/8"

1шт.

20

25-106

NUT,3/8"-16, G5

hex, 3/8"-16 NC

1шт.

21

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

22

92-5

LOCK WASHER,5/16"

4шт.

23

D68865

FAN

pusher

1шт.

Diesel engine can use P/N D34717 suction fan, not recommended for gasoline engines, JBedford, 5/9/97.

1шт.

24

A38824

BELT

Fan and Alternator Drive, Use with Prestolite Alternator

1шт.

24

A11444

BELT,0.53" W x 50.50" L

Fan and Alternator, Delco Alternator 0.53" W x 50.50" L

1шт.

25

D64361

GUARD

flywheel, lower left hand, 1845S Models

1шт.

26

D64239

GUARD

flywheel, lower right hand, 1845S Models

1шт.

27

195-18

WASHER,1/4"

flat, 1/4"

5шт.

28

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

29

25-104

NUT,1/4"-20, G5

5шт.

30

114-302

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5, Full Thd

hex head, 7/16"-20 NC x 1-1/4"

4шт.

31

81547

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

32

D64445

JOINT

UNIVERSAL gasoline models; Incl. Ref 34, 36 - 40; No Longer Available As An Assembly, Order Ref 34, 36, 37, Plus (2) N9082 Kit, (2) NH80715 Grease Fitting

1шт.

33

D64444

JOINT

UNIVERSAL diesel models, Includes Ref. 35 - 40; No Longer Available As An Assembly, Order Ref 36, 37, 295551A1 Yoke, (2) N9082 Kit, (2) NH80715 Grease Fittings

1шт.

34

D70628

YOKE

pump end, D64445 universal, gasoline models

1шт.

35

295551A1

YOKE

pump end, Replaces D70625; D64444 universal, diesel models

1шт.

36

D70626

YOKE

center

1шт.

37

D70624

YOKE

FLANGE engine end

1шт.

D70629

U-JOINT SPIDER

JOINT ASSEMBLY, universal; Incl. Ref 38 - 40; No Longer Available, Order N9082 Kit, Plus NH80715 Grease Fitting

1шт.

38

NSS

NOT SOLD SEPARAT

JOINT universal

1шт.

39

NSS

NOT SOLD SEPARAT

RACE bearing

4шт.

40

11256

SNAP RING

snap

4шт.
