Запчасти Case 1845 (252) - SCARIFIER, IDENTIFICATION PLATE AND SN ON UPPER LH SIDE OF FRAME (89) - TOOLS

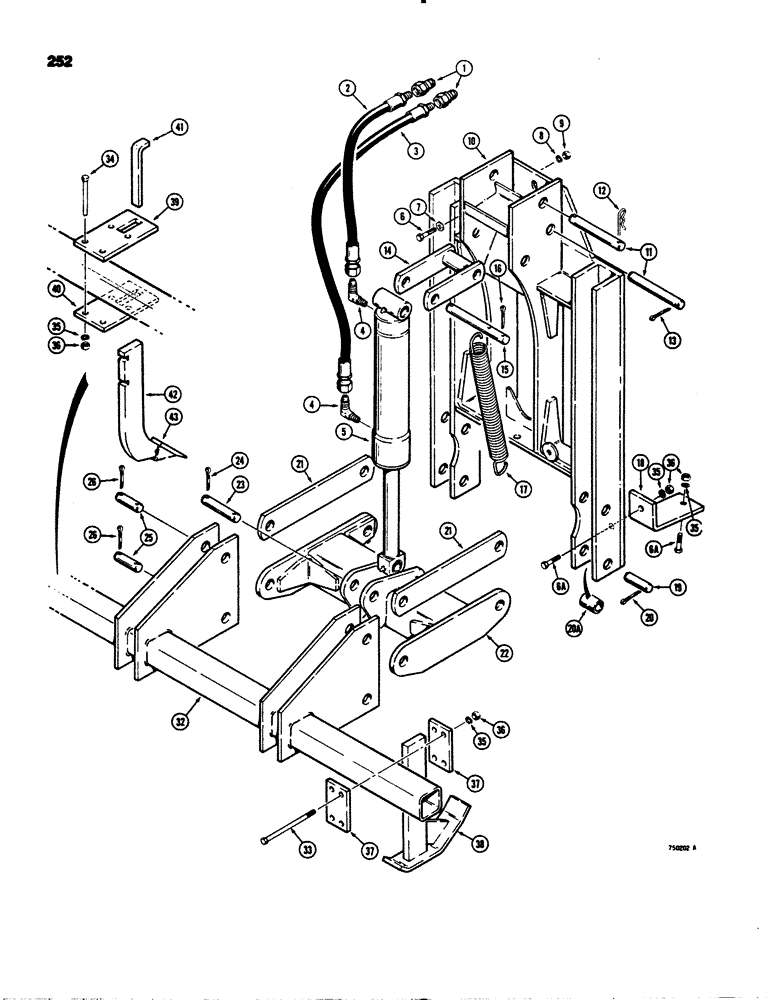

Схема запчастей Case 1845 - (252) - SCARIFIER, IDENTIFICATION PLATE AND SN ON UPPER LH SIDE OF FRAME (89) - TOOLS
13
37
20
17
18
10
37
9
23
1
26
35
41
12
16
20a
43
7
21
35
32
8
36
14
3
15
24
35
40
22
5
25
19
4
36
33
4
35
38
39
21
6a
42
11
34
2
26
36
6a
6

Артикул

Название

Примечание

Количество

1

T41332

COUPLING, BREAK AWAY

COUPLING quick disconnect, male

2шт.

2

D70852

HOSE

cylinder rod end, 32", 812.8 mm long

1шт.

3

D70852

HOSE

cylinder, closed end, 42", 1066.8 mm long

1шт.

4

217-1016

ELBOW,3/8" - 18 Female x 3/8" - 18 Male

FITTING male, 90 degree

2шт.

5

G33744

CYLINDER BLOCK

CYLINDER scarifier, parts list Figure 224

1шт.

6

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

8шт.

6a

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

7

195-533

WASHER,1/2", SAE

flat, plated, 1/2"

12шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

12шт.

10

D72014

FRAME scarifier

1шт.

11

D69182

AXLE PIN

PIN hinge

2шт.

12

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

PIN, SPLIT (COTTER), , Hair Int, 7/16" x .177"

2шт.

Ref. 12, Replaced by 1978738C1, 06/30/97

1шт.

13

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

14

T42032

HINGE

cylinder, upper

1шт.

15

T42035

AXLE PIN

PIN cylinder mounting

1шт.

16

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

17

T42060

SPRING

tension

1шт.

18

D45836

STRAP, Serial Range: frame-loader

1шт.

19

T42041

AXLE PIN

PIN links

4шт.

20

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

8шт.

20a

B18283

SPACER

pin

2шт.

21

D70749

LINK scarifier, upper

2шт.

22

D71752

LINK scarifier, lower

1шт.

23

T50222

PIN

cylinder to lower link

1шт.

24

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

4шт.

25

T50222

PIN

links to tool bar

4шт.

26

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

8шт.

27

RESERVED

1шт.

28

RESERVED

1шт.

29

RESERVED

1шт.

30

RESERVED

1шт.

31

RESERVED

1шт.

32

D71754

BAR tool

1шт.

33

113-2421

BOLT,Hex, 1/2" - 13 x 8", Gr 5

8шт.

34

113-429

BOLT,Hex, 1/2" - 13 x 5", Gr 5

20шт.

35

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

28шт.

36

129-105

NUT,Hex, 1/2" - 13, Gr 5

28шт.

37

D65907

PLATE clamp, skid

4шт.

38

D59800

SPARE PART

SKID depth control

2шт.

39

D65905

PLATE

tooth, upper

5шт.

40

D65906

PLATE tooth, lower

5шт.

41

T42056

KEY

tooth

5шт.

T42054

TOOTH

ASSEMBLY, scarifier, Includes Ref. 42-43

5шт.

42

NSS

NOT SOLD SEPARAT

SHANK tooth

1шт.

43

K3871

POINT

tooth

1шт.

Выбрано товаров: 47
