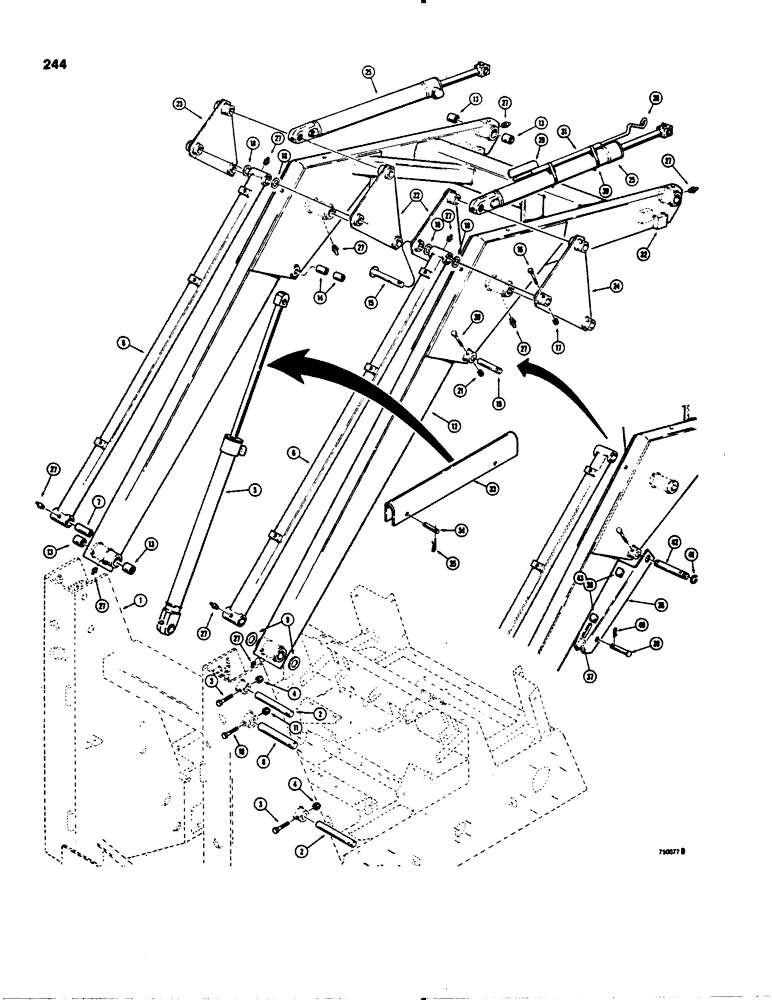

Запчасти Case 1845 (244) - LOADER LIFT ARM, USED ON MODELS WITH SUPPORT STRUT (82) - FRONT LOADER & BUCKET

1

NSS

NOT SOLD SEPARAT

FRAME upright

1шт.

2

D63894

PIN

retaining

4шт.

3

26-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

hex head, 3/8" - 16 NC x 2-1/4", grade 8

4шт.

4

131-652

LOCK NUT,3/8"-16, GB

NUT hex, self lock, 3/8" - 16 NC

4шт.

5

REF

INSTRUCTION

CYLINDER lift, parts list Figure 218

2шт.

6

D70475

ARM

self leveling, without auxiliary hydraulics

2шт.

6

D63689

ARM

self leveling, with auxiliary hydraulics, Includes Ref. 7

2шт.

7

D51608

BUSHING,25.63mm ID x 34.92mm OD x 25.4mm L

D70475 and D63689 arm

4шт.

8

D63895

PIN

lift, Serial Range: arm-upright

2шт.

9

195-2121

WASHER,1 5/16" x 2" x .065"

flat

1шт.

10

26-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

2шт.

11

131-652

LOCK NUT,3/8"-16, GB

NUT hex, self lock, 3/8" - 16 NC

2шт.

12

D90319

ARM, LIFT

ARM lift, Includes Ref. 13-14

1шт.

13

D33827

BUSHING,31.98mm ID x 41.27mm OD x 31.8mm L

1-1/4", 31.75 mm ID

8шт.

14

D51608

BUSHING,25.63mm ID x 34.92mm OD x 25.4mm L

1", 25.4 mm ID

4шт.

15

D68829

PIN

retaining

6шт.

16

26-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

hex head, 3/8" - 16 NC x 4-1/4", grade 8

6шт.

17

131-652

LOCK NUT,3/8"-16, GB

NUT hex, self lock, 3/8" - 16 NC

6шт.

18

195-2105

WASHER,1 1/16" x 1 3/4" x .065"

flat

1шт.

19

D67387

PIN

lift cylinder retaining

1-2шт.

20

26-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

hex head, 3/8" - 16 NC x 2-1/4", grade 8

2шт.

21

131-652

LOCK NUT,3/8"-16, GB

NUT hex, self lock, 3/8" - 16 NC

2шт.

22

D63639

PLATE

self leveling, inner

2шт.

23

D63638

PLATE

self leveling, left hand outer

1шт.

24

D63783

PLATE

self leveling, right hand outer

1шт.

25

G34926

CYLINDER

bucket, parts list Figure 220

2шт.

118156A1R

REMAN-HYD CYLINDER

1845 - CASE UNI-LOADER SKID STEER LOADER (NORTH AMERICA), 1845S - CASE UNI-LOADER SKID STEER LOADER; Reman for new P/N G34926

2шт.

118156A1C

CORE-HYD CYLINDER

Return Number

1шт.

26

RESERVED

1шт.

27

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING straight, 1/8" NPT

8шт.

28

D68783

ROD

indicator

1шт.

29

D68782

ELECTRICAL GAUGE

GAUGE sight, bucket

1шт.

30

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP worm screw type

2шт.

31

D38648

BLOCK

CUSHION rubber

2шт.

32

D63633

BLOCK

stop

4шт.

33

D68960

STOP

SUPPORT strut

2шт.

34

D63534

PIN

stop

4шт.

35

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

8шт.

36

D87884

STAY

STRUT support, lift arm, used on models with support strut

1шт.

37

D89804

STRIP

rubber, strut, used on models with support strut

1шт.

38

D79692

PAD

lift arm, used on models with support strut

2шт.

38

D79998

PIN

strut, used on models with support strut

1шт.

40

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), , Used on models with support strut Int, 3/16 x .080"

1шт.

41

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

RETAINING RING, used on models with support strut

2шт.

42

D87883

PIN

strut, lift cylinder retaining, used on models with support strut

1шт.

43

345-67

GLUE

ADHESIVE not shown, used on models with support strut

1шт.
