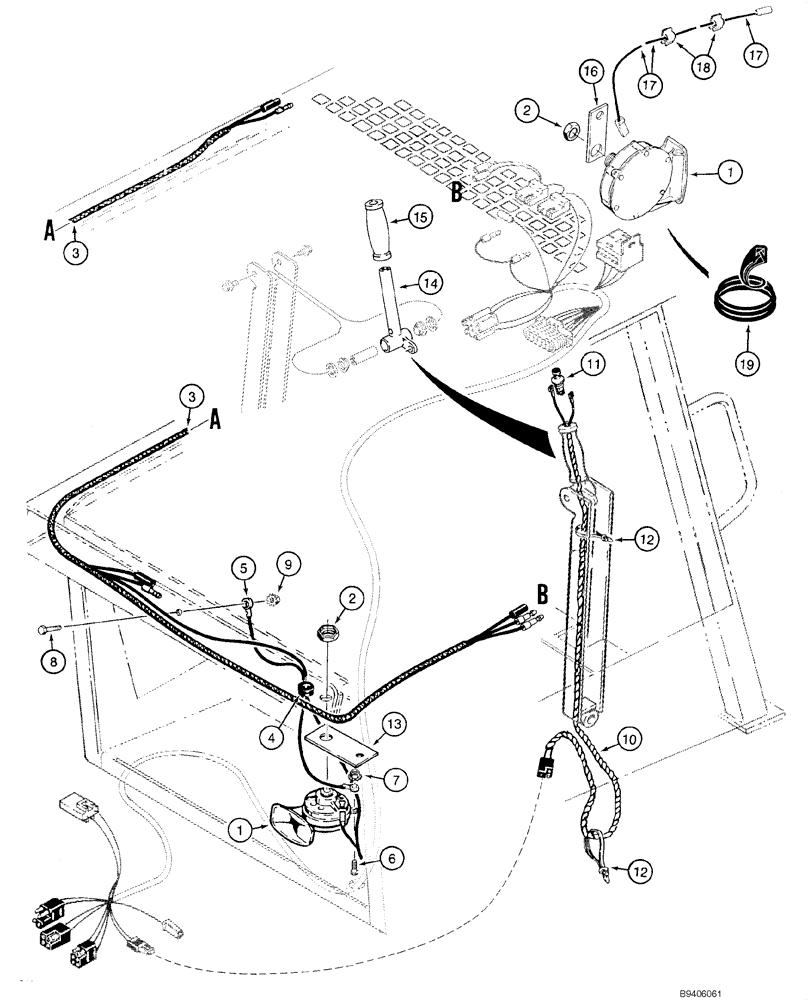

Запчасти Case 1840 (04-21) - HORN, - JAF0289363 (04) - ELECTRICAL SYSTEMS

1

E99697

HORN

12 volt; European Models, - JAF0098065

1шт.

1

D123205

HORN

12 volt; All North American Models; European Models, JAF0098065 -

1шт.

2

L30866

LOCK NUT

Horn Mounting

1шт.

3

D139709

HARNESS

Horn And Lamp

1шт.

4

248-2198

GROMMET,3/8" ID x 5/8" Groove Dia

5/8 in; Horn; Replaces 49566

1шт.

5

D134077

ELECTRICAL WIRE

WIRE Ground

1шт.

6

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

No. 10 NC x 1/2 in

1шт.

7

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

No. 10 NC

1шт.

8

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

9

193-1009

NUT,Keps, w/LW, 5/16"-18

1шт.

10

D134076

HARNESS

Horn Switch

1шт.

11

D91440

SWITCH

European Models, - JAF0098065; No Longer Available, Order D141486

1шт.

11

D141486

SWITCH

European Models, JAF0098065 - ; All North American Models

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.

13

D122734

SUPPORT

Mounting; Horn; North American Models; European Models, JAF0098065 -

1шт.

13

E99588

BRACKET

Mounting; Horn; European Models, - JAF0098065

1шт.

14

D133283

LEVER

Control; Pump; Used On Models With Horn Only; Right Hand Side

1шт.

15

D133282

HANDLE

Control Lever

1шт.

FRONT HORN

1шт.

16

113590A1

BRACKET

Front Mounting; Horn

1шт.

17

111161A1

ELECTRICAL WIRE

WIRE Ground

1шт.

18

H439303

CLIP

Harness

2шт.

19

D55218

SEAL, GLASS,76mm L

3 inch (76 mm); Cut From F42827

1шт.

F42827

TRIM,2946.4mm L

116 inch (2946 mm)

1шт.
