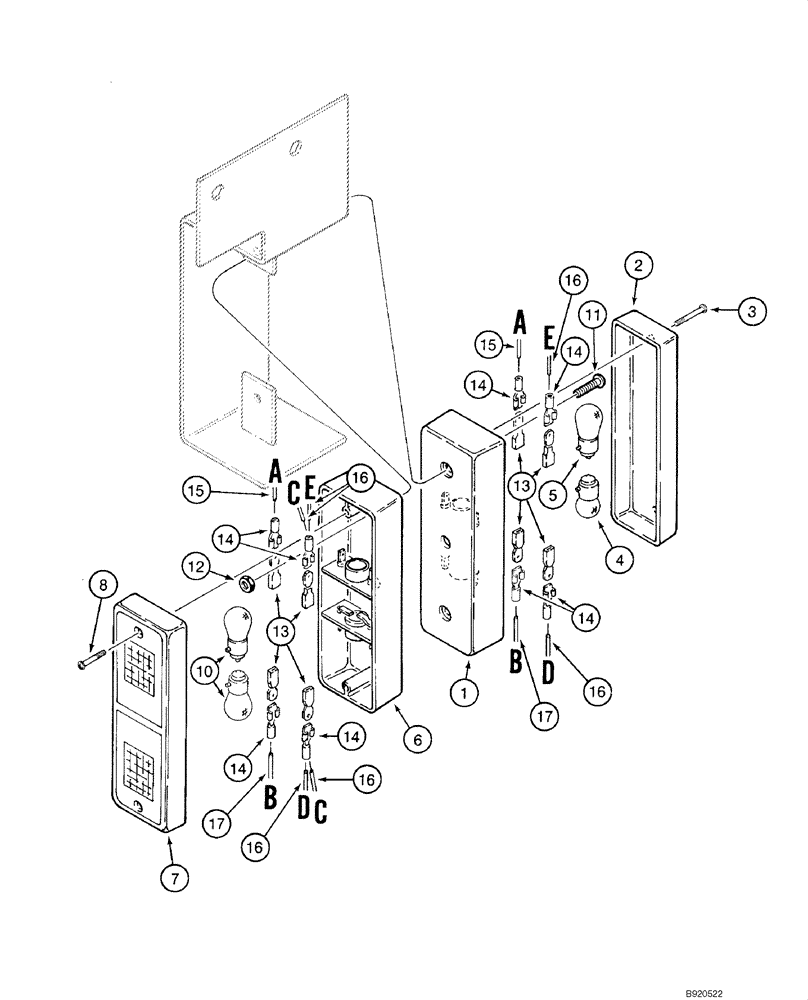

Запчасти Case 1840 (04-14) - ROAD LAMP ASSEMBLIES, (EUROPE), JAF0098065 - (04) - ELECTRICAL SYSTEMS

E137163

LIGHT ASSY.

Road; Front; No Longer Available, Order E133215

2шт.

E133215

TAIL LAMP

Road; Front; Incl. 1 - 5

2шт.

1

NSS

NOT SOLD SEPARAT

Body; Lamp

1шт.

2

110280A1

CAPPING

Amber/White

1шт.

3

NSS

NOT SOLD SEPARAT

Screw, 3.5 x 30 mm

2шт.

4

110279A1

BULB

5 watt

1шт.

5

110277A1

BULB

21 watt

1шт.

E137174

LENS

Rear; Incl. 6 - 10; Replaces E137162

2шт.

6

NSS

NOT SOLD SEPARAT

Body; Lamp

1шт.

7

110276A1

REFLECTOR

Amber/Red

1шт.

8

NSS

NOT SOLD SEPARAT

Screw, 3.5 x 30 mm

2шт.

10

110277A1

BULB

21 watt

2шт.

11

30464R1

SCREW,Cross Pan Hd, M5 x 25

5 mm x 25 mm

4шт.

12

825-1405

NUT,M5, Cl 8

4шт.

13

102296A1

CONNECTION

1/4 inch

16шт.

14

223-95

TERMINAL CONNECTOR,Female, 14 - 16

14-16 wire size; Female

16шт.

15

H439273

ELECTRICAL WIRE

WIRE Red

2шт.

16

H439272

ELECTRICAL WIRE

WIRE Black

6шт.

17

H439274

ELECTRICAL WIRE

WIRE Green

2шт.
