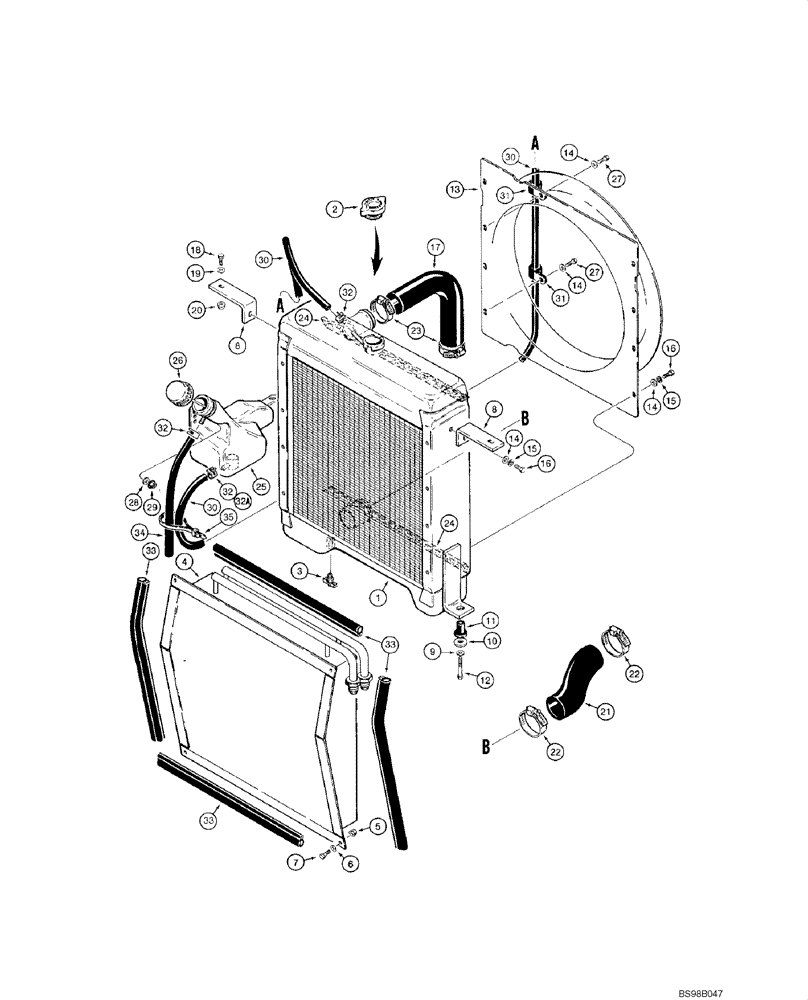

Запчасти Case 1840 (02-01) - RADIATOR - OIL COOLER (02) - ENGINE

1

1347609C1GV

RADIATOR

Engine Cooling; Replaces A173415; Models Without Emissions Certified Engine

1шт.

1

1347609C1

RADIATOR

Engine Cooling; Replaces A173415; Models Without Emissions Certified Engine

1шт.

1a

301877A2

RADIATOR

Engine Cooling; Not Illustrated; Models With Emissions Certified Engine; Replaces 301877A1

1шт.

1

252930A1

RADIATOR

Heavy Duty; See Figure 02-01A

1шт.

2

A170241

RADIATOR CAP

15 psi

1шт.

3

H434809

COCK, DRAIN

1шт.

4

A184084

OIL COOLER

Hydraulic Oil

1шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

6

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

4шт.

7

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

8

H435039

BRACKET

Radiator Support

2шт.

9

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

10

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

2шт.

11

D75755

ISOLATOR

2шт.

12

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

13

A171002

DEFLECTOR

Fan

1шт.

14

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

8шт.

15

492-11031

LOCK WASHER,5/16"

10шт.

16

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

8шт.

17

D124950

RADIATOR HOSE,45.00 mm ID x 220.00 mm, SAE 20R4 Class C

Upper

1шт.

18

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

19

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

20

231-5146

FLANGE NUT,3/8"-16

2шт.

21

D124951

RADIATOR HOSE,58.00 mm ID x 157.00 mm, SAE 20R4 Class C

Lower

1шт.

22

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

2-1/16 - 3 in dia; Lower Radiator Hose

2шт.

23

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

Upper Radiator Hose

2шт.

24

A173165

SEALING STRIP

Fan Shroud, Radiator

2шт.

25

A171805

RESERVOIR

Coolant Recovery

1шт.

26

A184079

CAP

Recovery Bottle; Replaces 1547924C1

1шт.

27

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

28

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

2шт.

29

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

30

D94979

FUEL HOSE,7.90 mm ID x 1016.00 mm, SAE 30R6 or SAE 30R7

Cut From S120317X

1шт.

31

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

Coolant Recovery Hose; Replaces 49768

2шт.

32

A171099

HOSE CLAMP,13.2mm - 15.4mm

Coolant Hoses To Radiator And Reservoir

2-3шт.

32a

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

Recovery; Replaces REF 32 On Some Models

1шт.

33

D128489

LINING

496 mm (19-1/2 inch); Cut From F43117X , If Used

4шт.

34

D128547

HOSE,7.9 mm ID x 300.00 mm, SAE 30R6

Cut From S120317X

1шт.

35

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

F43117X

SEAL

15 (9/16) x 31 (1-3/16) x 30480 mm (1200 inch)

1шт.

S120317X

HOSE

8 (5/16) ID x 7620 mm (300 inch)

1шт.
