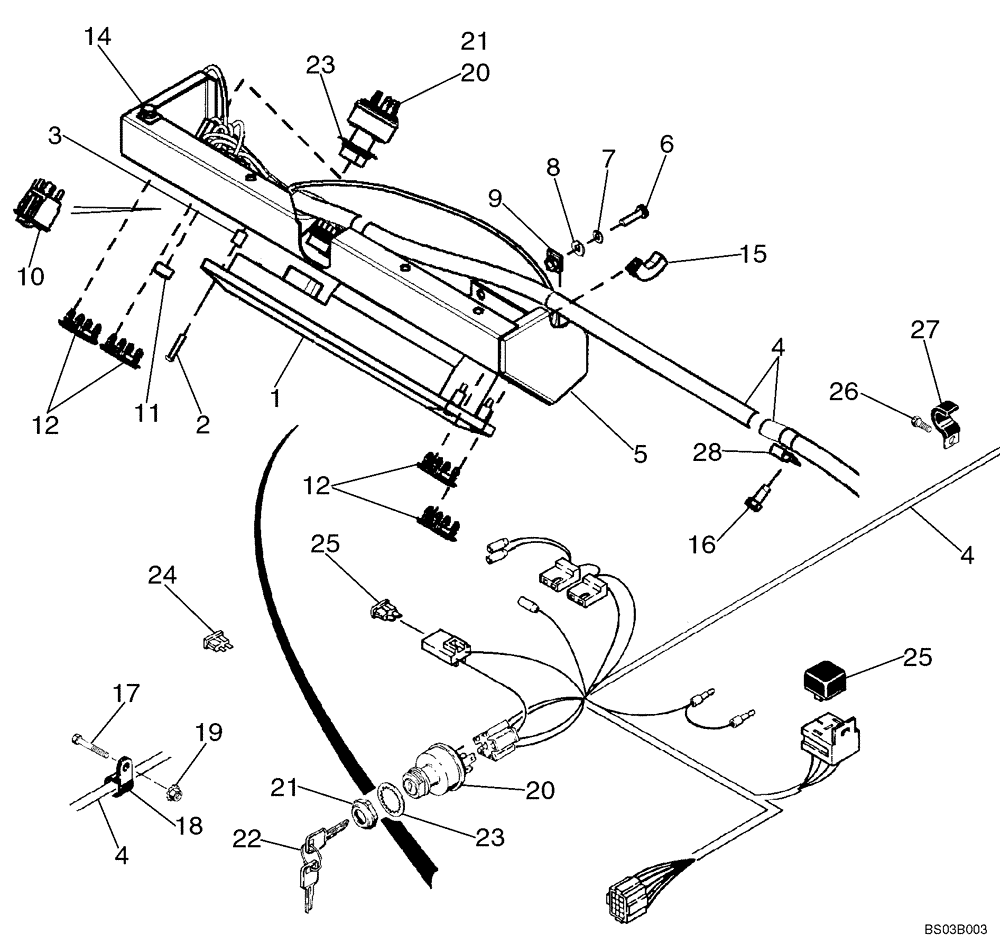

Запчасти Case 1840 (04-05A) - FRONT HARNESS - INSTRUMENT CLUSTER, JAF0286785 - (04) - ELECTRICAL SYSTEMS

North American Models, JAF0286785 -

1шт.

European Models, JAF0289364-

1шт.

1

H438451

CLUSTER, INSTR.

CLUSTER, INSTRUMENT 10 Pin Connector; JAF0078496 - ; No Longer Available, Order 367530A1

1шт.

367530A1R

REMAN-INSTR CLUSTER

1840, Reman For New P/N H438451

1шт.

367530A1C

CORE-CLUSTER, INSTR

Return Number

1шт.

1

367530A1

CLUSTER, INSTR.

CLUSTER, INSTRUMENT 10 Pin Connector; JAF0285319 -

1шт.

367530A1R

REMAN-INSTR CLUSTER

1840

1шт.

367530A1C

CORE-CLUSTER, INSTR

Return Number

1шт.

2

190-103

SCREW,Cross Pan Hd, #10 - 32 x 1"

4шт.

3

D122634

ISOLATOR,12.7mm OD x 14.1mm L

4шт.

4

336559A2

HARNESS

Instrument; Replaces 336559A1; No Longer Available, Order 378849A1

1шт.

4

378849A1

HARNESS

Instrument; Emissions Certified Engine

1шт.

5

340948A1

PANEL, INSTRUMENTS

PANEL, INSTRUMENT

1шт.

6

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

7

492-11025

LOCK WASHER,1/4"

3шт.

8

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

3шт.

9

131-610

SPRING NUT,U, Ret, 1/4"-20

2шт.

10

337264A1

SWITCH

Brake; European Models

1шт.

11

353-407

PLUG,Dome, .687" hole, Nylon

11/16

1шт.

12

86000535

PLUG,1.427" x .62", Plastic

4шт.

14

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

15

D52412

RUBBER STRIP

1270 mm (50 in); Cut From F42827

1шт.

16

276-24812

SELF-TAP SCREW,5/16" - 18 x 3/4"

1шт.

17

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

18

86637976

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

Replaces 515-22190

1шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

282775A1

IGNITION SWITCH

Incl. 20 - 22; Replaces D134737 Switch Which Used A77313 Metal Key Without Padding

1шт.

20

NSS

NOT SOLD SEPARAT

Switch Ignition

1шт.

21

A77314

NUT

1шт.

22

1964831C2

IGNITION KEY

Padded

1шт.

23

493-21104

LOCK WASHER,Int Tooth, 1"

1шт.

24

A149802

FUSE

20 amp; Yellow

1шт.

25

D128310

RELAY

30 amp; Replaces 1983394C1

1-2шт.

26

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

27

H437729

CLIP

4шт.
