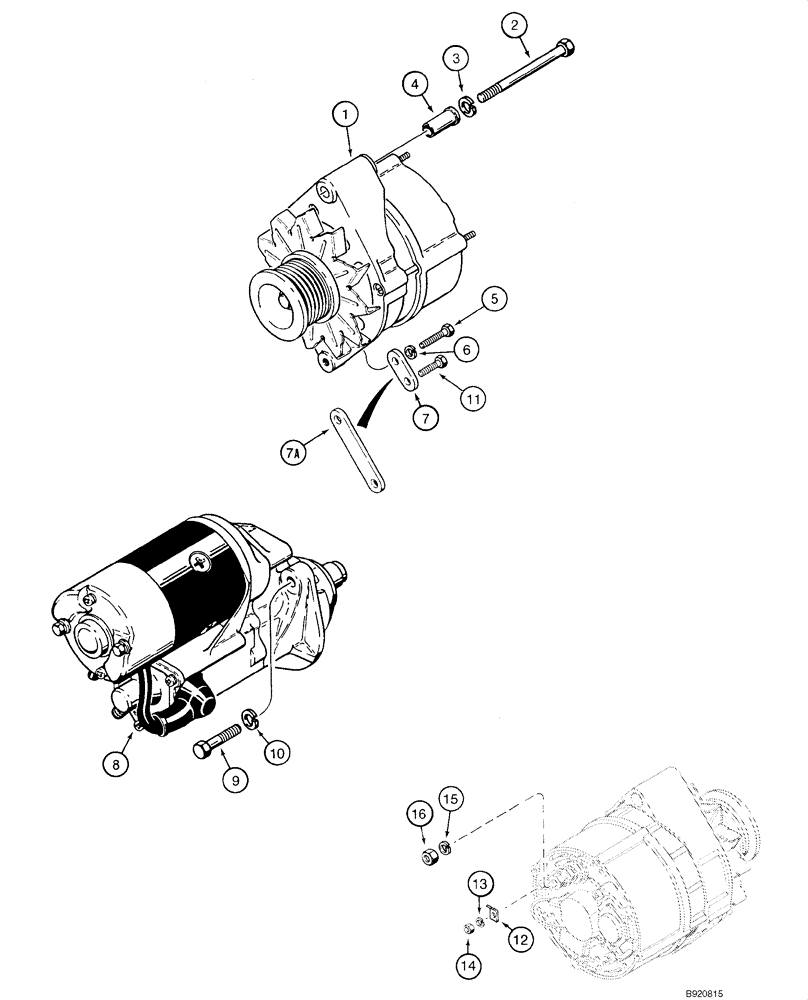

Запчасти Case 1840 (04-04) - STARTER AND ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

Alternator Assy, See Figures 04-01, 04-02

1шт.

2

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

1шт.

3

892-11010

LOCK WASHER,M10

1шт.

4

J902469

SPACER

Alternator Mounting

1шт.

5

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

6

492-11031

LOCK WASHER,5/16"

1шт.

7

J903089

SUPPORT

Alternator Mounting; European Models, - JAF0098065; North American Models, - JAF0118968

1шт.

7a

1998702C1

SUPPORT

2-13/16 inch (72 mm); Alternator Mounting; European Models, JAF0098065 - ; North American Models, JAF0118968 -

1шт.

8

REF

INSTRUCTION

Starter Assy; See Figure 04-03A

1шт.

9

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

North American Models

2шт.

10

892-11010

LOCK WASHER,M10

2шт.

11

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

12

A187990

TERMINAL CONNECTOR,Tin, 0.254 - 1.520mm

Regulator Stud To Harness; REF 12 - 16 Used When Replacing Alternator A186125 With A187873 Male

1шт.

13

892-11005

LOCK WASHER,M5

Ref. 12 - 16 Used when replacing A186125 with A187873

1шт.

14

825-1405

NUT,M5, Cl 8

Ref. 12 - 16 Used when replacing A186125 with A187873

1шт.

15

892-11008

LOCK WASHER,8mm ID

Ref 12 - 16, Used when replacing A186125 with A187873

1шт.

16

825-1408

NUT,M8, Cl 8

Ref 12 - 16 Used when replacing A186125 with A187873

1шт.
