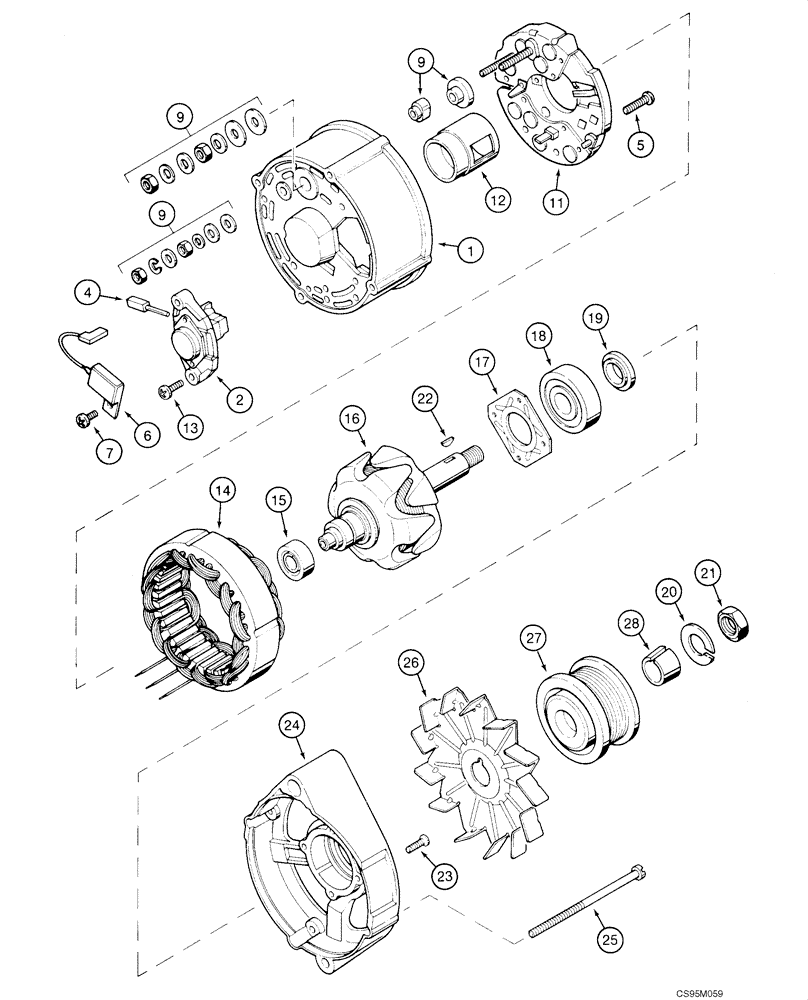

Запчасти Case 1840 (04-02) - ALTERNATOR ASSEMBLY, JAF0066223 - (04) - ELECTRICAL SYSTEMS

A187873

ALTERNATOR,12V, 65A

65 amp, 144 volt; Incl. 1 - 26

1шт.

AR187873

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

AC187873

CORE-ALTERNATOR

Return Number

1шт.

A187873GV

ALTERNATOR

Value, 14V, 65 Amp

1шт.

AR186125GV

ALTERNATOR

Value

1шт.

AR186125

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

AC186125

CORE-ALTERNATOR

Return Number

1шт.

87297230

REMAN-ALTERNATOR

REMANUFACTURED 65 AMP, 12 VOLT BOSCH ALTERNATOR

1шт.

87297231

CORE-ALTERNATOR

Return Number, 65 AMP, 12 VOLT BOSCH ALTERNATOR

1шт.

1

A187903

COVER

Collector; Ring End

1шт.

2

A187906

VOLTAGE REGULATOR

Voltage

1шт.

4

1964968C1

COMMUTATOR BRUSH

Alternator

1шт.

5

A186194

SCREW,M4 x 18mm

Rectifier Bridge Retaining; Replaces A187898, 1530431C1

2шт.

6

3079134R1

CAPACITOR

Alternator

1шт.

7

840-1510

SCREW,Pan, M5 x 10mm, Cl 4.8

Capacitor Retaining; Replaces 1964969C1

1шт.

9

A187904

MULTIPOLE CONNECTOR

Hardware; Terminal

1шт.

11

360330A1

RECTIFIER

Alternator; Replaces A187917

1шт.

12

A187899

INNER SHIELD

Alternator

1шт.

13

A187504

SCREW

Voltage Regulator Retaining; Replaces A187907

2шт.

14

A187995

STATOR

Alternator; Replaces 1964966C1

1шт.

15

A187908

BALL BEARING,12 mm ID x 32 mm OD x 10 mm

Collector; Ring End; Replaces A186186

1шт.

16

1987499C1

ROTOR

Alternator; Replaces 1964964C1

1шт.

17

A187901

FIXING PLATE

Bearing Retaining; Drive End Cover

1шт.

18

A186183

BALL BEARING,17 mm ID x 47 mm OD x 14 mm

Rotor; Drive End

1шт.

3078897R1

SET OF PARTS

Rotor Retaining; Incl. 19 - 23

1шт.

19

NSS

NOT SOLD SEPARAT

Ring; Spacer

1шт.

20

NSS

NOT SOLD SEPARAT

Washer; Rotor Shaft

1шт.

21

NSS

NOT SOLD SEPARAT

Nut; Rotor Shaft

1шт.

22

NSS

NOT SOLD SEPARAT

Key; Pulley Retainer; Not Used In A187873

1шт.

23

NSS

NOT SOLD SEPARAT

Screw; Bearing; Retaining Plate

4шт.

24

A187994

HOUSING

Drive End; Replaces A186182

1шт.

25

A186193

BOLT,Pan, Cross Recess Phillips, M5 x 110mm

4шт.

26

221425R1

FAN

Not Incl. With Alternator Assembly; Order Separately

1шт.

27

J908560

PULLEY

Drive; Not Incl. With Alternator Assembly; Order Separately

1шт.

28

J908563

RETAINER

Pulley; Not Incl. With Alternator Assembly; Order Separately

1шт.
