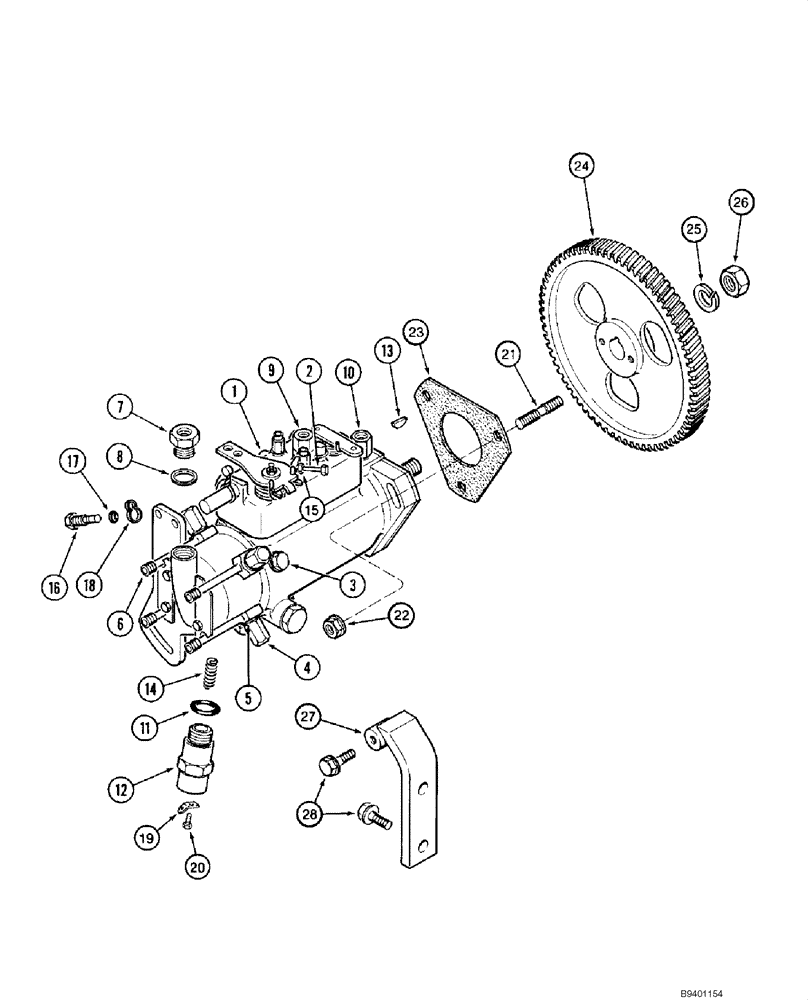

Запчасти Case 1840 (03-06) - FUEL INJECTION PUMP AND DRIVE, 4-390 ENGINE (03) - FUEL SYSTEM

1

J916534

PUMP, FUEL INJECTION

PUMP, INJECTION Incl. 2 - 20

1шт.

1

JR916534

REMAN-INJECTION PUMP

Fuel Injection; Remanufactured; 4-390 Engine

1шт.

1

JC916534

CORE-INJECTION PUMP

Return number

1шт.

1

JC915883

CORE-INJECTION PUMP

Return Number

1шт.

2

J904637

SET SCREW

Low Idle

1шт.

3

K963867

SCREW

Bleed; Pump Head

1шт.

4

J904646

BANJO BOLT

4шт.

5

J904644

WASHER

9шт.

6

K962755

ADAPTER

4шт.

7

J904641

FITTING

Inlet

1шт.

8

K962748

WASHER

Inlet Fitting; Copper

1шт.

9

J904640

VENT

Bleed

1шт.

10

J904643

FITTING

Return

1шт.

11

J904635

O-RING

Solenoid

1шт.

12

J904630

SOLENOID

12 volt; Shut Down

1шт.

13

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

Replaces J902332

1шт.

14

J904777

SPRING

1шт.

15

J904634

LOCK NUT

No. 10 NF

1шт.

16

J904778

BOLT

Locking Device

1шт.

17

J904780

SEAL

Locking Bolt

1шт.

18

J904779

WASHER

1шт.

19

A187990

TERMINAL CONNECTOR,Tin, 0.254 - 1.520mm

; Adapter Male

1шт.

20

A77413

SCREW,Hex, M5 x 8mm

5 x 8 mm

1шт.

21

J902501

STUD

8 - 1.25 x 48 mm; Pump Mounting

3шт.

22

J900589

NUT

8 mm

3шт.

23

J914389

GASKET

Pump Mounting

1шт.

24

87590645

GEAR

Drive Gear; Replaces J936021, J912885, J920594

1шт.

25

492-11056

LOCK WASHER,9/16"

(Replaces 192-24)

1шт.

26

J903738

NUT

14 mm - 2.0

1шт.

27

J905387

BRACE

Fuel Pump

1шт.

28

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.
