Запчасти Case 1840 (03-01) - FUEL INJECTION SYSTEM, 4-390 ENGINE (03) - FUEL SYSTEM

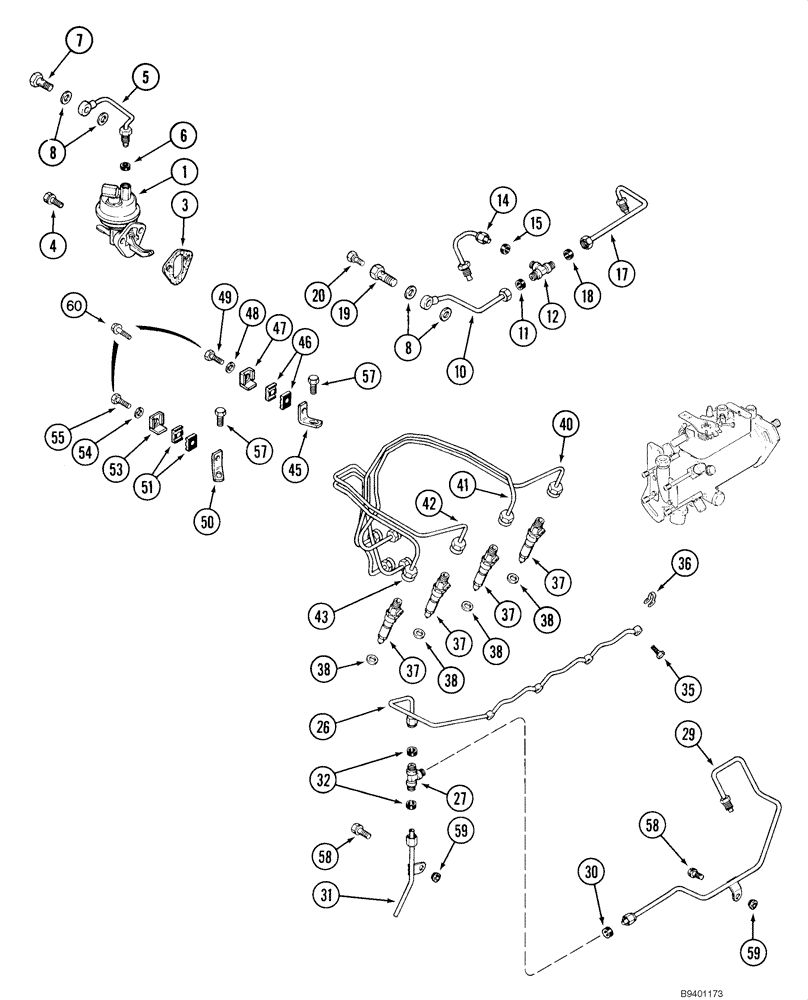

Схема запчастей Case 1840 - (03-01) - FUEL INJECTION SYSTEM, 4-390 ENGINE (03) - FUEL SYSTEM
5
41
26
11
12
15
38
50
60
46
14
59
1
18
57
58
29
6
8
10
32
54
30
53
4
20
57
37
37
17
8
3
59
55
31
47
38
45
37
7
40
36
42
49
35
19
58
37
48
51
38
38
27
43

Артикул

Название

Примечание

Количество

1

J904374

PUMP

Lift; Fuel; No Longer Available, Order J928143

1шт.

1

J928143

PUMP

1шт.

3

J939258

GASKET,1.21mm Thk

Mounting; Fuel Transfer Pump; Replaces J914304

1шт.

4

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

5

J905649

FUEL TUBE,8 mm OD x 233.5 mm L

Fuel Supply; Lift Pump To Filter; Incl. 6

1шт.

6

222-101

SLEEVE,3/16" Tube

3/16 inch tube OD

1шт.

7

J903035

BANJO BOLT

12 - 1.5 x 24 mm

1шт.

8

87415913

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

12 mm

4шт.

10

J905364

FUEL TUBE

Fuel Supply; Filter To Tee; Incl. 11

1шт.

11

222-103

SLEEVE,5/16" Tube

1шт.

12

J905353

TEE

9/16 inch NF; Incl. 222-663

1шт.

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

5/16 tube OD x 1/2-24 in; Remove And Discard Hex Nuts Before Assembly

3шт.

14

J905375

FUEL TUBE,8 mm OD x 137.6 mm L

Fuel Supply; Tee To Rear Of Injection Pump; Incl. 15

1шт.

15

222-103

SLEEVE,5/16" Tube

1шт.

17

J905363

FUEL TUBE,8 mm OD x 256.8 mm L

Fuel Supply; Tee To Front Of Injection Pump; Incl. 18

1шт.

18

222-103

SLEEVE,5/16" Tube

1шт.

J905860

BANJO BOLT

Assy; Incl. 19, 20

1шт.

19

NSS

NOT SOLD SEPARAT

Bolt

1шт.

20

NSS

NOT SOLD SEPARAT

Screw; Vent

1шт.

26

J909695

FUEL TUBE

Manifold; Fuel Drain

1шт.

27

222-121

TEE,3/16", Flex Tubing

Incl. 222-661

1шт.

222-661

TUBE NUT,3/8"-24, 45 Degree Fl, Comp

3/16 tube OD; Remove and discard hex nuts before assembly

3шт.

29

J925882

FUEL TUBE,4.76 mm OD x 662.1 mm L

Fuel Drain; Tee To Pump; Replaces J905703; Incl. 30

1шт.

30

222-103

SLEEVE,5/16" Tube

1шт.

31

J905692

FUEL TUBE

Fuel Return; Tee To Fuel Tank; Incl. 32

1шт.

32

222-103

SLEEVE,5/16" Tube

2шт.

35

J905307

BANJO BOLT,M6 x 1 x 14.30mm

4шт.

36

J903380

SEAL

Connector

4шт.

37

REF

INSTRUCTION

Injector Assembly; See Figure 03-09, 03-10

4шт.

38

REF

INSTRUCTION

Seal; Injector; See Figure 03-09, 03-10

4шт.

40

J903522

FUEL TUBE,2 mm ID x 6.4 mm OD x 643.1 mm L

Fuel Injector; No. 1 Cylinder

1шт.

41

J903523

FUEL TUBE,2 mm ID x 6.4 mm OD x 645.3 mm L

Fuel Injector; No. 2 Cylinder

1шт.

42

J903524

FUEL TUBE

Fuel Injector; No. 3 Cylinder

1шт.

43

J903525

FUEL TUBE

Fuel Injector; No. 4 Cylinder

1шт.

45

J919294

SUPPORT

Fuel Tube; No Longer Available, Order J930689

1шт.

45

J930689

SUPPORT

1шт.

46

J917746

CLAMP

Fuel Tube

2шт.

47

CURJ904711

CLAMP

Fuel Tube; Clamp

1шт.

48

J903723

WASHER

6 x 10 x 1 mm

1шт.

49

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

If Used

1шт.

50

J919292

SUPPORT

Fuel Tube; No Longer Available, Order J930688

1шт.

50

J930688

SUPPORT

1шт.

51

J917746

CLAMP

Fuel Tube

2шт.

53

CURJ904711

CLAMP

Fuel Tube

1шт.

54

J903723

WASHER

6 x 10 x 1 mm

1шт.

55

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

If Used

1шт.

57

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

2шт.

58

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

59

J900267

SEAL

Cover Bolt

2шт.

60

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

If Used

2шт.

Выбрано товаров: 50
