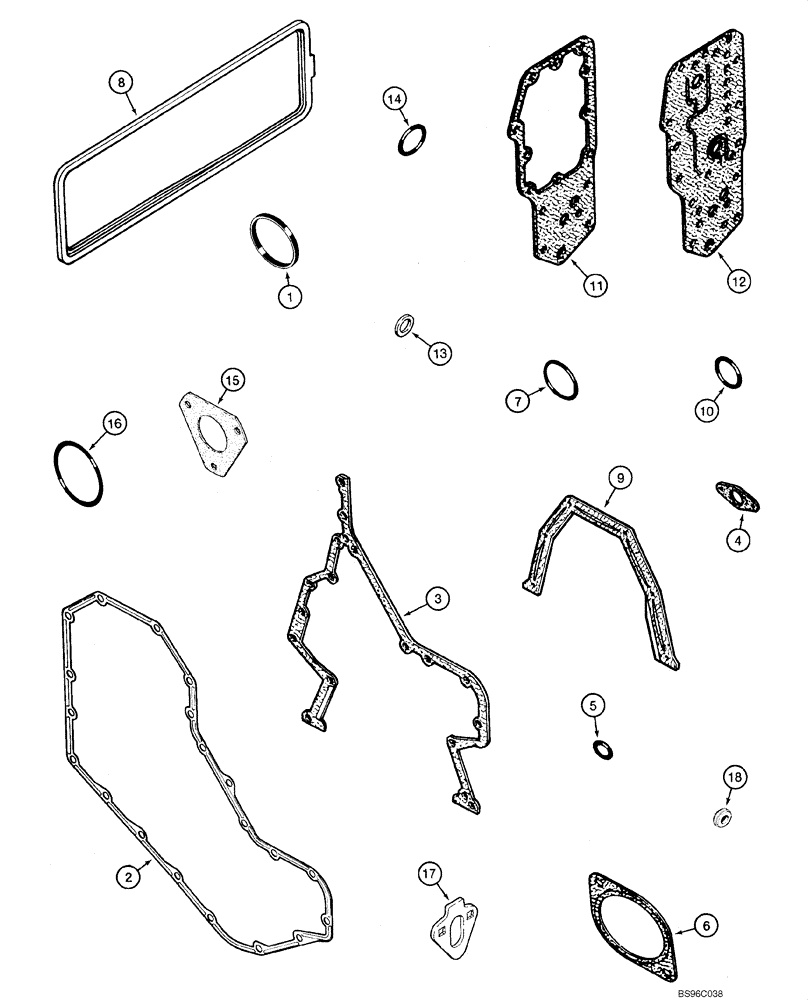

Запчасти Case 1840 (02-41) - GASKET KIT - CYLINDER BLOCK, 4-390 EMISSIONS CERTIFIED ENGINE (INJECTION PUMP J935679) (02) - ENGINE

A77860

GASKET KIT

Gasket; Cylinder Block; Incl. 1 - 12

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

Front Access Cover; See Figure 02-09, 02-10

1шт.

2

J914385

GASKET,1.02mm Thk

Front Cover; See Figure 02-10

1шт.

3

J938156

GASKET,0.79mm Thk

Gear Housing; Replaces J931351; See Figure 02-09, 02-10

1шт.

4

J905595

GASKET

Timing Pin Housing; Not Used In This Application

1шт.

5

J913994

O-RING

Timing Pin; See Figure 02-09, 02-10

1шт.

6

J929751

GASKET

Access Cover Plate; Accessory Drive; Not Used In This Application

1шт.

7

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

Water Pump to Cylinder Block; See Figure 02-07

1шт.

8

J283767

GASKET,7.4mm Thk

Tappet Cover; Not Used In This Application

1шт.

9

J938159

GASKET

Rear Cover Retainer; Replaces J928493; See Figure 02-28

1шт.

10

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID; Crankshaft; See Figure 02-25, 02-26

1шт.

11

J942914

GASKET

Oil Cooler Core; See Figure 02-14

1шт.

12

J929792

GASKET,1.2mm Thk

Filter Head

1шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

See Figure 02-16

1шт.

14

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

38 mm ID; Not Used In This Application

1шт.

15

J931607

GASKET

Mounting; Not Used In This Application

1шт.

16

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING See Figure 02-30

1шт.

17

J939258

GASKET,1.21mm Thk

Mounting; Replaces J931059; See Figure 03-03

1шт.

18

J928759

SEALING WASHER

See Figure 02-25, 02-26

6шт.
