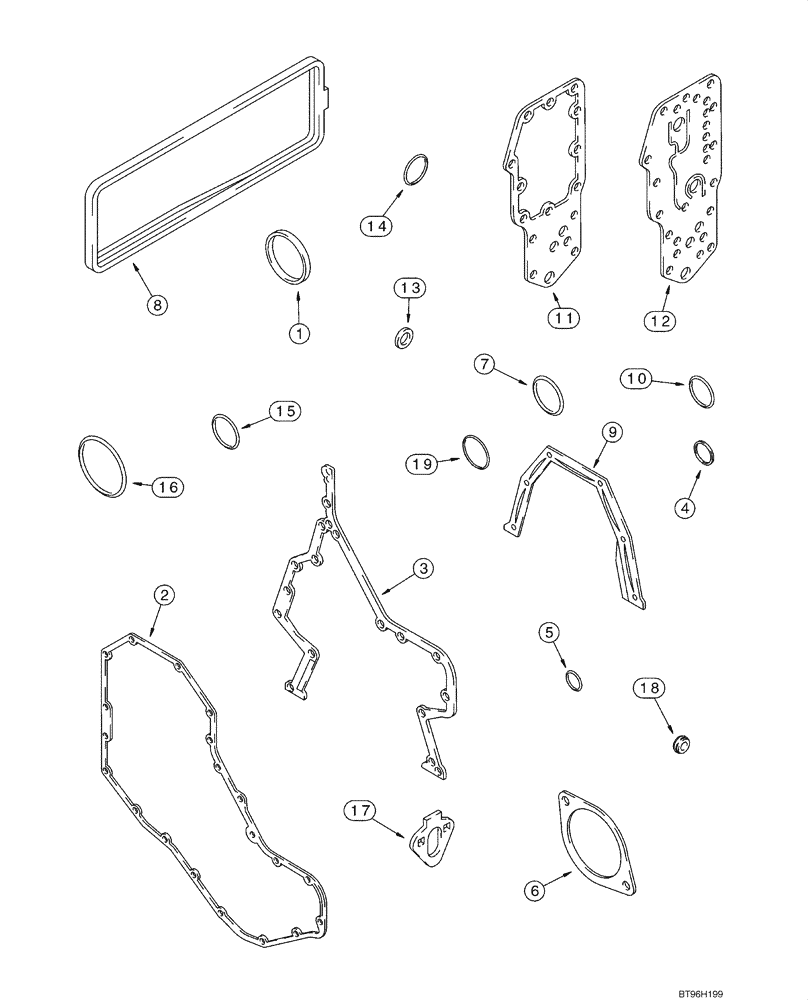

Запчасти Case 1840 (02-40) - GASKET KIT - CYLINDER BLOCK, 4-390 EMISSIONS CERTIFIED ENGINE (INJECTION PUMP J933090) (02) - ENGINE

A77864

SEAL PACKAGE

Gasket; Cylinder Block; Incl. 1 - 19

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

Front Access Cover; See Figure 02-09, 02-10

1шт.

2

J918673

GASKET,1.02mm Thk

Front Cover; See Figure 02-09, 02-10

1шт.

3

J938156

GASKET,0.79mm Thk

Gear Housing; See Figure 02-09, 02-10; Replaces J931351

1шт.

4

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING Timing Pin Housing; See Figure 02-09, 02-10

1шт.

5

J913994

O-RING

Timing Pin; See Figure 02-09, 02-10

1шт.

6

J929751

GASKET

Access Cover Plate; Accessory Drive; Not Used In This Application

1шт.

7

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

Water Pump to Cylinder Block; See Figure 02-07

1шт.

8

J283767

GASKET,7.4mm Thk

Tappet Cover; Not Used In This Application

1шт.

9

J938159

GASKET

Rear Cover Retainer; Replaces J928493, J928493; Crankshaft; See Figure 02-28

1шт.

10

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID; Water Inlet Connection; See Figure 02-25, 02-26

1шт.

11

J942914

GASKET

Oil Cooler Core; See Figure 02-14

1шт.

12

J929792

GASKET,1.2mm Thk

Filter Head

1шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

Plug; Oil Pan; Not Used In This Application

1шт.

14

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

38 mm (1-1/2 inch) ID; Engine Oil Fill Tube; See Figure 02-25, 02-26

1шт.

15

J929457

O-RING

Oil Filter Plug; See Figure 02-14

1шт.

16

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING Flywheel Housing To Block; See Figure 02-30

1шт.

17

J939258

GASKET,1.21mm Thk

Mounting; Fuel Transfer Pump; See Figure 03-03, 03-05; Replaces J931348

1шт.

18

J928759

SEALING WASHER

Cover Bolt; See Figure 02-25, 02-26

4шт.

19

J930993

O-RING

Not Used In This Application

1шт.
