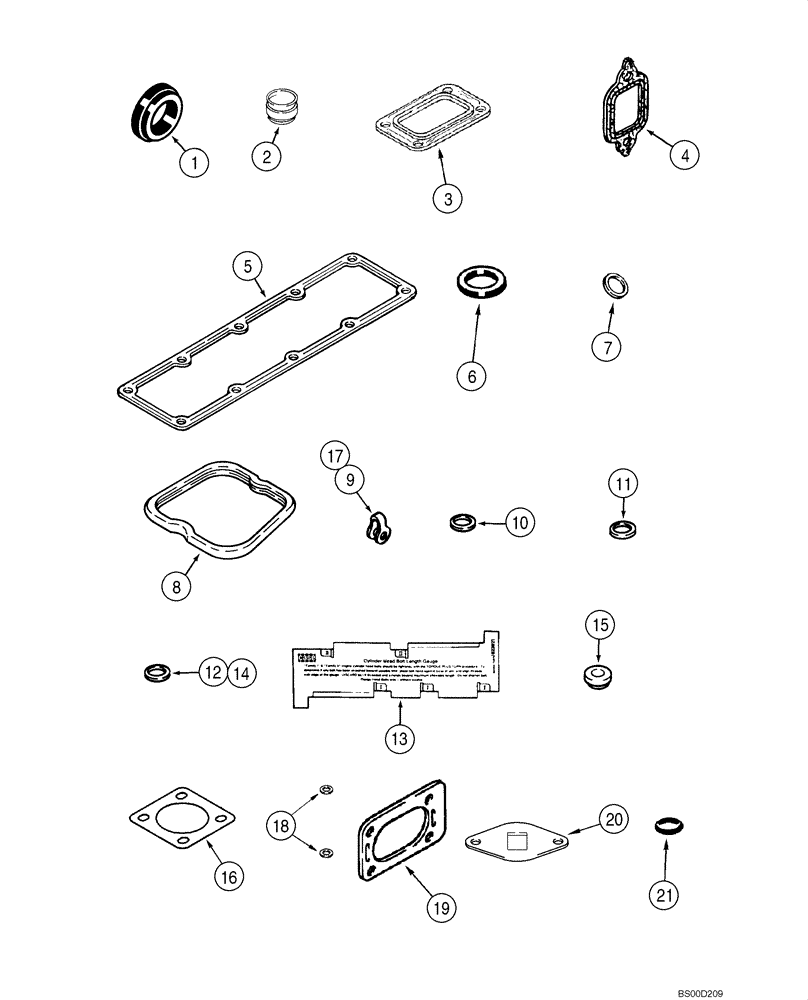

Запчасти Case 1840 (02-39) - GASKET KIT - VALVE GRIND, 4-390 EMISSIONS CERTIFIED ENGINE (INJECTION PUMP J935679) (02) - ENGINE

87405727

ENGINE GASKET KIT

Incl. 1 - 21; Replaces A77975, A77672, A77870, A77911, A77931, A77792

1шт.

1

J923331

GASKET

Housing; See Figure 02-18

1шт.

2

J921640

SEAL

See Figure 02-21

8шт.

3

J919369

GASKET,0.5mm Thk

Mounting; Not Used In This Application

1шт.

4

J927154

GASKET,0.38mm Thk

Manifold; Exhaust; See Figure 02-12

4шт.

5

J938153

MANIFOLD GASKET,0.8mm Thk

Manifold; Intake; See Figure 02-12

1шт.

6

J936876

SEALING RING,30mm ID x 48mm OD x 2.8mm Thk

Not Used In This Application

1шт.

7

J900808

SEAL

See Figure 03-09

4шт.

8

J930906

GASKET

See Figure 02-18

4шт.

9

J903380

SEAL

See Figure 03-03

4шт.

10

J937142

SEAL,7mm ID x 15mm OD x 1.5mm Thk

1,5 mm tip; Not Used In This Application

4шт.

11

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

See Figure 03-11, 03-12

4шт.

12

J923261

WASHER,7.2mm ID x 15mm OD x 2.5mm Thk

2,5 mm tip; See Figure 03-03

4шт.

13

87404692

GAUGE

1шт.

14

J930324

SEAL

0,5 mm tip; See Figure 03-0, 03-11

4шт.

15

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

See Figure 02-18

4шт.

16

J912220

GASKET,0.4mm Thk

See Figure 02-02

1шт.

17

J903380

SEAL

See Figure 03-02

1шт.

18

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

See Figure 03-05

2шт.

19

J914856

GASKET,1.02mm Thk

Mounting; Not Used In This Application

1шт.

20

J937706

GASKET,0.79mm Thk

Mounting; Not Used In This Application

1шт.
