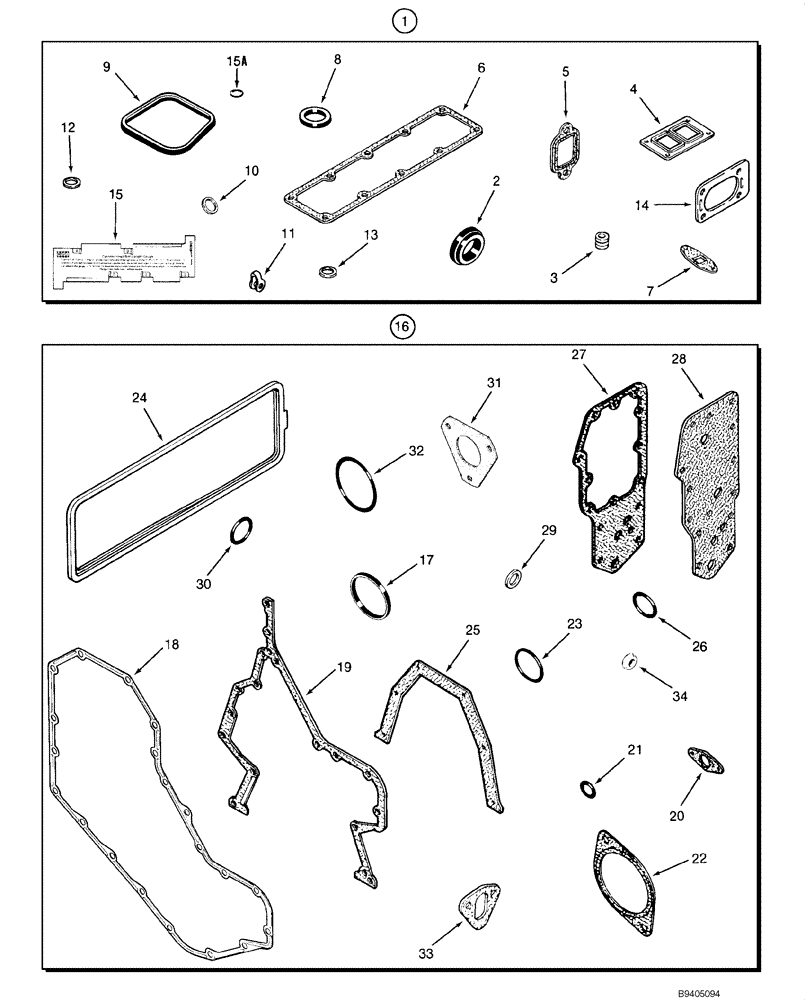

Запчасти Case 1840 (02-35) - GASKET KIT - VALVE GRIND, 4-390 ENGINE (02) - ENGINE

1

A77672

GASKET KIT

Valve Grind; Incl. 2 -15A; - 44511033, Engines With 9 mm Fuel Injection Nozzle; Also Order Required Cylinder Head Gasket, See Figure 02-17, REF 2; No Longer Available, Order 87405727, See Figure 02-39

1шт.

1

A77792

GASKET KIT

Valve Grind; Incl. 2 - 15A; 44511034 - ; Engines With 7 mm Fuel Injection Nozzle; Also Order Required Cylinder Head Gasket, See Figure 02-17, REF 2; No Longer Available, Order 87405727, See Figure 02-39

1шт.

2

J923331

GASKET

Thermostat Housing; Replaces J920020; See Figure 02-17, 02-18

1шт.

3

J901097

SEAL

Intake And Exhaust; See Figure 02-19, 02-20

8шт.

4

J901356

GASKET,0.5mm Thk

Turbocharger To Manifold; Not Used In This Application

1шт.

5

J905443

MANIFOLD GASKET

Exhaust Manifold; No Longer Available, Order J927154, See Figure 02-11

4шт.

5

J927154

GASKET,0.38mm Thk

See Figure 02-11

4шт.

6

J914028

GASKET

Intake Manifold; No Longer Available, Order J938153, See Figure 02-11

1шт.

6

J938153

MANIFOLD GASKET,0.8mm Thk

See Figure 02-11

1шт.

7

J914388

GASKET

Turbo Oil Drain Tube; Not Used In This Application

1шт.

8

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

Oil Fill Cap; See Figure 02-10

1шт.

9

J902666

GASKET

Rocker Arm Cover; See Figure 02-17; No Longer Available, Order J930906, See Figure 02-17

4шт.

9

J930906

GASKET

See Figure 02-17

4шт.

10

J900808

SEAL

Injection Nozzle, 9 mm Injector Tip; See Figure 03-09

4шт.

11

J903380

SEAL

Connector; See Figure 03-01, 03-03

4шт.

12

J906659

SEAL

Injection Nozzle, 7 mm Injector Tip; See Figure 03-10

4шт.

13

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

Body To Nut; See Figure 03-09, 03-10; 7 mm

4шт.

14

J914856

GASKET,1.02mm Thk

Not Used In This Application

1шт.

15

J823921

GAUGE

Cylinder Head; Bolt Length; Use With A77792

1шт.

15a

J282133

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

Cover Bolt; See Figure 02-17; No Longer Available; Order J910824

4шт.

15a

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

See Figure 02-17

4шт.

16

A77671

GASKET KIT

Engine Block; Incl. 16 - 34; No Longer Available, Order A77860, See Figure 02-41

1шт.

17

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

Front Access Cover; See Figure 02-08, 02-09

1шт.

18

J914385

GASKET,1.02mm Thk

Front Cover; See Figure 02-08

1шт.

19

J916131

GASKET

See Figure 02-08; No Longer Available, Order J938156

1шт.

19

J938156

GASKET,0.79mm Thk

Gear Housing; See Figure 02-08

1шт.

20

J905595

GASKET

Timing Pin Housing; Not Used In This Application

1шт.

21

J913994

O-RING

1шт.

22

J919601

GASKET

Access Cover Plate; See Figure 02-08; Replaces J913192; No Longer Available, Order 144169C2

1шт.

22

144169C2

GASKET,0.79mm Thk

See Figure 02-08

1шт.

23

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

Water Pump; See Figure 02-06

1шт.

24

J922078

GASKET

Tappet Cover; Replaces J904056; Not Used In This Application

1шт.

25

J914386

GASKET

Rear Cover Retainer; Crankshaft; Not Used In This Application

1шт.

26

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID; Water Inlet Connection; See Figure 02-24

1шт.

27

J926760

GASKET

Oil Cooler Core; Replaces J914387 and J918256; See Figure 02-13

1шт.

28

J918257

GASKET

Filter Head; Replaces J912532; See Figure 02-13; No Longer Available, Order J929792

1шт.

28

J929792

GASKET,1.2mm Thk

See Figure 02-13

1шт.

29

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

Plug; Oil Pan; See Figure 02-15

1шт.

30

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

38 mm (1-1/2 inch) ID; Engine Oil Fill Tube; See Figure 02-24

1шт.

31

J914389

GASKET

Pump Mounting; Fuel Injection; See Figure 03-06

1шт.

32

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING Flywheel Housing To Block; See Figure 02-29

1шт.

33

J914304

GASKET

Mounting; Fuel Transfer Pump; Not Used In This Application

1шт.

34

J900267

SEAL

Cover Bolt; See Figure 03-01

4шт.
