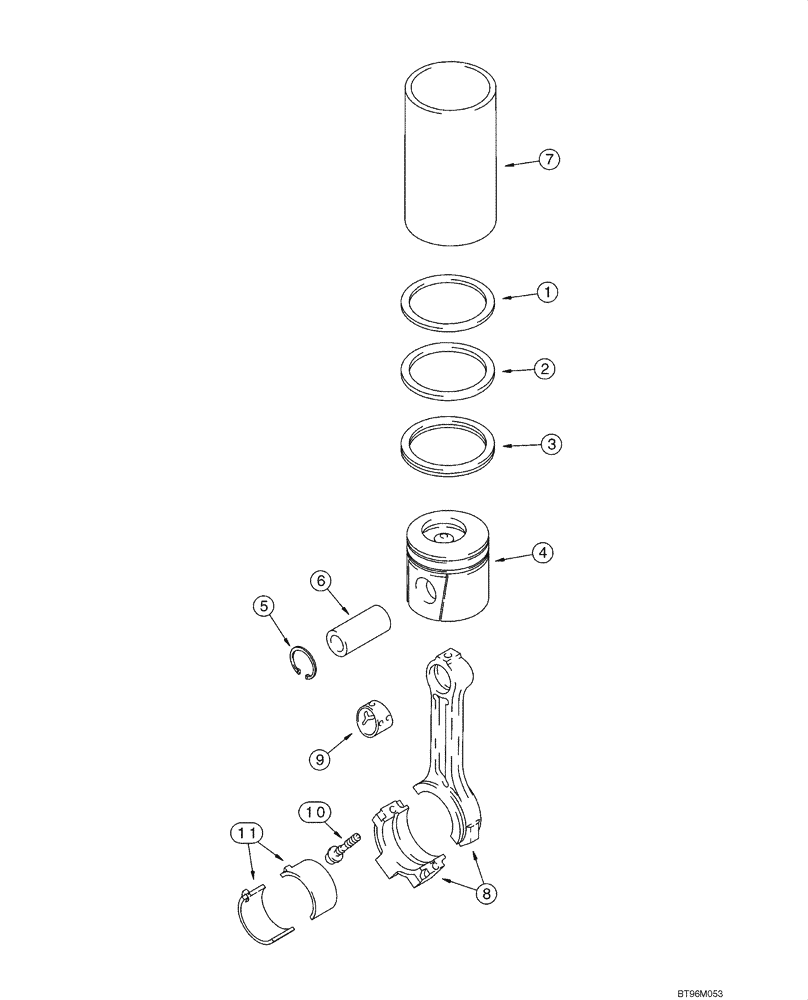

Запчасти Case 1840 (02-32) - PISTONS - CONNECTING RODS, 4-390 EMISSIONS CERTIFIED ENGINE, - 45636369 (INJECTION PUMP J933090) (02) - ENGINE

.

- 45636369

1шт.

J800345

PISTON & RINGS KIT

Piston, Standard; Use To Service 3934975 Piston

4шт.

J800349

PISTON & RINGS KIT

Piston, Standard; Use To Service 3934976 Piston

4шт.

J804980

PISTON & RINGS KIT

Standard; Use To Service 3932514 Piston; Incl. 1 - 5

4шт.

J804930

PISTON RING SET

Standard; Incl. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Ring; Compression; Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring; Compression; Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring; Oil;Piston

1шт.

4

NSS

NOT SOLD SEPARAT

Piston, Standard

1шт.

5

J920691

SPECIAL RING

Replaces J901706

2шт.

6

J934047

PIN,40mm OD x 82.68mm L

Replaces J919053

1шт.

J800684

SET OF PARTS

Piston; Incl. 1 - 5

4шт.

J804931

PISTON RING SET

Oversize 0.5 mm; Incl. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Ring; Compression; Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring; Compression; Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring; Oil; Piston

1шт.

4

NSS

NOT SOLD SEPARAT

Piston, Oversize 0.5 mm

1шт.

5

J920691

SPECIAL RING

Replaces J901706

2шт.

6

J934047

PIN,40mm OD x 82.68mm L

Replaces J919053

1шт.

J800685

SET OF PARTS

Oversize 1.0 mm; Incl. 1 - 5

4шт.

J804932

PISTON RING SET

Oversize 1.0 mm; Incl. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Ring; Compression; Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring; Compression; Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring; Oil; Piston

1шт.

4

NSS

NOT SOLD SEPARAT

Piston, Oversize 1.0 mm

1шт.

5

J920691

SPECIAL RING

Replaces J901706

2шт.

6

J934047

PIN,40mm OD x 82.68mm L

Replaces J919053

1шт.

7

J904166

SLEEVE

Piston; Used Only In Engine Block Repair; When liner is installed, use J800345, J800349, or J804980 standard piston kit

1шт.

8

J942581

ROD, CONNECTING

Connecting Rod; New; Incl. Both Halves; Incl. 8 - 10; Machined Rods; Machined Rods and Fractures Rods Can Not Be Used In The Same Engine Due To Weight Differences

4шт.

8

JR942581

REMAN-CONNECTING ROD

Machined Rod

4шт.

8

JC942581

CORE-ROD CONNECTING

Return Number

4шт.

9

J941476

BUSHING

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

2шт.

11

A77894

BEARING SET,69mm ID x 73.53mm OD x 31mm W

Standard; Upper And Lower Set

4шт.

11

A77466

BEARING SET

Oversize 0.25 mm; Upper And Lower Set

4шт.

11

A77467

BEARING LINER

Oversize 0.50 mm; Upper And Lower Set

4шт.

11

A77468

BEARING SET

Oversize 0.75 mm; Upper And Lower Set

4шт.

11

A77469

BEARING SET

Oversize 1.00 mm; Upper And Lower Set

4шт.

8

87413279

ROD, CONNECTING

ASSY Incl. 8 - 10; If Used; Fractured Split; Machined Rods and Fractures Rods Can Not Be Used In The Same Engine Due To Weight Differences

4шт.

8

87417069

REMAN-CONNECTING ROD

Fractured Split

4шт.

8

87417070

CORE-ROD CONNECTING

Return Number

4шт.

9

87403209

BUSHING,40.03mm ID x 43.1mm OD x 38.1mm L

1шт.

10

87413283

BOLT,Flng, M11 x 1.25 x 58mm, Cl 10.9

M11 x 59

2шт.

11

87425525

CRANKSHAFT BEARING

Standard

4шт.

11

87425526

CRANKSHAFT BEARING

Undersize; 0.25 mm

4шт.

11

87425527

BEARING SET

Undersize; 0.50 mm

4шт.

11

87425528

CRANKSHAFT BEARING

Undersize; 0.75 mm

4шт.

11

87425529

CRANKSHAFT BEARING

Undersize; 1.00 mm

4шт.
