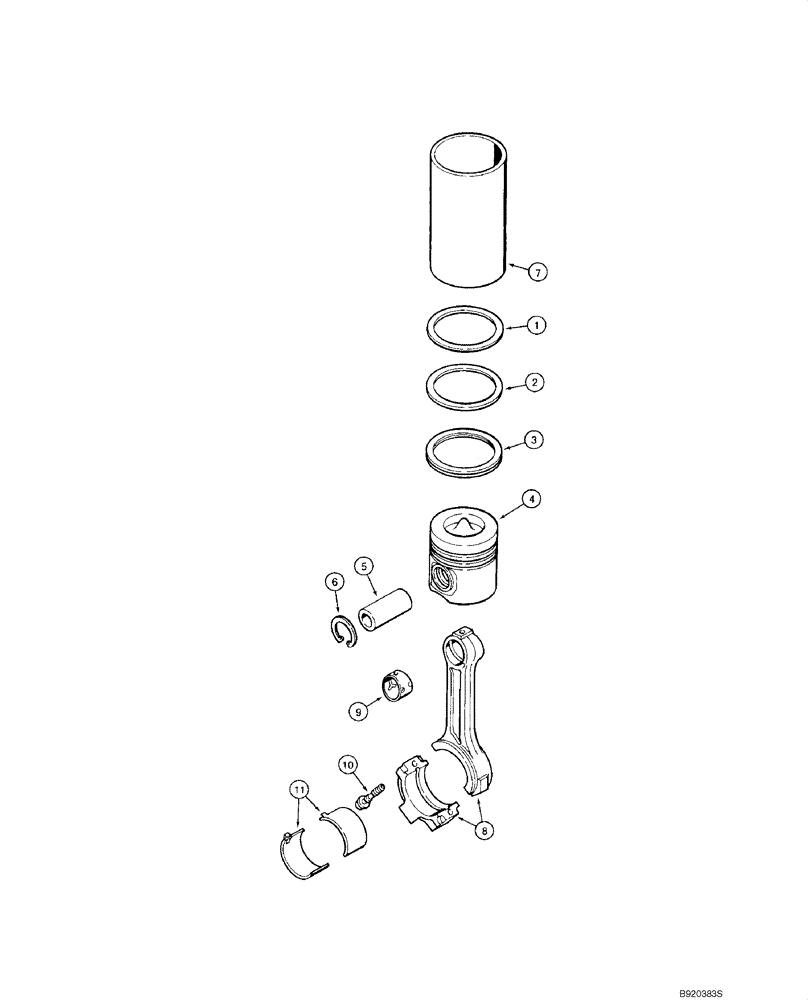

Запчасти Case 1840 (02-31) - PISTONS - CONNECTING RODS, 4-390 ENGINE (02) - ENGINE

A77410

PISTON

Standard; Incl. A77401, 1 - 6

4шт.

A77401

PISTON RING SET

Standard; Incl. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Ring; Compression; Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring; Compression; Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring; Oil; Bottom

1шт.

4

NSS

NOT SOLD SEPARAT

Piston, Standard; Stamped 6223

1шт.

5

J934048

PISTON PIN,40mm OD x 75.68mm L

Replaces J901793

1шт.

6

J920691

SPECIAL RING

Replaces J901706

2шт.

A77411

PISTON

Oversize 0.5 mm; Incl. A77464, 1 - 6

4шт.

A77463

PISTON RING SET

Oversize 0.5 mm; Incl. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Ring; Compression; Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring; Compression; Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring; Oil; Bottom

1шт.

4

NSS

NOT SOLD SEPARAT

Piston, Oversize 0.5 mm; Stamped 6209; Replaces J901793

1шт.

5

J934048

PISTON PIN,40mm OD x 75.68mm L

Replaces J901793

1шт.

6

J920691

SPECIAL RING

Replaces J901706

2шт.

A77412

PISTON

Oversize 1.0 mm

4шт.

A77464

PISTON RING SET

Oversize 1.0 mm

1шт.

1

NSS

NOT SOLD SEPARAT

Ring; Compression; Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring; Compression; Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring; Oil; Bottom

1шт.

4

NSS

NOT SOLD SEPARAT

Piston, Oversize 1.0 mm

1шт.

4

NSS

NOT SOLD SEPARAT

Piston, Oversize 1.0 mm; Stamped 6208

1шт.

5

J934048

PISTON PIN,40mm OD x 75.68mm L

Replaces J901793

1шт.

6

J920691

SPECIAL RING

Replaces J901706

2шт.

7

J904166

SLEEVE

Piston; Used Only In Engine Block Repair (When liner is installed, use A77410 piston kit)

1шт.

JR925232

ROD

Connecting Rod; Remanufactured; North America Only; Replaces JR901569

1шт.

JC925232

CORE-ROD CONNECTING

CORE-CONNECTING ROD Return Number; Replaces JC901569

1шт.

J925232

ROD, CONNECTING

Replaces J901569; Incl. 8 - 10

4шт.

84145405R

REMAN-CONNECTING ROD

1840, Reman For New P/N J925232

4шт.

84145405C

CORE-ROD CONNECTING

Return Number

1шт.

8

NSS

NOT SOLD SEPARAT

Connecting Rod; Incl. Both Halves

1шт.

9

J901085

BUSHING

Connecting Rod

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

2шт.

11

A77465

BEARING SET

Standard; Upper And Lower Set

4шт.

11

A77466

BEARING SET

Oversize 0.25 mm; Upper And Lower Set

4шт.

11

A77467

BEARING LINER

Oversize 0.50 mm; Upper And Lower Set

4шт.

11

A77468

BEARING SET

Oversize 0.75 mm; Upper And Lower Set

4шт.

11

A77469

BEARING SET

Oversize 1.00 mm; Upper And Lower Set

4шт.
