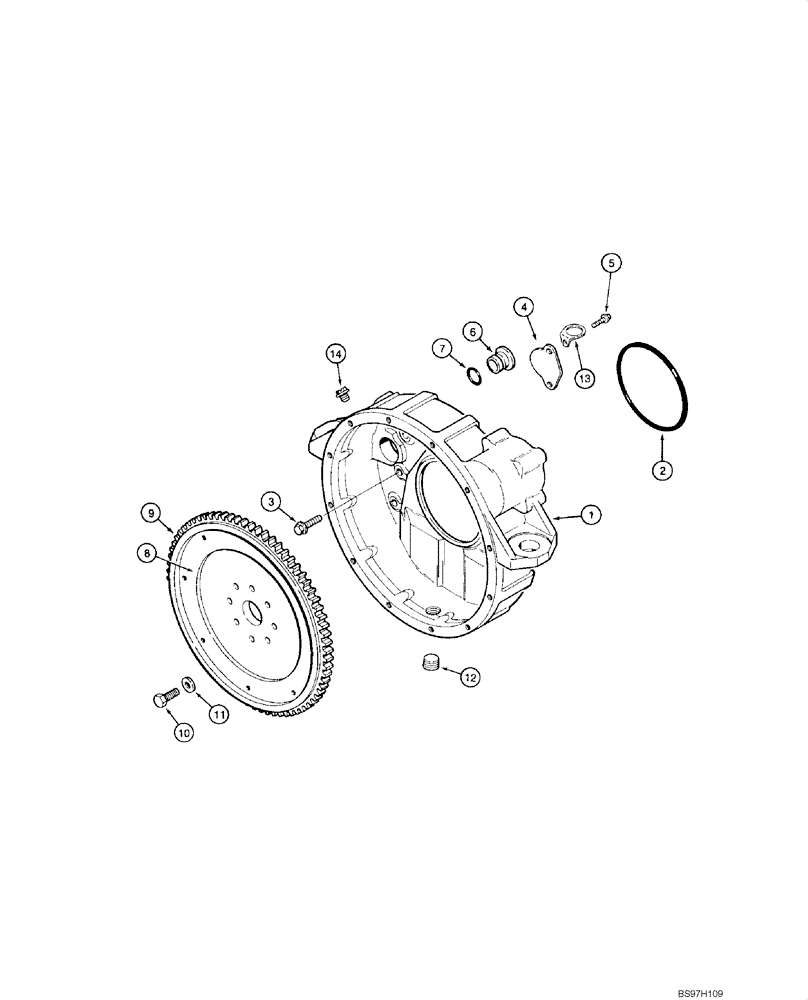

Запчасти Case 1840 (02-30) - FLYWHEEL AND HOUSING, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

J931714

HOUSING

Flywheel

1шт.

2

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING Flywheel Housing To Block

1шт.

3

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

8шт.

4

J925234

PLATE

1шт.

5

J912072

SELF-TAP SCREW

8 - 1.25 x 16 mm; Replaces 613-8016

2шт.

6

J910248

PLUG

Flywheel Housing

1шт.

7

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

Flywheel Housing

1шт.

8

87588507

FLYWHEEL

Crankshaft; Replaces J902569; Incl. Ring Gear, REF 9

1шт.

9

87566619

RING, FLYWHEEL

Ring Gear; Replaces J901774

1шт.

10

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

Flywheel Bolt

8шт.

11

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

8шт.

12

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

1шт.

13

J928989

CLIP

1шт.

14

353-225

PLUG,Sltd Hd, 3/4"-16

1шт.
