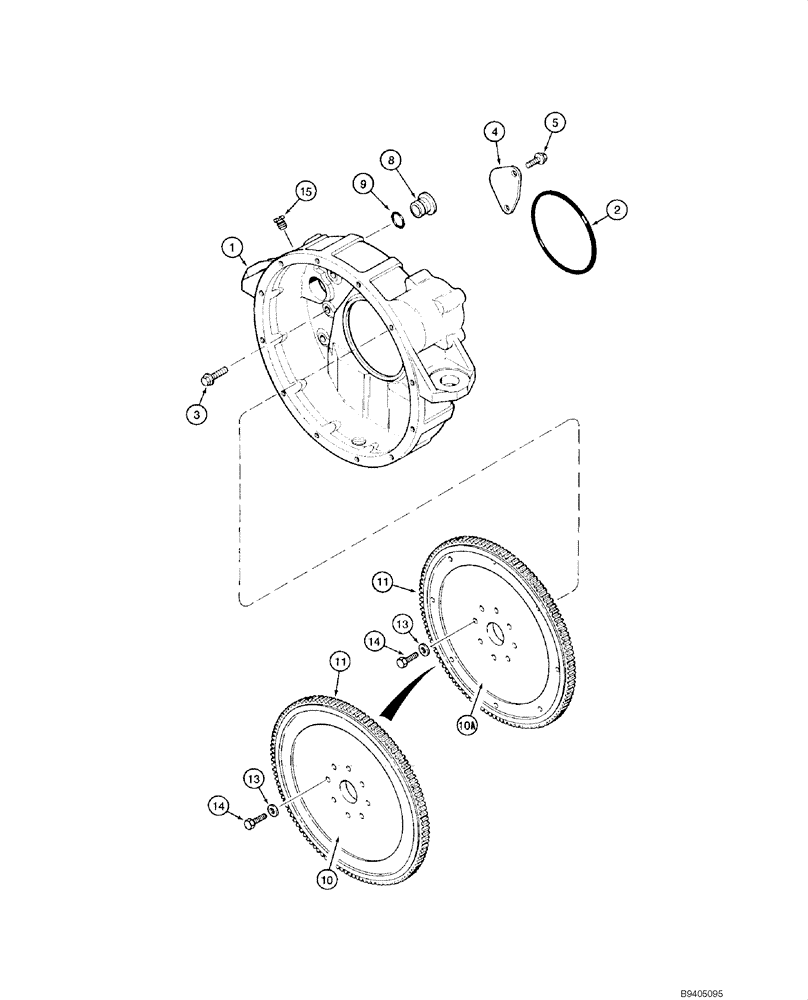

Запчасти Case 1840 (02-29) - FLYWHEEL AND HOUSING, 4-390 ENGINE (02) - ENGINE

1

J931714

HOUSING

Flywheel; Replaces J903287

1шт.

2

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING Flywheel Housing To Block

1шт.

3

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

8шт.

4

J925234

PLATE

Replaces J908095

1шт.

5

J912072

SELF-TAP SCREW

8 - 1.25 x 21 mm; Replaces J902735

2шт.

8

J910248

PLUG

Flywheel Housing

1шт.

9

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

Flywheel Housing

1шт.

Flywheel Housing

1шт.

10

J916634

FLYWHEEL

Crankshaft; Incl. Ring Gear; - JAF0078668; With Outer Hole Pattern

1шт.

10a

87588507

FLYWHEEL

Crankshaft; Incl. Ring Gear, REF 11; JAF0078668 - ; With Outer Hole Pattern To Mount H438922; Replaces J902569; See Figure 06-06, REF 18

1шт.

11

J901774

GEAR,Flywheel

1шт.

13

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

Flywheel Bolt

8шт.

14

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

8шт.

15

353-225

PLUG,Sltd Hd, 3/4"-16

1шт.
