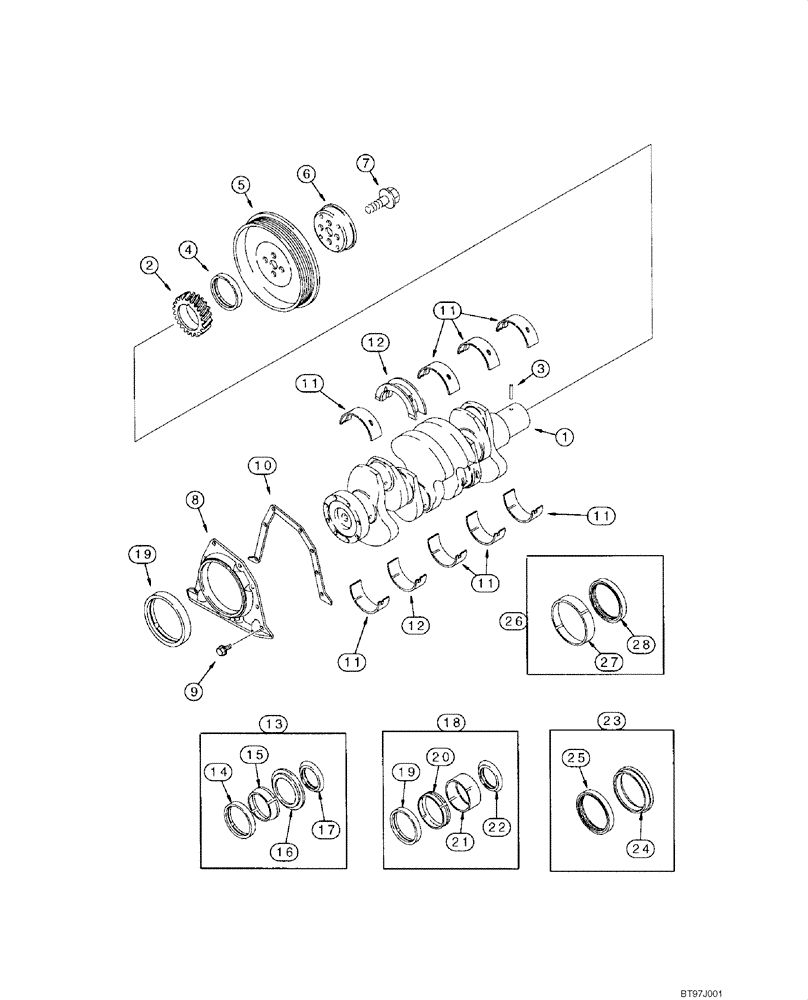

Запчасти Case 1840 (02-28) - CRANKSHAFT, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

JR908031

CRANKCASE

Remanufactured; North America Only; For Service Order J908031, REF 1

1шт.

J929036R

REMAN-CRANKSHAFT

1840 EMISSIONS, Reman for New P/N JR908031

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

JC908031

CORE-CRANKSHAFT

Return Number

1шт.

1

J908031

CRANKSHAFT

Incl. 2, 3

1шт.

J929036R

REMAN-CRANKSHAFT

1840 EMISSIONS, Reman for New P/N J908031

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

2

J929027

PINION

Crankshaft

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

1шт.

4

NSS

NOT SOLD SEPARAT

Seal; Crankshaft Front; Order REF 13

1шт.

5

J914494

PULLEY,181.25mm OD

Crankshaft Vibration Damper

1шт.

6

J903829

ADAPTER

Pulley

1шт.

7

J903857

BOLT,Hex, M12 x 1.25 x 36mm

12 - 1.25 x 36 mm

4шт.

8

J936904

REAR COVER

Rear Cover; Replaces J921043

1шт.

9

87409160

SCREW,Hex, M6 x 1 x 16mm, Cl 10.9

M6 x 16; 10.9; Replaces 845-6015

6шт.

10

J938159

GASKET

Rear Cover Retainer; Replaces J928493

1шт.

11

J804940

BEARING SET

Standard; Main; Upper And Lower Set

4шт.

11

A77472

BEARING SET

Undersize 0.25 mm; Main; Upper And Lower Set

4шт.

11

A77474

BEARING SET

Undersize 0.50 mm; Main; Upper And Lower Set

4шт.

11

A77476

BEARING SET

Undersize 0.75 mm; Main; Upper And Lower Set

4шт.

11

A77478

BEARING SET

Undersize 1.00 mm; Main; Upper And Lower Set

4шт.

12

A77895

THRUST BEARING,KIT

Standard; Main Thrust; Upper And Lower Set

1шт.

12

A77473

THRUST BEARING

Undersize 0.25 mm; Main Thrust; Upper And Lower Set

1шт.

12

A77475

THRUST BEARING

Undersize 0.50 mm; Main Thrust; Upper And Lower Set

1шт.

12

A77477

THRUST BEARING

Undersize 0.75 mm; Main Thrust; Upper And Lower Set

1шт.

12

A77479

THRUST BEARING

Undersize 1.00 mm; Main Thrust; Upper And Lower Set

1шт.

12

A77841

THRUST BEARING

Undersize 0.50 mm , Oversize 0.50 mm; Main Thrust; Upper And Lower Set

1шт.

12

A77840

THRUST BEARING

1.00 mm Undersize, Oversize 1.00 mm

1шт.

13

A77889

SEAL PACKAGE

Kit; Oil Seal; Incl. 14 - 17; Crankshaft Front

1шт.

14

NSS

NOT SOLD SEPARAT

Seal; Front

1шт.

15

NSS

NOT SOLD SEPARAT

Tool; Installation

1шт.

16

NSS

NOT SOLD SEPARAT

Tool; Installation

1шт.

17

NSS

NOT SOLD SEPARAT

Shield

1шт.

18

A77890

SEAL PACKAGE

Kit; Oil Seal; Crankshaft Front; Incl. 19 - 22

1шт.

19

NSS

NOT SOLD SEPARAT

Seal; Front

1шт.

20

NSS

NOT SOLD SEPARAT

Sleeve; Wear; Not Illustrated

1шт.

21

NSS

NOT SOLD SEPARAT

Tool; Installation

1шт.

22

NSS

NOT SOLD SEPARAT

Shield

1шт.

23

J934486

SERVICE KIT

Kit; Oil Seal; Crankshaft Rear; Replaces A77809, J353978; Incl. 24, 25

1шт.

24

NSS

NOT SOLD SEPARAT

Tool; Installation

1шт.

25

NSS

NOT SOLD SEPARAT

Seal; Rear

1шт.

26

A77810

SERVICE KIT

Kit; Oil Seal; Crankshaft Rear; Incl. 27, 28

1шт.

27

NSS

NOT SOLD SEPARAT

Sleeve; Wear

1шт.

28

NSS

NOT SOLD SEPARAT

Seal; Rear

1шт.
