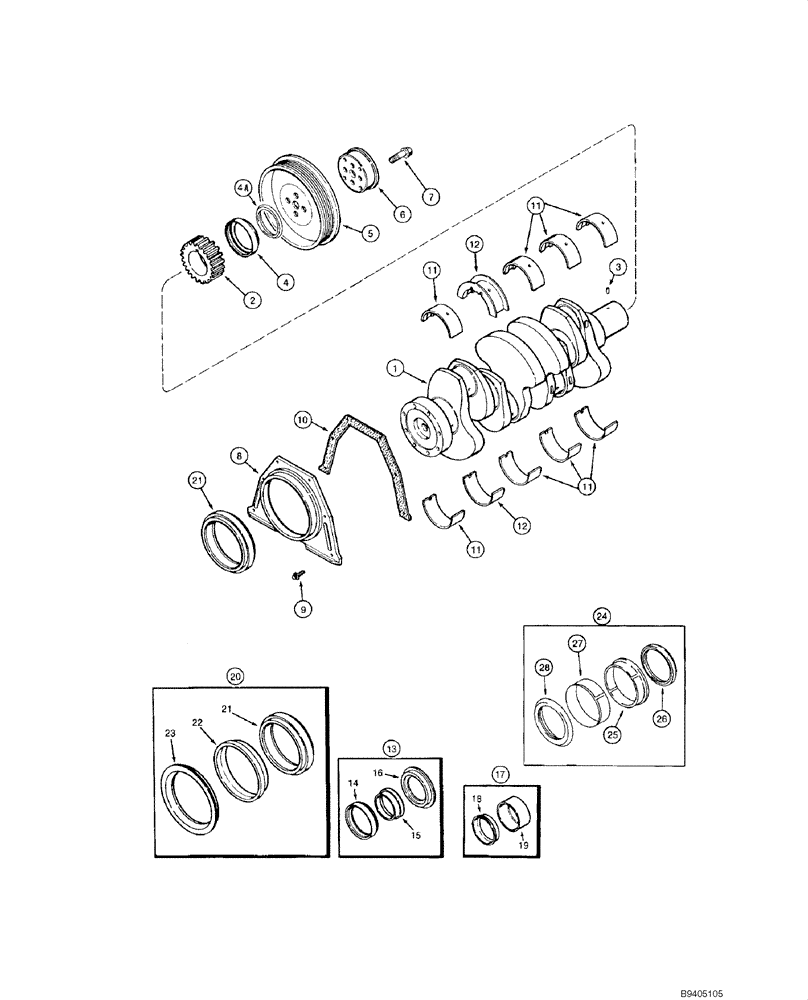

Запчасти Case 1840 (02-27) - CRANKSHAFT, 4-390 ENGINE (02) - ENGINE

JR918323

CRANKSHAFT

Remanufactured; North America Only

1шт.

J929036R

REMAN-CRANKSHAFT

1840, Reman For New P/N JR918323

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

JC908031

CORE-CRANKSHAFT

Return Number

1шт.

1

J908031

CRANKSHAFT

New; Incl. 2, 3; Replaces J916190, J918323

1шт.

J929036R

REMAN-CRANKSHAFT

1840, Reman for New P/N J908031

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

2

J929027

PINION

Replaces J901258, J912883, J919681

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

1шт.

4

NSS

NOT SOLD SEPARAT

Seal; Crankshaft Front; Order REF 13

1шт.

4a

J926430

SHAFT SEAL

Crankshaft; Service Repair Only

1шт.

5

J914494

PULLEY,181.25mm OD

Crankshaft Vibration Damper

1шт.

6

J903829

ADAPTER

Pulley; Replaces J905820

1шт.

7

J903857

BOLT,Hex, M12 x 1.25 x 36mm

12 - 1.25 x 36 mm

4шт.

8

J921043

REAR COVER

Rear Cover; Replaces J913447

1шт.

9

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

10

J938159

GASKET

Rear Cover Retainer; Replaces J914386

1шт.

11

A77405

CRANKSHAFT BEARING

Standard; Main; Upper And Lower Set

4шт.

11

A77472

BEARING SET

Undersize 0.25 mm; Main; Upper And Lower Set

4шт.

11

A77474

BEARING SET

Undersize 0.50 mm; Main; Upper And Lower Set

4шт.

11

A77476

BEARING SET

Undersize 0.75 mm; Main; Upper And Lower Set

4шт.

11

A77478

BEARING SET

Undersize 1.00 mm; Main; Upper And Lower Set

4шт.

12

A77406

CRANKSHAFT BEARING

Standard; Main Thrust; Upper And Lower Set

1шт.

12

A77473

THRUST BEARING

Undersize 0.25 mm; Main Thrust; Upper And Lower Set

1шт.

12

A77475

THRUST BEARING

Undersize 0.50 mm; Main Thrust; Upper And Lower Set

1шт.

12

A77477

THRUST BEARING

Undersize 0.75 mm; Main Thrust; Upper And Lower Set

1шт.

12

A77479

THRUST BEARING

Undersize 1.00 mm; Main Thrust; Upper And Lower Set

1шт.

13

J904353

GASKET KIT

Oil Seal; Crankshaft Front; Incl. 14 - 16; No Longer Available, Order A77889; See Figure 02-28, REF 13

1шт.

14

NSS

NOT SOLD SEPARAT

Seal; Front

1шт.

15

NSS

NOT SOLD SEPARAT

Tool; Installation

1шт.

16

NSS

NOT SOLD SEPARAT

Tool; Installation

1шт.

17

A77890

SEAL PACKAGE

Sleeve; Wear; Incl. 18, 19; Crankshaft Front; Replaces J906080

1шт.

18

NSS

NOT SOLD SEPARAT

Sleeve; Wear

1шт.

19

NSS

NOT SOLD SEPARAT

Tool; Installation

1шт.

20

J934486

SERVICE KIT

Oil Seal; Crankshaft Rear; Replaces J906080; Replaces J909410 kit

1шт.

21

NSS

NOT SOLD SEPARAT

Seal; Rear

1шт.

22

NSS

NOT SOLD SEPARAT

Tool; Installation

1шт.

23

NSS

NOT SOLD SEPARAT

Tool; Installation

1шт.

24

A77810

SERVICE KIT

Oil Seal; Incl. 25 - 28; Crankshaft Rear; Incl. Wear Sleeve; Replaces J906081; Ref 27, 28 Tools No Longer Included In Kit, Available from OTC

1шт.

25

NSS

NOT SOLD SEPARAT

Sleeve; Wear

1шт.

26

NSS

NOT SOLD SEPARAT

Seal; Rear

1шт.

27

NSS

NOT SOLD SEPARAT

Tool; Installation

1шт.

28

NSS

NOT SOLD SEPARAT

Tool; Installation

1шт.
