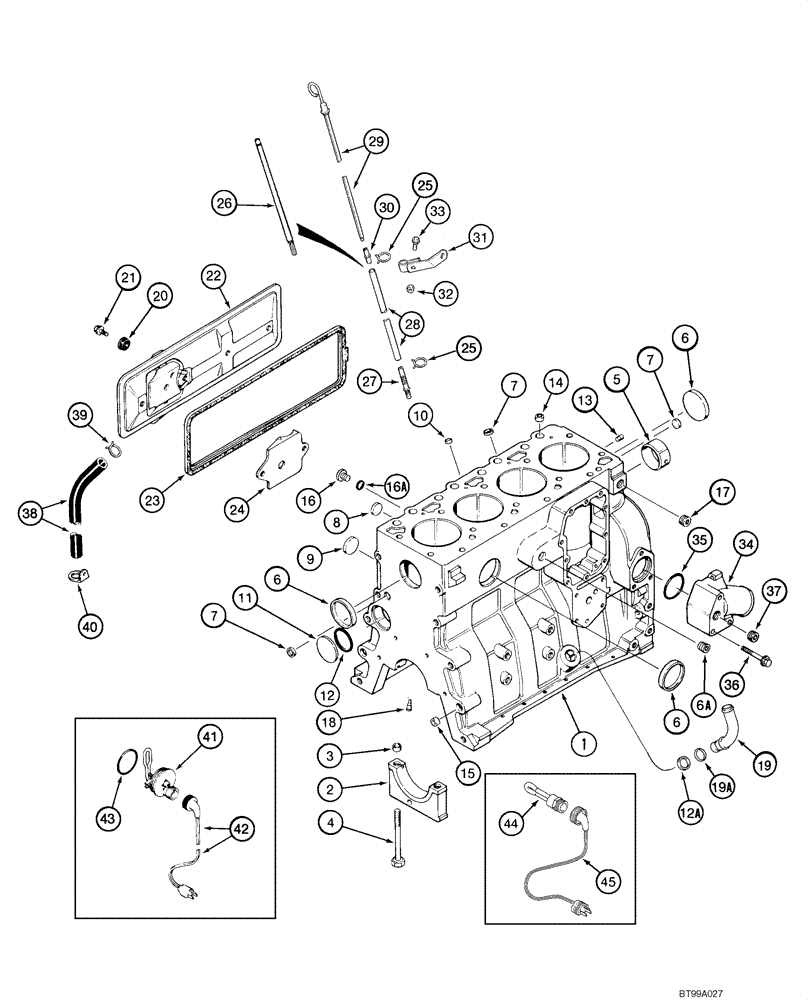

Запчасти Case 1840 (02-26A) - CYLINDER BLOCK (EUROPE), 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

334241A1

Complete Engine; For Service Order 339851A1

1шт.

339851A1

ENGINE ASSEMBLY

ENGINE ASSY Basic Service Engine; Incl. All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Pulley and Belt Tensioner

1шт.

339851A1R

REMAN-BASIC ENGINE

Incl. All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Pulley and Belt Tensioner

1шт.

339851A1C

CORE-BASIC ENGINE

Return Number

1шт.

J935600

SHORT ENGINE

Block Assy; With Stripped Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings; Incl. 1 - 8; Engine No. 45705902 -

1шт.

1

J932012

SCREW

Stripped; Incl. 2 - 8; Order J933220

1шт.

2

J903492

BEARING CAP

Incl. 3

5шт.

3

J900068

BEARING WASHER

18 mm OD

10шт.

4

J927948

BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9

10шт.

5

REF

INSTRUCTION

Bushing; See Figure 02-24, 02-25

1шт.

6

A77782

PLUG

58 mm; Expansion

1шт.

6a

A77505

PLUG

3/4 PT

1шт.

7

J900956

PLUG

18 mm OD

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

2шт.

J933220

PACKAGE,SERVICE

Kit, Block Hardware; Incl. 9 - 18

1шт.

9

J900958

PLUG

32 mm OD

2шт.

10

J900955

PLUG

10 mm OD

3шт.

11

172599

PLUG,Exp, 2 3/8"

60 mm OD; Incl. 12

1шт.

12

J926047

O-RING,0.07" Thk x 2.239" ID

57 mm ID

1шт.

12a

J920706

PLUG

22 mm; Expansion

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

14

J902343

DOWEL

16 mm OD

2шт.

15

J900068

BEARING WASHER

18 mm OD

2шт.

16

J678923

PLUG,M10 x 1

10 mm; Incl. 16A

3шт.

16a

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

17

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

Replaces A77429

1шт.

17a

J678921

PLUG

14 mm; Incl. 17B; Not Used In This Application; Not Illustrated

1шт.

17b

J678912

O-RING,2.2mm Thk x 11.3mm ID

Not used in this application; Not Illustrated

1шт.

17c

J932296

PLUG

Incl. 17D; Not Used In This Application; Not Illustrated

1шт.

17d

J330478

O-RING,0.07" Thk x 0.676" ID

Not Used In This Application; Not Illustrated

1шт.

17e

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

Not Used In This Application; Not Illustrated

1шт.

18

J930139

NOZZLE CAP

4шт.

19

J931973

TUBE,0.875" OD

Not Used In This Application

1шт.

19a

J931824

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

Not Used In This Application

1шт.

20

J900267

SEAL

4шт.

21

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

22

J936186

COVER

Replaces J925680; Incl. 24

1шт.

23

J283767

GASKET,7.4mm Thk

1шт.

24

J907586

BAFFLE

1шт.

25

214-1308

HOSE CLAMP,#8, 1/2", Spring

2шт.

26

J279248

TUBE

1шт.

27

A77645

TUBE

1шт.

28

J908306

TUBE

1шт.

29

J908311

DIPSTICK,914.3mm L

1шт.

30

J905802

FITTING,9.53 mm OD x 39 mm L

1шт.

31

J917762

BRACE

1шт.

32

825-1408

NUT,M8, Cl 8

1шт.

33

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

1шт.

34

J934877

HYD CONNECTOR

1шт.

35

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID

1шт.

36

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

3шт.

37

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

Replaces A77429

2шт.

38

J918612

TUBE,360.00 mm

1шт.

39

J904230

CLAMP,25.4mm

1шт.

40

J928989

CLIP

1шт.

40a

J905401

PLUG

35 mm; Expansion; Oil Filler; Not Illustrated

1шт.

196803A1

KIT

Engine Block Heater, 120V - 750W; Incl. 41 - 43; Install Ref. 41 In Place Of Ref. 6 Plug

1шт.

41

NSS

NOT SOLD SEPARAT

Element, 120V - 750W; Installs In Place Of Ref. 6 Plug

1шт.

42

196466A1

ELECTRIC CABLE

120V - 750W, 1829 mm (72 in)

1шт.

43

J910517

O-RING

1шт.

309651A1

KIT

Engine Block Heater, 120V - 750W; Incl. 44, 45; Install Ref. 41 In Place Of Ref. 6A Plug

1шт.

44

NSS

NOT SOLD SEPARAT

Element, 120V - 750W; Installs In Place Of Ref. 6A Plug

1шт.

45

196466A1

ELECTRIC CABLE

120V - 750W, 1829 mm (72 in)

1шт.

124340A1

KIT

Engine Block Heater, 240V - 750W; Incl. 41 - 43; Europe Only; Install Ref 41 In Place Of Ref. 6 Plug

1шт.

41

NSS

NOT SOLD SEPARAT

Element, 240V - 750W; Installs In Place Of Ref. 6 Plug

1шт.

42

J905114

ELECTRIC CABLE

240V - 750W, 1829 mm (72")

1шт.

43

J910517

O-RING

1шт.

309652A1

KIT

Engine Block Heater, 240V - 750W; Incl. 44 - 45; Europe Only; Install Ref 44 In Place Of Ref. 6A Plug

1шт.

44

NSS

NOT SOLD SEPARAT

Element, 240V - 750W; Installs In Place Of Ref. 6A Plug

1шт.

45

J905114

ELECTRIC CABLE

240V - 750W, 1829 mm (72")

1шт.
