Запчасти Case 1840 (02-26) - CYLINDER BLOCK, 4-390 EMISSIONS CERTIFIED ENGINE (INJECTION PUMP J935679) (02) - ENGINE

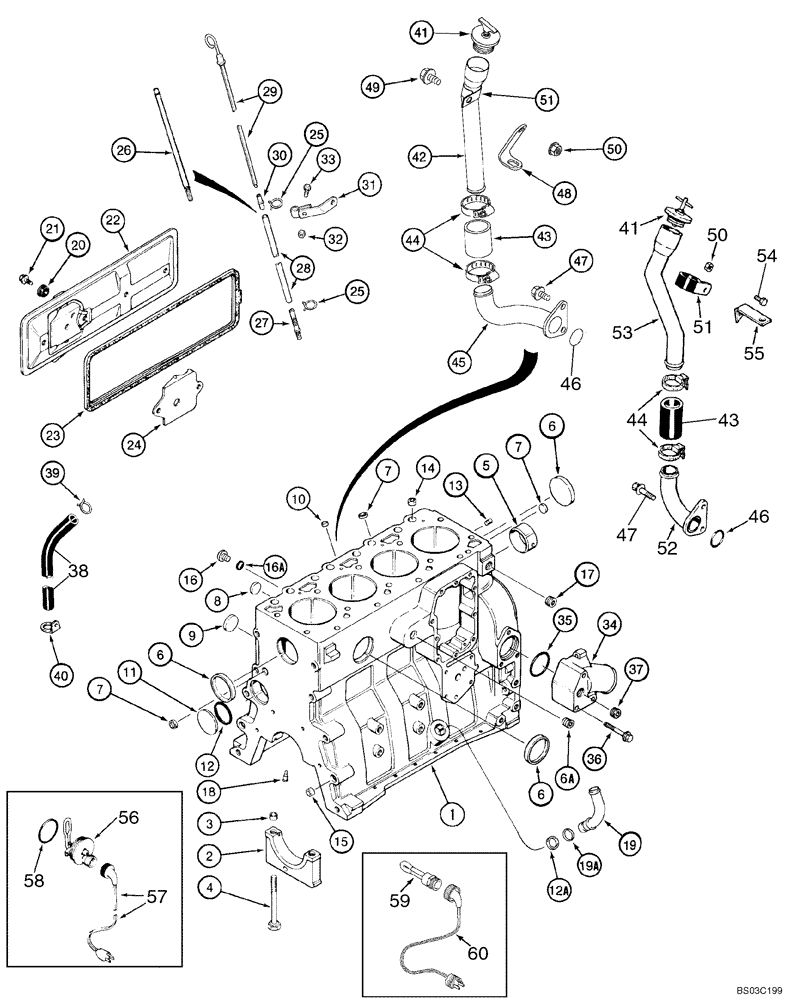

Схема запчастей Case 1840 - (02-26) - CYLINDER BLOCK, 4-390 EMISSIONS CERTIFIED ENGINE (INJECTION PUMP J935679) (02) - ENGINE
51
41
5
35
49
32
22
27
58
12
51
53
39
18
6
37
60
46
11
7
48
56
23
42
47
36
12a
34
17
43
3
52
6
55
26
10
9
57
6a
13
15
25
19
28
24
8
59
44
30
33
6
54
47
31
16a
20
50
7
50
2
46
19a
43
1
41
45
14
29
44
38
7
1
25
40
4
21

Артикул

Название

Примечание

Количество

326952A1

Engine Assy; Complete; 4-390 Emissions Certified; For Service Order 349469A1; North American Models

1шт.

334240A1

ENGINE

Complete; For Service Order 349469A1; European Models

1шт.

377513A1R

ENGINE, EXCHANGE

ENGINE (EXCHANGE) Remanufactured, Complete w/o Flywheel and Housing

1шт.

4-391C

CORE-REPLACEMENT ENG

Return Number, BASIC ENGINE

1шт.

87605116

ENGINE

Replacement, CDC, 3.9L, 4 Cyl.

1шт.

84251594R

REMAN-REPLACEMENT EN

Replacement, CDC, 3.9L, 4 Cyl.

1шт.

84251594C

CORE-REPLACEMENT ENG

Return Number

1шт.

349469A1

BASIC ENGINE

Basic; Incl. all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front pulley and belt tensioner; See Note

1шт.

1989091C3R

REMAN-BASIC ENGINE

Remanufactured Basic Engine Assembly, assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts. Built with 3 bolt injection pump front housing

1шт.

1989091C3C

CORE-BASIC ENGINE

Return Number

1шт.

J935600

SHORT ENGINE

Short; New; Incl. REF 1 - 8; Incl. stripped block, pistons, connecting rods and bearings, crankshaft and bearings; 45705902 -

1шт.

JR935600

REMAN-SHORT ENGINE

Short; Remanufactured; 45705902 -

1шт.

4-390-SHBC

CORE-SHORT ENGINE

Return Number

1шт.

1

87444172

BLOCK ASSY.

Stripped; Engine; Incl. REF 2 - 8; Also Order J933220

1шт.

2

J903492

BEARING CAP

Main Bearing

5шт.

3

J900068

BEARING WASHER

18 mm OD; Main Bearing Cap To Block

10шт.

4

J927948

BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9

Main Bearing Cap

10шт.

5

REF

INSTRUCTION

Bushing; Camshaft Front; See Figure 02-23, REF 2

1шт.

6

A77782

PLUG

1шт.

6a

J920706

PLUG

22 mm OD

1шт.

7

J900956

PLUG

18 mm OD

3шт.

8

86625124

PLUG,Cup, 1", Stainless

1 in; Replaces 41-1616

2шт.

J933220

PACKAGE,SERVICE

Block Hardware; Incl. 9 - 18

1шт.

9

J900958

PLUG

32 mm OD

2шт.

10

J900955

PLUG

10 mm OD

1шт.

11

41-3038

PLUG,Exp, 2 3/8"

(60 mm OD); Replaces 172599

1шт.

12

J926047

O-RING,0.07" Thk x 2.239" ID

57 mm ID

1шт.

12a

J920706

PLUG

22 mm OD

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

16 mm long; Locating

2шт.

14

J902343

DOWEL

16 mm OD

2шт.

15

J900068

BEARING WASHER

18 mm OD

2шт.

16

J678923

PLUG,M10 x 1

10 mm; Incl. 16A

3шт.

16a

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

17

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

Replaces A77429

1шт.

17a

J678921

PLUG

14 mm; Incl. 17B; Not Used In This Application; Not Illustrated

1шт.

17b

J678912

O-RING,2.2mm Thk x 11.3mm ID

Not used in this application; Not Illustrated

1шт.

17c

J932296

PLUG

Timing Sensor Hole; Incl. 17D; Not Used In This Application; Not Illustrated

1шт.

17d

J330478

O-RING,0.07" Thk x 0.676" ID

Not Used In This Application; Not Illustrated

1шт.

17e

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC Not Used In This Application; Not Illustrated

1шт.

18

J937214

NOZZLE CAP

Piston Cooling; Replaces J930139

4шт.

19

J931973

TUBE,0.875" OD

Turbocharger Oil Drain; Not Used In This Application; REF 12A Installed In This Port

1шт.

19a

J931824

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

18 mm ID; Not Used In This Application

1шт.

20

J900267

SEAL

4шт.

21

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

22

J936186

COVER

Tappet; Incl. REF 24; Replaces J925680

1шт.

23

J283767

GASKET,7.4mm Thk

Tappet Cover

1шт.

24

J907586

BAFFLE

Tappet Cover

1шт.

25

86637701

HOSE CLAMP,12.45mm - 12.95mm

1/2 inch; Replaces 214-1308

2шт.

26

J922885

TUBE,12.7 mm OD x 482 mm L

Oil Dipstick; Self-standing

1шт.

27

A77645

TUBE

Oil Dipstick; At Block

1шт.

28

J917573

TUBE,12.7 mm OD x 482 mm L

Oil Dipstick; Clamped To Oil Filler Tube

1шт.

29

J917572

DIPSTICK

Oil Gauge

1шт.

30

J905802

FITTING,9.53 mm OD x 39 mm L

Oil Dipstick Tube

1шт.

31

J916723

BRACE

Oil Dipstick

1шт.

32

825-1408

NUT,M8, Cl 8

1шт.

33

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

1шт.

34

J934877

HYD CONNECTOR

Water Inlet

1шт.

35

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID

1шт.

36

86624961

BOLT,Hex, M10 x 75mm, Cl 10.9

Replaces 854-10075

3шт.

37

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

Replaces A77429

2шт.

38

J918612

TUBE,360.00 mm

Breather

1шт.

39

J904230

CLAMP,25.4mm

1шт.

40

J928989

CLIP

1шт.

41

A77424

FILLER CAP

Oil Fill Tube; Not Incl. In Engine Assembly

1шт.

42

J935385

TUBE,52 mm ID x 38, 23 mm L

Oil Filler; Upper; Not Incl. In Engine Assembly; If Used

1шт.

43

J912686

HOSE,38.1mm ID x 84mm L

Not Incl. In Engine Assembly

1шт.

44

214-1528

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm, W/ Liner

1-5/16 - 2-1/4 inch dia; Not Incl. In Engine Assembly

2шт.

45

J935372

TUBE,1.5" OD

Oil Filler; Lower; Not Incl. In Engine Assembly; If Used

1шт.

46

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

38 mm (1-1/2 inch) ID; Not Incl. In Engine Assembly

1шт.

47

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

Not included in Engine Assy

2шт.

48

J935386

BRACE

Not Incl. In Engine Assembly; If Used

1шт.

49

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

Not Incl. In Engine Assembly; If used

1шт.

50

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

Not Incl. in Engine Assembly

1шт.

51

A77694

CLAMP

Not Incl. In Engine Assembly

1шт.

52

J917569

TUBE,38.1 mm OD x 129.5, 88.2 mm L

If Used

1шт.

53

J917570

TUBE,38.1 mm OD x 372.7 mm L

If Used

1шт.

54

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

If used

1шт.

55

J918419

BRACE

If Used

1шт.

196803A1

KIT

Engine Block Heater, 120V - 750W; Incl. 56 - 58; Install Ref. 56 In Place Of Ref. 6 Plug

1шт.

56

NSS

NOT SOLD SEPARAT

Element, 120V - 750W; Engine Block Heater; Installs In Place Of Ref. 6 Plug

1шт.

57

196466A1

ELECTRIC CABLE

120V - 750W, 1829mm (72 in.)

1шт.

58

J910517

O-RING

1шт.

309651A1

KIT

Engine Block Heater, 120V - 750W; Incl. 59, 60; Install Ref 59 In Place Of Ref. 6A Plug

1шт.

59

NSS

NOT SOLD SEPARAT

Element, 120V - 750W; Engine Block Heater; Installs in place of Ref. 6A

1шт.

60

196466A1

ELECTRIC CABLE

120V - 750W, 1829mm (72 in.)

1шт.

124340A1

KIT

Engine Block Heater, 240V - 750W; Incl. 56 - 58, Europe Only; Install Ref. 56 In Place Of Ref 6 Plug

1шт.

56

NSS

NOT SOLD SEPARAT

Element, 240V - 750W; Install In Place Of Ref 6 Plug

1шт.

57

J905114

ELECTRIC CABLE

240v - 750W, 1829 mm (72")

1шт.

58

J910517

O-RING

1шт.

309652A1

KIT

Engine Block Heater, 240V - 750W; Incl. 59, 60; Installs In Place Of Ref. 6A Plug

1шт.

59

NSS

NOT SOLD SEPARAT

Element, 240V - 750W; Install In Place Of Ref. 6A Plug

1шт.

60

J905114

ELECTRIC CABLE

240v - 750W, 1829 mm (72")

1шт.

Выбрано товаров: 92
