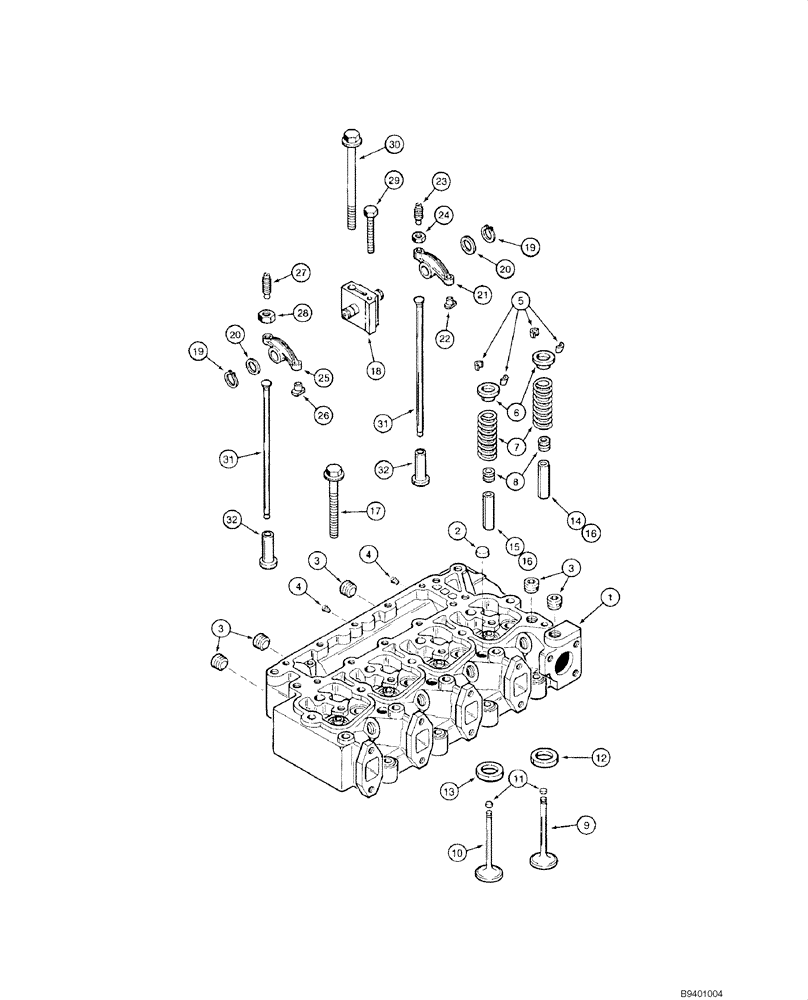

Запчасти Case 1840 (02-21) - CYLINDER HEAD - VALVE MECHANISM, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

JR933494

REMAN-CYLINDER HEAD

Cylinder; Remanufactured; North America Only

1шт.

JC929736

CORE-CYLINDER HEAD

Return Number

1шт.

1

J933494

HEAD (CYLINDER)

Cylinder; New; With Valves

1шт.

1

J933419

HEAD (CYLINDER)

Cylinder; New; Without Valves; Replaces J920005

1шт.

2

A77783

PLUG

21 mm OD

3шт.

3

217-466

DRAIN PLUG,Sq Soc, 1/2" - 14, NTPF

One Removed to Install Temperature Sending Unit

5шт.

4

J906619

PLUG,1/8" - 27

1/8 inch PT

2шт.

5

CASJ900250

RETAINER

Valve

16шт.

6

J935038

RETAINER

Valve Spring; Replaces J900299

8шт.

7

J932453

SPRING

Valve

8шт.

8

J921640

SEAL

Valve; Replaces J901097

8шт.

9

J920867

VALVE

Intake

4шт.

10

J920868

VALVE

Exhaust

4шт.

11

J910412

WEAR PAD

Use On Intake And Exhaust Valves; Replaces J280911

1шт.

12

J906854

SEAT, VALVE

Intake Valve; Service Repair Only

4шт.

13

J904105

SEAT, VALVE

Exhaust Valve; Service Repair Only

4шт.

14

J904408

GUIDE

14 mm OD; Intake; Service Repair Only; Semi-finished

4шт.

15

J904409

GUIDE

14 mm OD; Exhaust; Service Repair Only; Semi-finished

4шт.

16

J906206

GUIDE

11 mm OD; Intake And Exhaust; Service Repair Only; Semi-finished

8шт.

17

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

70 mm long; Cylinder Head

4шт.

17

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

120 mm long; Cylinder Head

10шт.

18

J922488

SUPPORT

Rocker Arm

4шт.

19

J900242

SNAP RING

Rocker Arm

8шт.

20

J900245

WASHER

Rocker Arm

8шт.

21

J910811

ROCKER

Intake; Incl. 22 - 24

4шт.

22

NSS

NOT SOLD SEPARAT

Insert; Rocker Arm

1шт.

23

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

Replaces J900706

1шт.

24

A77902

NUT

3/8 inch NF; Replaces 425-116

1шт.

25

J910810

ROCKER

Exhaust; Incl. 26 - 28

4шт.

26

NSS

NOT SOLD SEPARAT

Insert; Rocker Arm

1шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

Replaces J900706

1шт.

28

A77902

NUT

3/8 inch NF; Replaces 425-116

1шт.

29

J901221

BOLT

M8 x 75; Replaces 814-8075

4шт.

30

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

180 mm long; Rocker Arm And Cylinder Head

4шт.

31

J284377

PUSH ROD

Rocker Arm; Replaces J923262

8шт.

32

J931623

TAPPET

Push Rod

8шт.
