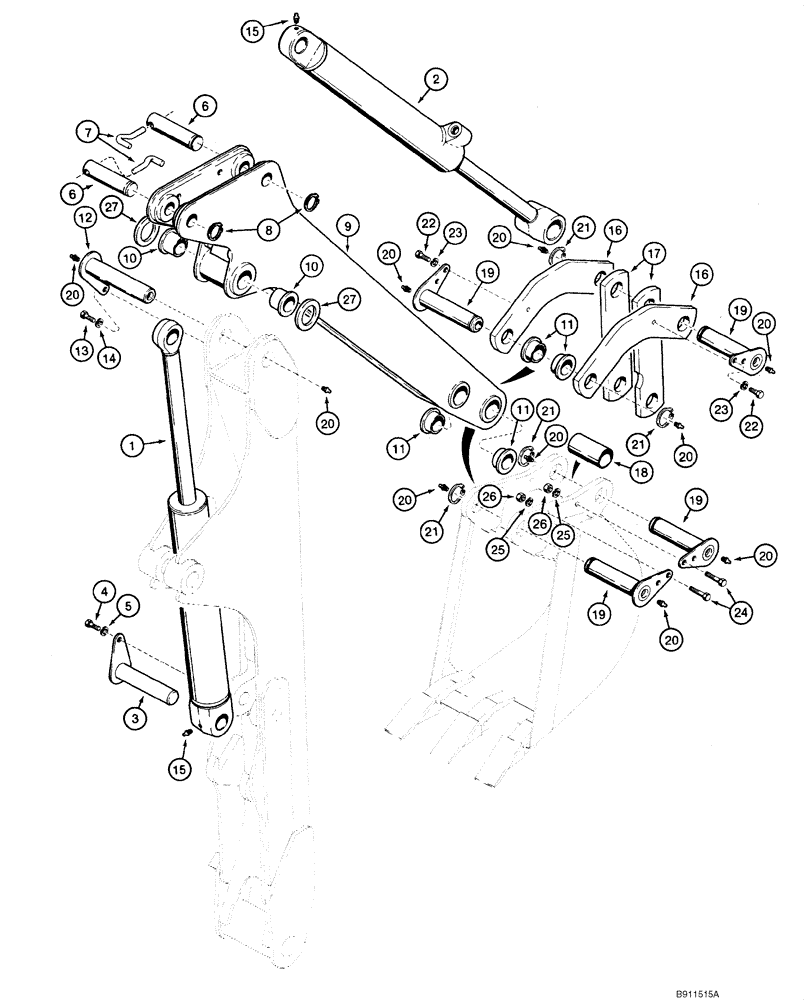

Запчасти Case 1840 (09-71) - BACKHOE - DIPPER AND BUCKET (D125) (09) - CHASSIS/ATTACHMENTS

1

1346411C1

CYLINDER ASSY.

3 (76) ID x 19-5/8 in (498 mm) stroke; Dipper; See Figure 08-60; No Longer Available, Order 1346411C3

1шт.

1

1346411C3

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 497.8mm Stroke

3 (76) ID x 19-5/8 in (498 mm) stroke; See Figure 08-60A; Replaces 1346411C1, 1346411C2

1шт.

2

1346397C1

CYLINDER ASSY.

2-3/4 (70) ID x 22 in (559 mm) stroke; Bucket; See Figure 08-66; No Longer Available, Order 1346397C2

1шт.

2

1346397C2

CYLINDER ASSY.

2-3/4 (70) ID x 22 in (559 mm) stroke; See Figure 08-66; No Longer Available, Order 402216A1

1шт.

2

402216A1

CYLINDER ASSY.,Double Acting, 44.45mm Rod, 552.4mm Stroke

2-3/4 (70) ID x 22 in (559 mm) stroke; See Figure 08-66A; Replaces 1346397C1, 1346397C2

1шт.

3

H674119

PIN

Closed End Of Dipper Cylinder To Boom

1шт.

4

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

5

492-11038

LOCK WASHER,3/8"

1шт.

6

H437349

PIN,31.8mm OD x 136mm L

Cylinder To Dipper

2шт.

7

H433937

LARGE PIN,12.7mm OD

PIN, LARGE

2шт.

8

103-16125

SNAP RING,#125, Ext

2шт.

H674676

DIPPER

Backhoe; Incl. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

Dipper; Backhoe

1шт.

10

H437301

BUSHING,38.35mm ID x 62mm OD x 40mm L

Dipper Pivot At Boom

2шт.

11

H433624

BUSHING,38.23mm ID x 64mm OD x 25.5mm L

4шт.

12

H674113

PIN,38.15mm OD x 187mm L

Dipper To Boom

1шт.

13

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

14

492-11038

LOCK WASHER,3/8"

1шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

16

H437315

LARGE PLATE

PLATE, LARGE Curved; Dipper To Bucket

2шт.

17

H437313

LARGE PLATE

PLATE, LARGE Straight; Dipper To Bucket

2шт.

18

H437316

SPACER

Bucket Links

1шт.

19

H674109

PIN

Links And Bucket

4шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

10шт.

21

100-16150

SNAP RING,#150, Ext

4шт.

22

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

23

492-11038

LOCK WASHER,3/8"

2шт.

24

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

25

492-11038

LOCK WASHER,3/8"

2шт.

26

230-4216

LOCK NUT,3/8"-16, GA

2шт.

27

H426437

SPACER

1шт.
