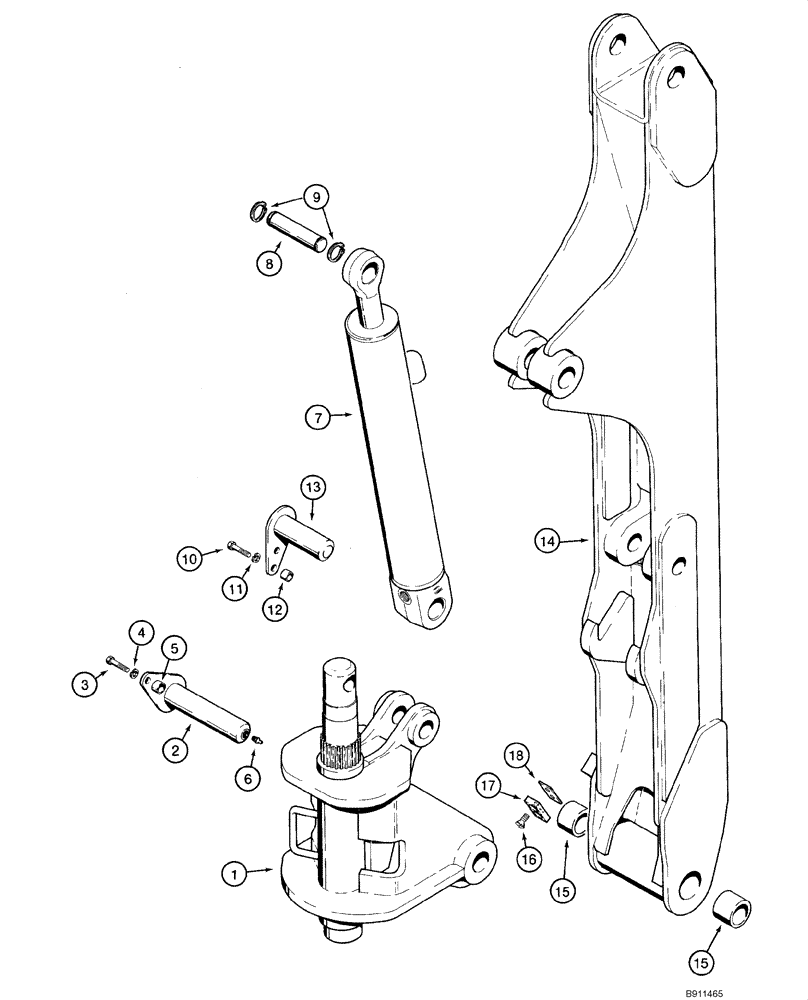

Запчасти Case 1840 (09-68) - BACKHOE - SWING TOWER AND BOOM (D125) (09) - CHASSIS/ATTACHMENTS

1

H674114

POST

Tower, Swing; Backhoe

1шт.

2

H674111

PIN

Boom Pivot; Boom To Swing Tower

1шт.

3

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

4

492-11038

LOCK WASHER,3/8"

1шт.

5

D143412

SPACER,10.31mm ID x 15.81mm OD x 23.88mm L

Tube Clamp

1шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

7

1346450C2

CYLINDER ASSY.

3 (76) ID x 21-11/16 in (551 mm) stroke; Boom; See Figure 08-58; No Longer Available, Order 305352A1

1шт.

7

305352A1

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 551mm Stroke

3 (76) ID x 21-11/16 in (551 mm); See Figure 08-58A

1шт.

8

H437348

PIN,38.15mm OD x 171mm L

Boom Cylinder

1шт.

9

100-16150

SNAP RING,#150, Ext

2шт.

10

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

11

492-11038

LOCK WASHER,3/8"

1шт.

12

H438253

SPACER

Boom Cylinder Pin

1шт.

13

H674112

PIN

Boom Cylinder To Swing Tower

1шт.

H674107

BOOM

Backhoe

1шт.

14

NSS

NOT SOLD SEPARAT

Boom; Backhoe

1шт.

15

H437317

BUSHING

Backhoe; Boom

2шт.

16

461-43116

HEX SOC SCREW,Flat Hd, 5/16"-18 x 1"

5/16 x 1 in

2шт.

17

H439260

BAR

Boom Stop

1шт.

18

H439261

BAR

3шт.
