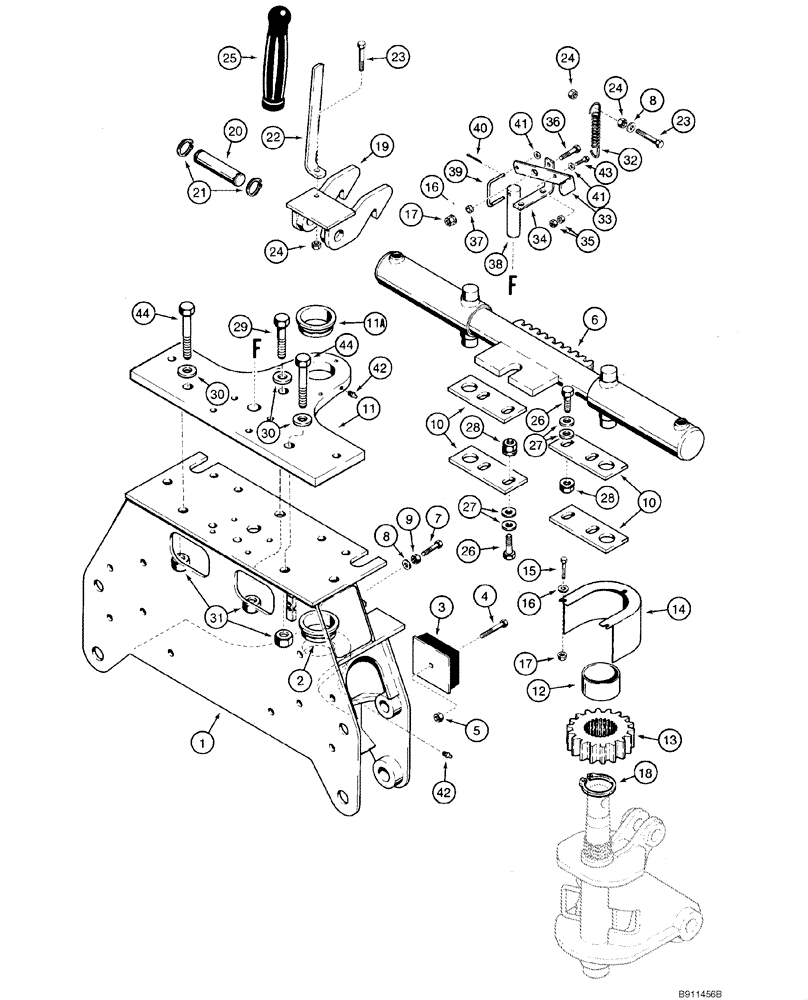

Запчасти Case 1840 (09-67) - BACKHOE - BOOM LOCK AND SWING CYLINDER (D125) (09) - CHASSIS/ATTACHMENTS

H674120

FRAME

Assy; Backhoe Attachment; Incl. 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

Frame; Backhoe Attachment

1шт.

2

H434397

BUSHING,70.04mm ID x 89mm OD x 32mm L

Backhoe Frame

1шт.

3

D90990

GUARD

Rubber Boom Stop

2шт.

4

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

5

230-4216

LOCK NUT,3/8"-16, GA

2шт.

6

H673149

CYLINDER ASSY.

2-3/4 (70) ID x 10 in (254 mm); Swing; See Figure 08-62; No Longer Available, Order 379623A1

1шт.

6

379623A1

CYLINDER ASSY.,Double Acting, 60.8mm Rod, 254mm Stroke

70 ID x 254 mm strk; See Figure 08-69A

1шт.

7

113-2481

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

8

496-21053

WASHER,17/32" x 1 1/16" x .134"

3шт.

9

425-148

JAM NUT,Jam, 1/2"-13, G5

2шт.

10

H437390

LARGE PLATE

PLATE, LARGE Swing Cylinder Mounting

4шт.

11

H674124

PLATE

Bushing Mounting; Incl. 11A

1шт.

11a

H434397

BUSHING,70.04mm ID x 89mm OD x 32mm L

1шт.

12

H437362

SPACER

Swing Tower

1шт.

13

H437361

PINION

Swing Tower

1шт.

14

H674128

COVER

Swing Gear

1шт.

15

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

3шт.

16

H426775

WASHER

4шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

18

100-11306

SNAP RING,#306, Ext

1шт.

19

H674110

LATCH

Boom Lock

1шт.

20

H437323

PIN,31.8mm OD x 148mm L

Boom Latch

1шт.

21

103-16125

SNAP RING,#125, Ext

2шт.

22

H436021

GRIP

Control

1шт.

23

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

24

230-4218

LOCK NUT,1/2"-13, GA

1/2 in

3шт.

25

H33332

GRIP

1шт.

26

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

8шт.

27

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

16шт.

28

231-51412

FLANGE NUT,Flg, USR, 3/4"-10

8шт.

29

413-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5

1шт.

30

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

3шт.

31

230-42116

LOCK NUT,1"-8, GA

3шт.

32

D124939

SPRING

Lock; Control Lever

1шт.

33

H438352

HANDLE

Control

1шт.

34

H438354

ANGLE

Lever Mounting

1шт.

35

230-4214

LOCK NUT,1/4"-20, GA

2шт.

36

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5/16 x 1-1/4 in

1шт.

37

H93971

SPACER,1/4" Pipe x 7/16"

Control Lever

1шт.

38

H438350

PIN

Control Lever

1шт.

39

H438351

LINK

Control Lever

1шт.

40

432-812

COTTER PIN,3/4" OAL x 1/8" W

2шт.

41

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

3шт.

42

219-1

LUBE NIPPLE,1/8" - 27 NPTF

If used

2шт.

42

219-8

LUBE NIPPLE,1/4" - 28 NPTF

If used

2шт.

43

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

44

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

2шт.
