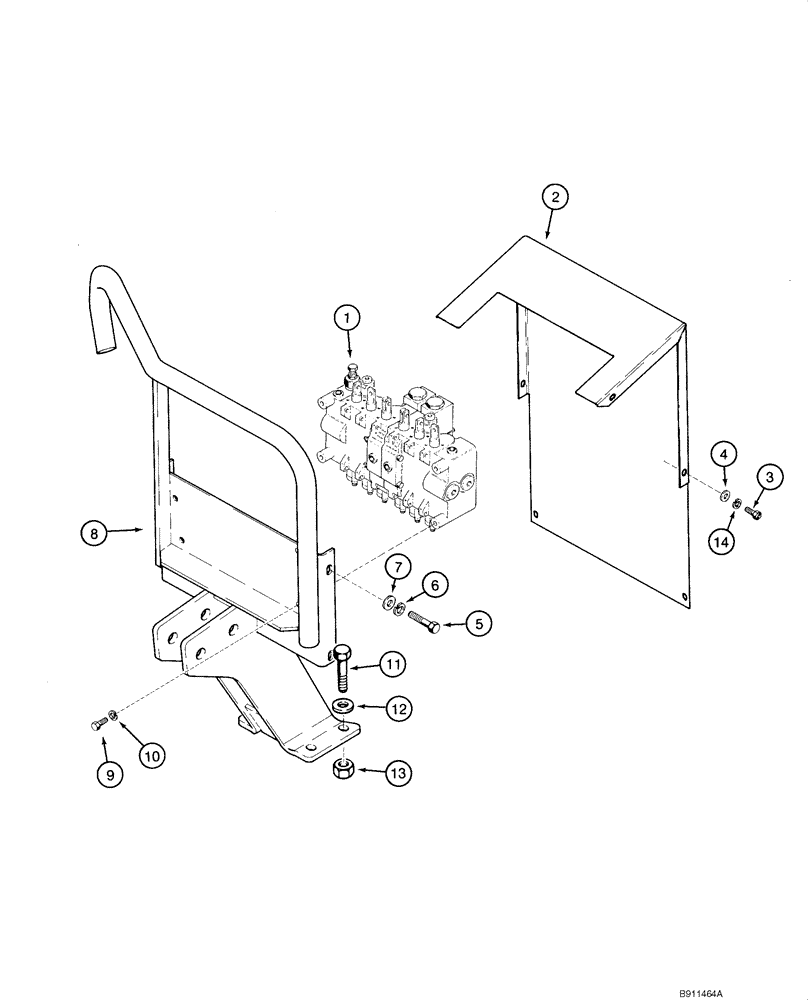

Запчасти Case 1840 (09-65) - BACKHOE - CONTROL TOWER (D125) (09) - CHASSIS/ATTACHMENTS

1

H674500

VALVE

Control; Backhoe; See Figure 08-55 -08-57

1шт.

1

87400034

VALVE

Control; Backhoe; Replaces H764500; See Figure 08-57A

1шт.

2

H438359

COVER

Backhoe Valve

1шт.

3

276-24812

SELF-TAP SCREW,5/16" - 18 x 3/4"

Foot Guard Assy without weld nut; If used

4шт.

3

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Foot Guard Assy With Weld Nut; If Used

4шт.

4

H426775

WASHER

4шт.

5

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

6

492-11038

LOCK WASHER,3/8"

4шт.

7

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

8

H674133

CONSOLE

Valve Mounting

1шт.

9

414-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

4шт.

10

492-11031

LOCK WASHER,5/16"

4шт.

11

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

1/2 NC x 2-3/4 in

4шт.

12

496-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

13

230-4218

LOCK NUT,1/2"-13, GA

1/2 in

4шт.

14

492-11031

LOCK WASHER,5/16"

If used

4шт.
