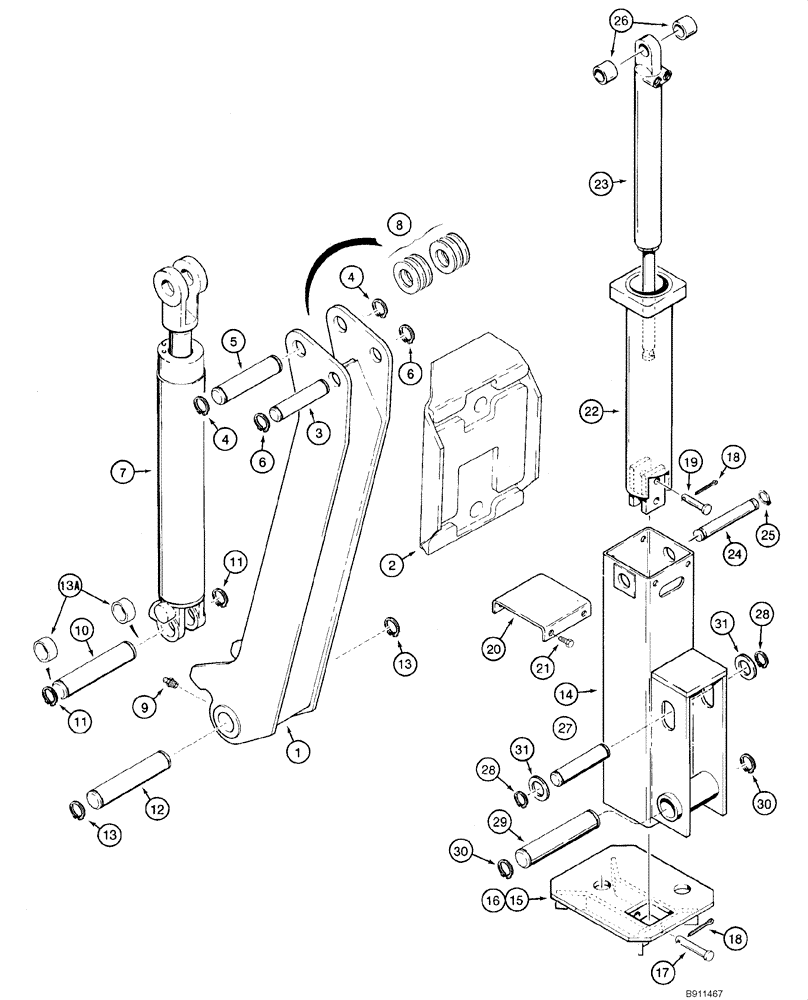

Запчасти Case 1840 (09-57) - BACKHOE - STABILIZERS (D100, D100XR) (09) - CHASSIS/ATTACHMENTS

1

H674650

STABILIZER

Backhoe; Fold Down

2шт.

2

H434430

LARGE PLATE

PLATE, LARGE Stabilizer Cast

2шт.

3

H434379

PIN,28.63mm OD x 151mm L

Stabilizer To Pad

2шт.

4

103-16125

SNAP RING,#125, Ext

4шт.

5

H434380

PIN

Cylinder To Stabilizer

2шт.

6

100-16112

SNAP RING,#112, Ext

4шт.

7

101643A1

CYLINDER ASSY.,Double Acting, 35.1mm Rod, 406.4mm Stroke

3 (76) ID x 16 in (406 mm) stroke; See Figure 08-47

2шт.

8

495-21138

WASHER,1 1/4"

1-3/8 x 3 x 5/32 in

12шт.

9

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

10

H434381

PIN,31.8mm OD x 31.8mm L

2шт.

11

103-16125

SNAP RING,#125, Ext

4шт.

12

H434382

PIN,38.15mm OD x 204mm L

Mounting Stabilizer To Backhoe Frame

2шт.

13

D25279

SNAP RING,M35, Int

4шт.

13a

103502A1

SPECIAL NUT

4шт.

14

H674844

STABILIZER

Backhoe; Outer; Vertical Stabilizer

2шт.

15

H514570

PAD

1шт.

16

H514562

PAD

Stabilizer; Left Hand

1шт.

17

H120683

PIN,15.88mm OD x 94.06mm L

Stabilizer To Stabilizer Pad; Inner

2шт.

18

432-816

COTTER PIN,1/8" x 1"

4шт.

19

H51870

PIN

Stabilizer Cylinder To Inner Stabilizer

2шт.

20

H438853

COVER

Stabilizer

2шт.

21

276-24812

SELF-TAP SCREW,5/16" - 18 x 3/4"

8шт.

22

H514554

STABILIZER

Backhoe; Inner; Vertical Stabilizer

2шт.

23

H514117

CYLINDER BLOCK

2 (51) ID x 12 in (305 mm) stroke; See Figure 08-61

2шт.

24

H50831

PIVOT PIN,28.57mm OD x 139.7mm L

Cylinder To Stabilizer

2шт.

25

103-11112

SNAP RING,#112, Ext

4шт.

26

H52068

SPACER

Cylinder

4шт.

27

H434381

PIN,31.8mm OD x 31.8mm L

Mounting Stabilizer To Backhoe Frame; Upper

2шт.

28

103-16125

SNAP RING,#125, Ext

4шт.

29

H434382

PIN,38.15mm OD x 204mm L

Mounting Outer Stabilizer To Backhoe Frame; Lower

2шт.

30

D25279

SNAP RING,M35, Int

4шт.

31

495-21138

WASHER,1 1/4"

1-3/8 x 3 x 5/32 in

4шт.
