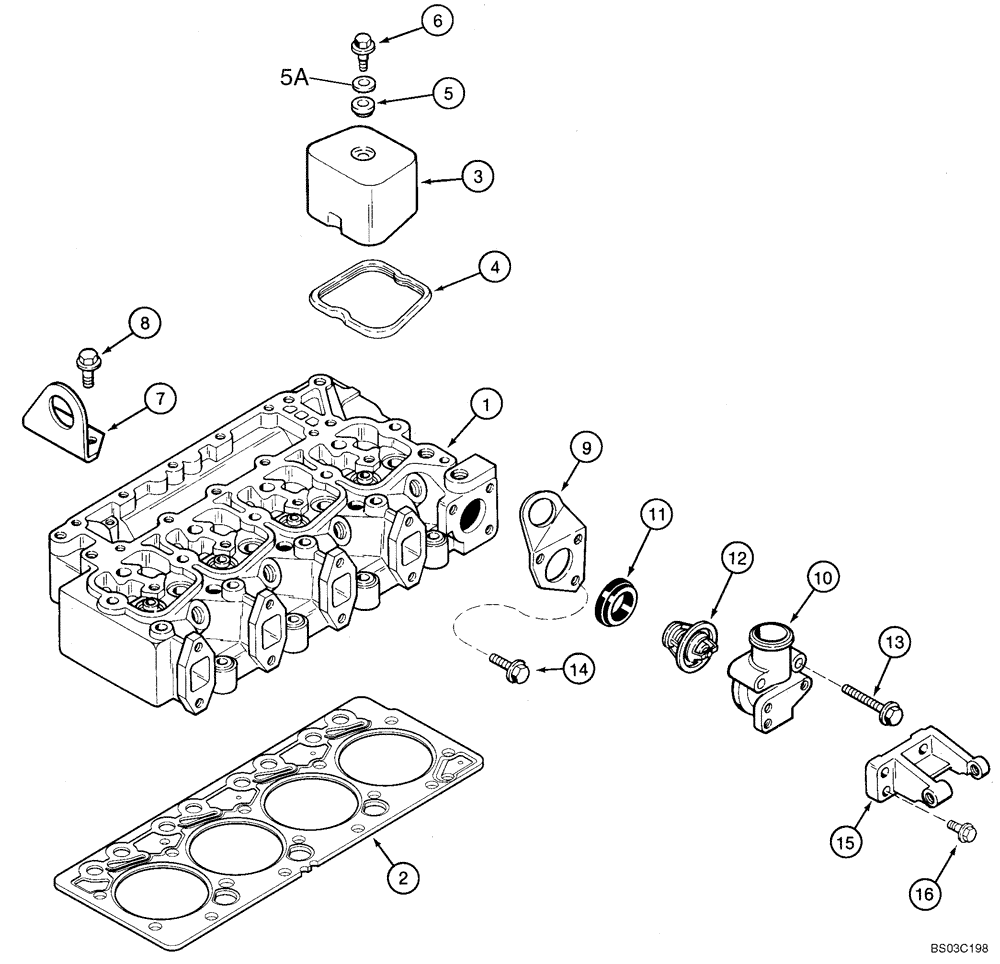

Запчасти Case 1840 (02-18) - CYLINDER HEAD - THERMOSTAT AND HOUSING, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

REF

INSTRUCTION

Cylinder Head; See Figure 02-20, 02-21

1шт.

2

J283333

CYLINDER HEAD GASKET,2.32mm Thk

Standard; Cylinder Head

1шт.

2

J283336

GASKET

2 Notches, 0.25 mm thicker; Head

1шт.

2

J283338

GASKET

3 Notches, 0.50 mm thicker; Head

1шт.

3

J928404

COVER

Rocker Arm

4шт.

4

J930906

GASKET

Rocker Arm Cover

4шт.

5

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

Noise; Replaces J928406

4шт.

5a

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

.406 ID x .812 x .065

6шт.

6

J907049

BOLT,Hex

8 - 1.25 x 21.25 mm

4шт.

7

J908118

BRACKET

Lifting; Rear

1шт.

8

844-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 8.8

2шт.

9

J903757

BRACKET

Lifting; Front

1шт.

10

J285102

HOUSING

Thermostat; Replaces J914409

1шт.

A77736

THERMOSTAT

Coolant Thermostat; Incl. 11, 12

1шт.

11

J923331

GASKET

Thermostat Housing

1шт.

12

NSS

NOT SOLD SEPARAT

Thermostat; Coolant

1шт.

13

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

2шт.

14

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

1шт.

15

J923387

SUPPORT

Alternator Mounting; No Longer Available, Order J287096

1шт.

15

J287096

SUPPORT

Incl. 838-5310

1шт.

838-5310

LOCK PIN,M3 x 10, Slotted

Used With REF 15, J287096; Not Illustrated

2шт.

16

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

Used With Ref 15, J287096

3шт.

16

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

3шт.
