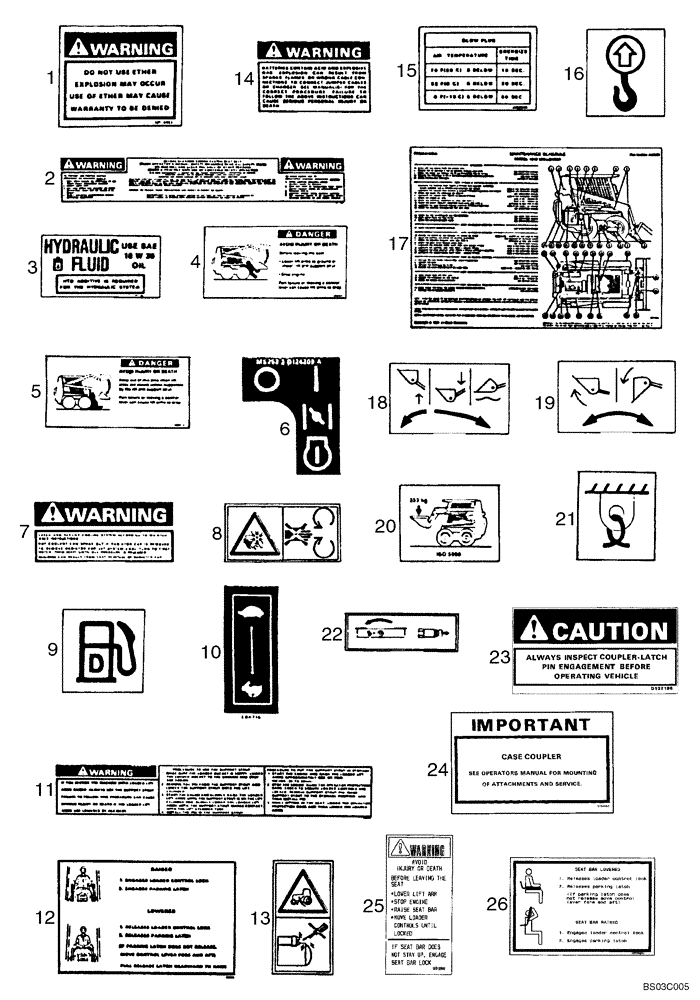

Запчасти Case 1840 (09-51) - DECALS - PORTUGUESE (09) - CHASSIS/ATTACHMENTS

1

175619A1

DECAL

Warning, Do Not Use Ether; Portuguese

1шт.

2

175478A1

DECAL

Warning, Before Starting Engine, Fasten Seat Belt

1шт.

3

175516A1

DECAL

Hydraulic Fluid, Use SAE 15W/40 Oil

1шт.

4

175490A1

DECAL

Danger, Keep Out Of This Area

1шт.

5

175486A1

DECAL

Danger, Before Leaving The Seat

1шт.

6

D124209

DECAL

Ignition Switch Pattern; Replaced By 355236A1, See Figure 09-40, REF 8

1шт.

7

175507A1

DECAL

Warning, Check And Service Cooling System

1шт.

8

175504A1

DECAL

Warning, Rotating Fan

1шт.

9

139879A1

DECAL

Diesel Fuel

1шт.

10

E84716

DECAL

Throttle, Slow/Fast; Models With Brown Trim; Replaces 321-4867; See Figure 09-40, REF 5

1шт.

10

178662A1

DECAL

Throttle, Slow/Fast; Models With Gray Trim; See Figure 09-40, REF 5

1шт.

11

175482A1

DECAL

Warning, If You Service The Machine With The Loader Arms Raised

1шт.

12

175640A1

DECAL

Raised/Lowered; Parking Latch And Operators Restraint Instructions

1шт.

13

175509A1

WARNING DECAL

Jump Start

1шт.

14

175470A1

DECAL

Warning, Batteries Contain Acid And Explosive Gas

1шт.

15

175615A1

DECAL

Glow Plug; Diesel Models

1шт.

16

139729A1

DECAL

Lift Only

4шт.

17

175532A1

DECAL

Maintenance Schedule

1шт.

18

139592A1

DECAL

Loader Arm Control; No Longer Available, Order 256547A1; See Figure 09-40, REF 4A

1шт.

19

139593A1

DECAL

Bucket Control; No Longer Available, Order 256548A1; See Figure 09-40, REF 3A

1шт.

20

139949A1

DECAL

Operating Capacity

1шт.

21

139728A1

DECAL

Tie Down

4шт.

22

140026A1

DECAL

Auxiliary Hydraulics; If Used

1шт.

23

175494A1

DECAL

Coupler

1шт.

24

175498A2

DECAL

Coupler

1шт.

25

175502A1

DECAL

Warning Before Leaving Seat

1шт.

26

175474A1

DECAL

Seat Bar Lowered/Seat Bar Raised

1шт.

E137262

DECAL

ROPS, EEC Certification; Models With Brown Trim; Not Illustrated

1шт.

184248A1

DECAL

ROPS, EEC Certification; Models With Gray Trim; Not Illustrated

1шт.
