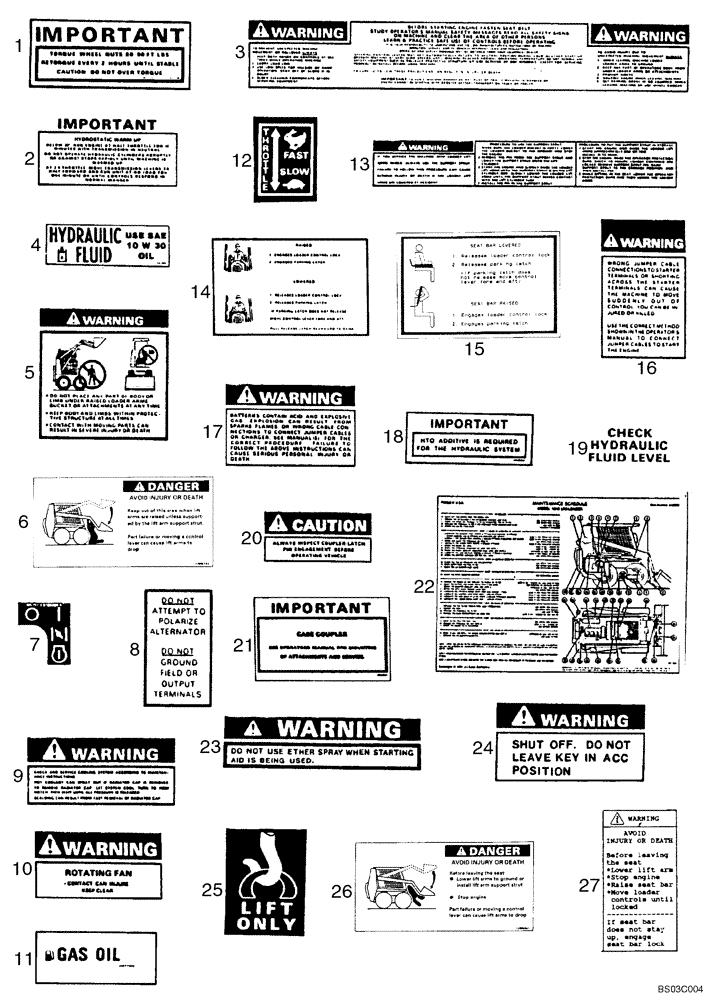

Запчасти Case 1840 (09-46) - DECALS - GERMAN (09) - CHASSIS/ATTACHMENTS

1

321-3617

DECAL

Important, Torque Wheel Nuts; German

2шт.

2

E84676

DECAL

Important, Hydrostatic Warm-Up; If Used; No Longer Available

1шт.

3

321-6621

DECAL

Warning, Before Starting Engine, Fasten Seat Belt

1шт.

4

E20164

DECAL

Hydraulic Fluid, Use SAE 15W/40 Oil; Replaced By 175510A2

1шт.

4

175510A2

DECAL

Hydraulic Fluid, Use SAE 15W/40 Oil; Replaces E20164, 175510A1

1шт.

5

321-6654

DECAL

Warning, Do Not Place Any Part Of Body Or Limb Under Raised Loader Arms; Replaced By 127529A1

1шт.

6

127529A1

DECAL

Danger, Keep Out Of This Area

1шт.

7

E99529

DECAL

Ignition Switch Pattern; Replaced By 355236A1; See Figure 09-40, REF 8

1шт.

8

321-3460

DECAL

Do Not Attempt To Polarize Alternator; If Used

1шт.

9

321-6795

DECAL

Warning, Check And Service Cooling System

1шт.

10

321-6791

DECAL

Warning, Rotating Fan; Replaced By 175504A1; See Figure 09-40, REF 9

2шт.

11

E84620

DECAL

Diesel Fuel; Replaced By 139879A1; See Figure 09-40, REF 1

1шт.

12

321-4470

DECAL

Throttle, Slow/Fast; Replaced By 178662A1; See Figure 09-40, REF 5

1шт.

12

321-4867

DECAL

Throttle, Slow/Fast; Models With Brown Trim; Replaced By 178662A1; See Figure 09-40, REF 5

1шт.

13

321-6794

DECAL

Warning, If You Service The Machine With The Loader Arms Raised

1шт.

14

D136508

DECAL

Raised/Lowered; Parking Latch And Operators Restraint Instructions; Replaced By 133521A1

1шт.

15

133521A1

DECAL

Seat Bar Lowered/Seat Bar Raised

1шт.

16

321-6725

DECAL

Warning, Wrong Jumper Cable Connections To Starter Teminals; Replaced By 175509A1; See Figure 09-40, REF 20

1шт.

17

321-6724

DECAL

Warning, Batteries Contain Acid And Explosive Gas

1шт.

18

E20018

DECAL

Important, HTO Additive Is Required For The Hydraulic System; If Used

1шт.

19

321-3619

DECAL

Check Hydraulic Fluid Level; Replaced By 259914A1; See Figure 09-40, REF 2

1шт.

20

321-6863

DECAL

Caution, Always Inspect Coupler - Latch Pin Engagement

1шт.

21

275311A1

DECAL

Important, Case Coupler; Replaces D136745

1шт.

22

8-80930

DECAL

Maintenance Schedule, Model 1840 Uni-Loader

1шт.

23

321-5423

DECAL

Warning, Do Not Use Ether Spray When Starting Aid Is Being Used; If Used

1шт.

24

E134524

DECAL

Warning, Shut Off. Do Not Leave In Acc Position

1шт.

25

321-5428

DECAL

Lift Only; Replaced By 139729A1; See Figure 09-40, REF 18

4шт.

26

127527A1

DECAL

Danger, Before Leaving The Seat

1шт.

27

141343A1

DECAL

Warning, Before Leaving The Seat

1шт.

E137262

DECAL

ROPS, EEC Certification; Models With Brown Trim; Not Illustrated

1шт.

184248A1

DECAL

ROPS, EEC Certification; Models With Gray Trim; Not Illustrated

1шт.

E99385

SWITCH ASSY

Ignition Switch; Not Illustrated

1шт.
