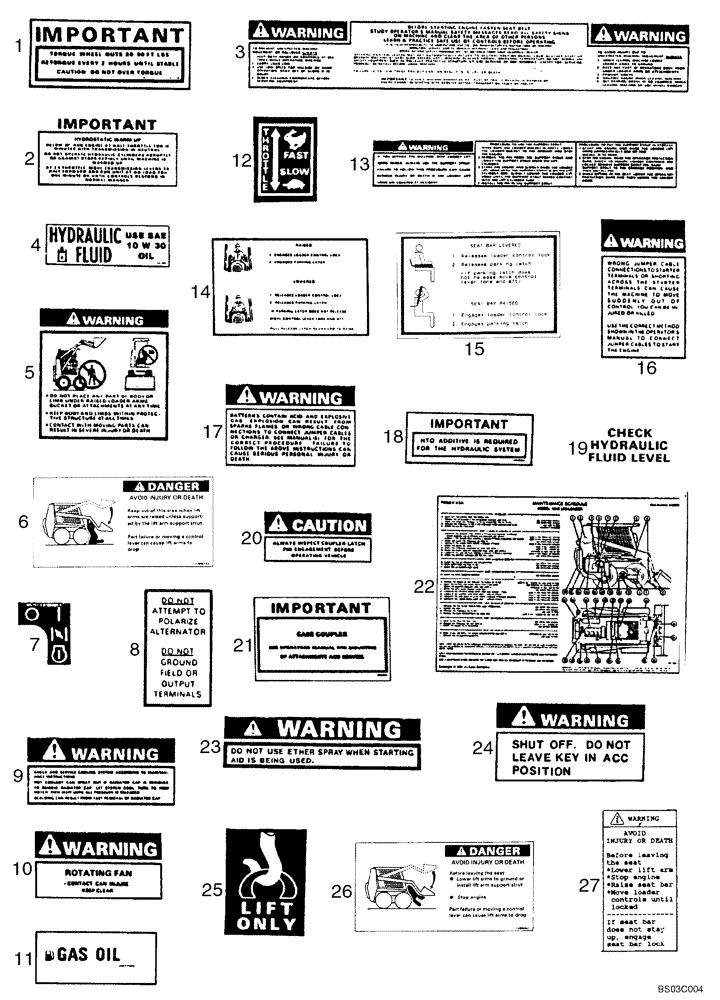

Запчасти Case 1840 (09-45) - DECALS - SPANISH (09) - CHASSIS/ATTACHMENTS

1

321-4077

DECAL

Important, Torque Wheel Nuts; Spanish

2шт.

2

321-4085

DECAL

Important, Hydrostatic Warm-Up; If Used

1шт.

3

321-6622

DECAL

Warning, Before Starting Engine, Fasten Seat Belt

1шт.

4

E20163

DECAL

Hydraulic Fluid, Use SAE 15W/40 Oil; Replaced By 175512A2

1шт.

4

175512A2

DECAL

Hydraulic Fluid, Use SAE 15W/40 Oil; Replaces E20163, 175512A1

1шт.

5

321-6653

DECAL

Warning, Do Not Place Any Part Of Body Or Limb Under Raised Loader Arms; Replaced By 127533A1

1шт.

6

127533A1

DECAL

Danger, Keep Out Of This Area

1шт.

7

E99528

DECAL

Ignition Switch Pattern; Replaced By 355236A1; See Figure 09-40, REF 8

1шт.

8

321-3437

DECAL

Do Not Attempt To Polarize Alternator; If Used

1шт.

9

321-6793

DECAL

Warning, Check And Service Cooling System

1шт.

10

321-6796

DECAL

Warning, Rotating Fan; Replaced By 175504A1; See Figure 09-40, REF 9

1шт.

11

E84619

DECAL

Diesel Fuel; Replaced By 139879A1; See Figure 09-40, REF 1

1шт.

12

321-4470

DECAL

Throttle, Slow/Fast; Replaced By 178662A1; See Figure 09-40, REF 5

1шт.

13

321-6797

DECAL

Warning, If You Service The Machine With The Loader Arms Raised

1шт.

14

D136746

DECAL

Raised/Lowered; Parking Latch And Operators Restraint Instructions; Replaced By 133523A1

1шт.

15

133523A1

DECAL

Seat Bar Lowered/Seat Bar Raised

1шт.

16

321-6723

DECAL

Warning, Wrong Jumper Cable Connections To Starter Teminals; Replaced By 175509A1; See Figure 09-40, REF 20

1шт.

17

321-6722

DECAL

Warning, Batteries Contain Acid And Explosive Gas

1шт.

18

E20017

DECAL

Important, HTO Additive Is Required For The Hydraulic System; If Used

1шт.

19

321-4075

DECAL

Check Hydraulic Fluid Level; Replaced By 259914A1; See Figure 09-40, REF 2

1шт.

20

321-6862

DECAL

Caution, Always Inspect Coupler - Latch Pin Engagement; Replaces D137186

1шт.

21

275313A1

DECAL

Important, Case Coupler; Replaces D136744

1шт.

22

175528A1

DECAL

Maintenance Schedule, Model 1840 Uni-Loader; Replaces H437485, 8-80930

1шт.

23

321-5424

DECAL

Warning, Do Not Use Ether Spray When Starting Aid Is Being Used; If Used

1шт.

24

E134522

DECAL

Warning, Shut Off. Do Not Leave In Acc Position; If Used

1шт.

25

321-5429

DECAL

Lift Only; Replaced By 139729A1; See Figure 09-40, REF 18

4шт.

26

127532A1

DECAL

Danger, Before Leaving The Seat

1шт.

27

141340A1

DECAL

Warning, Before Leaving The Seat

1шт.

E137262

DECAL

ROPS, EEC Certification; Models With Brown Trim; Not Illustrated

1шт.

184248A1

DECAL

ROPS, EEC Certification; Models With Gray Trim; Not Illustrated

1шт.
